Refresh the Seal Between the TGV and Engine

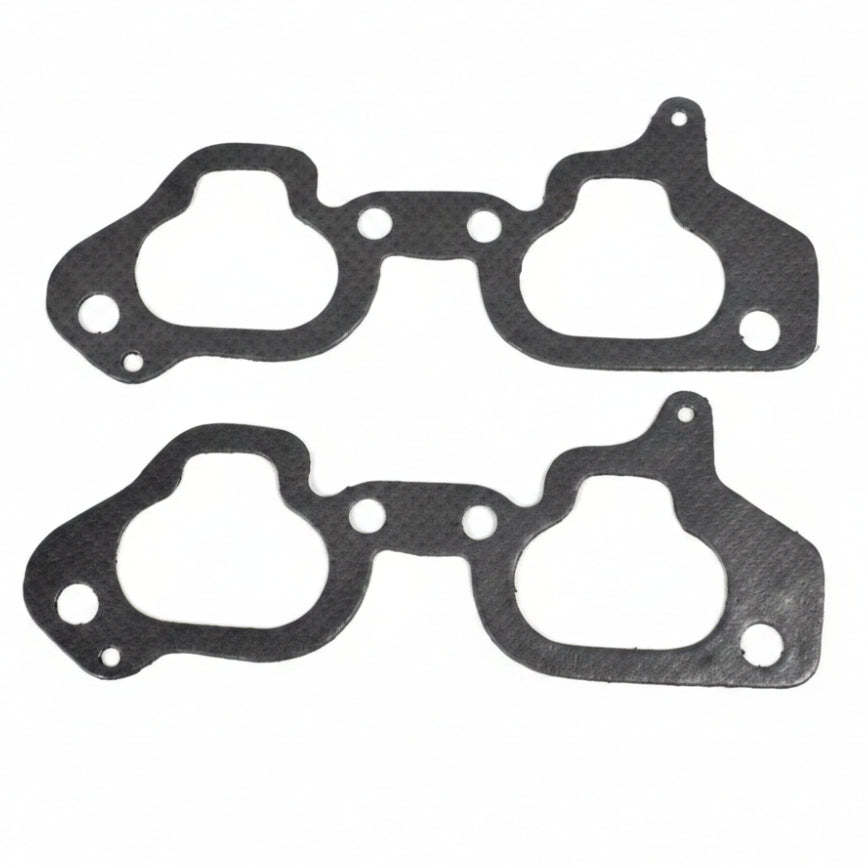

GrimmSpeed 032001 replaces the gaskets between the tumble generator valves and engine on compatible turbocharged Subaru applications. The pair provides both gaskets needed for one standard replacement.
Key Features
- Exact 032001 application for compatible Subaru WRX, STI, Forester XT, and Legacy GT models
- Sold as a matched pair for the two TGV to engine sealing locations
- Small guidance pin holes help hold each gasket in place during assembly
- Suitable for replacement whenever the TGV assemblies are removed
Fitment
| Years | Make | Model |
|---|---|---|
| 2002-2014 | Subaru | WRX |
| 2004-2020 | Subaru | STI |
| 2004-2013 | Subaru | Forester XT |
| 2005-2013 | Subaru | Legacy GT |
Specifications
| Detail | Value |
|---|---|
| Manufacturer | GrimmSpeed |
| Manufacturer Part Number | 032001 |
| Product Type | TGV to engine gasket pair |
| Application | Vehicle specific |
What's Included
- Two GrimmSpeed 032001 TGV to engine gaskets
About GrimmSpeed
GrimmSpeed develops performance and replacement components for Subaru vehicles. The 032001 gasket pair is shaped for the published TGV to engine applications listed above.
FAQ
What is the 032001?It is a pair of GrimmSpeed gaskets for the connection between the TGV assemblies and engine on the listed Subaru applications.
How many gaskets are included?Two gaskets are included.
When should these gaskets be replaced?Replace them whenever the TGV assemblies are removed and the sealing surfaces are separated.
Does this pair fit a 2015 or newer WRX?No. The published WRX fitment ends with the 2014 model year.
Does this pair fit a 2021 STI?No. The manufacturer publishes STI fitment through the 2020 model year.
Will these gaskets fit every Subaru Forester?No. They fit the published 2004-2013 Forester XT applications.
Will these gaskets fit every Subaru Legacy?No. They fit the published 2005-2013 Legacy GT applications.
Are special tools required to position the gaskets?A small socket can be used to press each gasket over the guidance pins during installation.
Installation Instructions
- Remove the intake manifold and TGV assemblies according to the vehicle service procedure.
- Remove the old gaskets and clean the mating surfaces without damaging them.
- Align each new gasket with the guidance pins.
- Use a small socket to press the deliberately tight pin holes over the guidance pins.
- Confirm that both gaskets remain flat and properly seated.
- Reinstall the TGV assemblies and intake manifold to the vehicle service specifications.
