-15%
GSC P-D 02-05 Subaru WRX EJ205 S2 Cams 272/272 Billet GSC Power Division GSC7020S2
Click to zoom in

GSC P-D 02-05 Subaru WRX EJ205 S2 Cams 272/272 Billet

GSC7020S2
GSC7020S2
Camshafts
15 Units In Stock - Ships Next Business Day
$ 1,097.25 $ 932.66
$ 932.66

SKU: 7020S2 | UPC: GSC7020S2

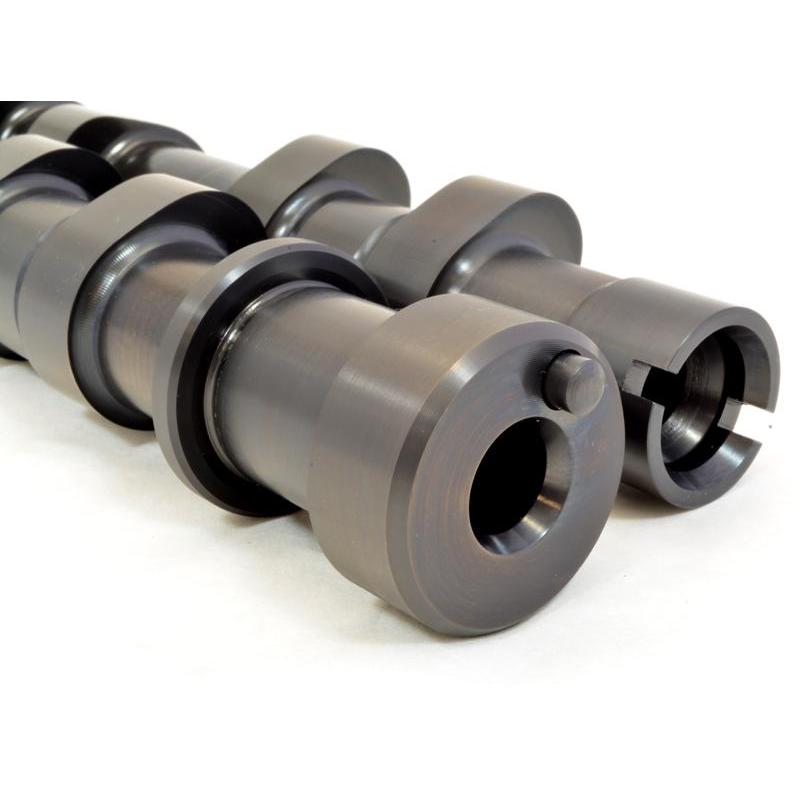

GSC Power-Division 02-05 Subaru WRX EJ205 S2 Cams 272/272 Billet

GSC Power-Division S2 camshafts are precision billet units designed for the 2002-2005 Subaru Impreza WRX EJ205 engine and 2005 Saab 9-2X Aero. These cams feature 272-degree duration on both intake and exhaust lobes with 9.80mm lift to deliver strong top-end power responsive throttle response and seamless integration with stock valvetrain for dependable daily driving and track performance. Built from high-strength materials they handle extreme RPM and boost levels while maintaining idle quality and turbo spool.

Key Features

  • Billet 8620 cores: High-strength alloy withstands extreme RPM and boost levels beyond stock limits
  • Nitrided surface: Hardened finish cuts friction improves lobe life and maintains cam profile accuracy
  • 272° intake duration 9.80mm lift: Boosts airflow for power above 6500 RPM without sacrificing idle quality
  • 272° exhaust duration 9.80mm lift: Enhances scavenging for better turbo spool and mid-range torque
  • Direct OEM replacement: Bolts in using factory cam caps gears and timing components

Product Notes

  • Adjust valve lash to intake 0.008-0.010 inch exhaust 0.010-0.012 inch after installation
  • Supports stock valve springs up to 350 wheel horsepower
  • Packaged in protective foam-lined box weighs 4.8 lbs ships in 19 x 5 x 5 inch dimensions

Installation Notes

  • Professional installation recommended.
  • Degree cams after lash adjustment for peak performance
  • Compatible with OEM camshaft caps gears and timing belt setup

This Part Fits

Year Make Model Submodel
2002-2005 Subaru Impreza WRX
2005 Saab 9-2X Aero

Why Choose GSC Power-Division?

  • Track-proven designs from drag and rally applications
  • USA-manufactured with micron-level tolerances
  • Dyno-tested profiles for consistent power delivery

Frequently Asked Questions

  • Q: Will these cams fit 2004-2007 STI EJ257?
    A: No these are engineered exclusively for EJ205 WRX heads STI uses different primary drive geometry
  • Q: What material and treatment do the lobes receive?
    A: Billet 8620 steel cores with full nitride hardening for wear resistance and longevity
  • Q: What warranty coverage applies?
    A: Limited lifetime warranty against manufacturing defects when installed by certified shop

Shipping & Handling

  • Method: UPS Ground or FedEx
  • Availability: In stock - ships same or next business day
  • Packaging: Foam-lined box 19 x 5 x 5 inches
  • Weight: 4.8 lbs
