A Complete Connector Kit for the Bosch DBW Pedal Assembly

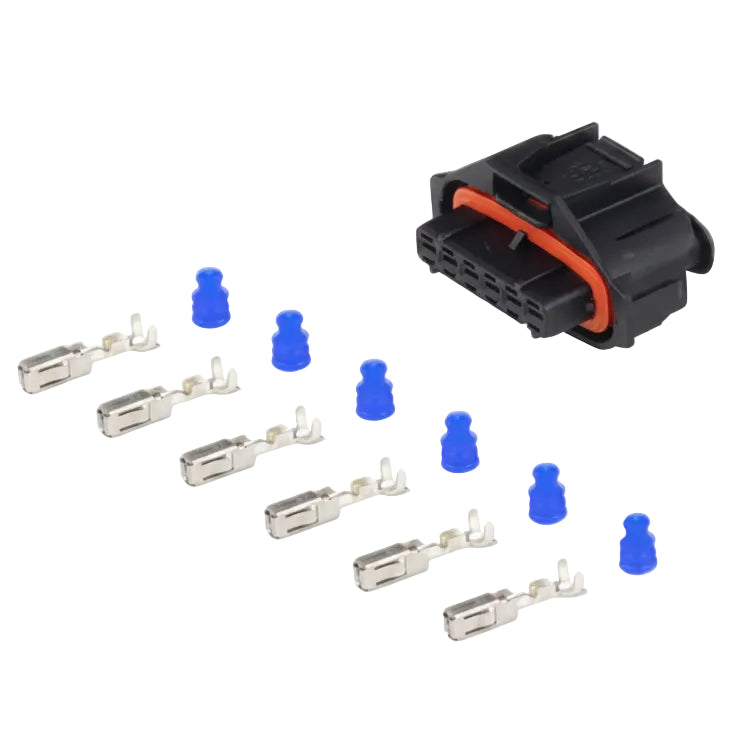

This is the Haltech connector kit built specifically to suit the Bosch drive-by-wire (DBW) pedal assembly, part number HT-011900. The kit includes the connector housing, pins, and seals needed for a complete, weather-sealed wiring connection to the pedal assembly.
Key Features
- Built specifically to suit the Bosch DBW pedal assembly (HT-011900).
- Includes connector, pins, and seals for a complete weather-sealed connection.
- Six pins and six seals included to match the pedal assembly's pinout.
Fitment
| Application | Requirements |
|---|---|
| Bosch DBW pedal assembly, Haltech part number HT-011900 | Requires a compatible crimping tool for pin installation, sold separately |
Specifications
| Detail | Value |
|---|---|
| Brand | Haltech |
| Suits | Bosch DBW Pedal Assembly (HT-011900) |
| Includes | 1 connector, 6 pins, 6 seals |
What's Included
- One connector housing
- Six pins
- Six seals
About Haltech
Haltech designs engine management systems, sensors, and wiring components for performance and race applications, offering matching connector kits like this one to complete a clean drive-by-wire pedal installation.
FAQ
What pedal assembly does this connector kit fit?
The Bosch DBW pedal assembly, Haltech part number HT-011900.
How many pins and seals are included?
Six pins and six seals.
Is the pedal assembly included?
No, this listing is for the connector kit only. The Bosch DBW pedal assembly is sold separately.
What tool is needed to install the pins?
A compatible crimping tool, sold separately.
Are the seals weatherproof?
Yes, the included seals are designed to provide a weather-sealed connection at each pin.
Can this kit be used to repair a damaged pedal connector?
Yes, it is commonly used to replace a damaged or corroded factory pedal connector.
Installation Instructions
- Strip the wiring to the correct length for the crimp pins.
- Thread a seal onto each wire before crimping.
- Crimp each pin onto its corresponding wire using a compatible crimping tool.
- Insert each crimped pin and seal into the correct cavity of the connector housing, confirming proper orientation.
- Connect the assembled connector to the Bosch DBW pedal assembly.
- Verify proper throttle pedal operation after installation.
