A Complete Connector Kit for Bosch Electronic Throttle Bodies
This is the Haltech connector kit built to suit Bosch electronic throttle bodies, matching Haltech part numbers HT-011800, HT-011801, HT-011802, and HT-011803. The kit includes the connector housing, pins, and seals needed for a complete, weather-sealed wiring connection to the throttle body.
Key Features
- Built to suit Bosch electronic throttle bodies (HT-011800, HT-011801, HT-011802, HT-011803).
- Includes connector, pins, and seals for a complete weather-sealed connection.
- Six pins and six seals included to match the throttle body's pinout.
Fitment
| Application | Requirements |
|---|---|
| Bosch electronic throttle bodies, Haltech part numbers HT-011800, HT-011801, HT-011802, HT-011803 | Requires a compatible crimping tool for pin installation, sold separately |
Specifications
| Detail | Value |
|---|---|
| Brand | Haltech |
| Suits | Bosch Electronic Throttle Bodies (HT-011800/01/02/03) |

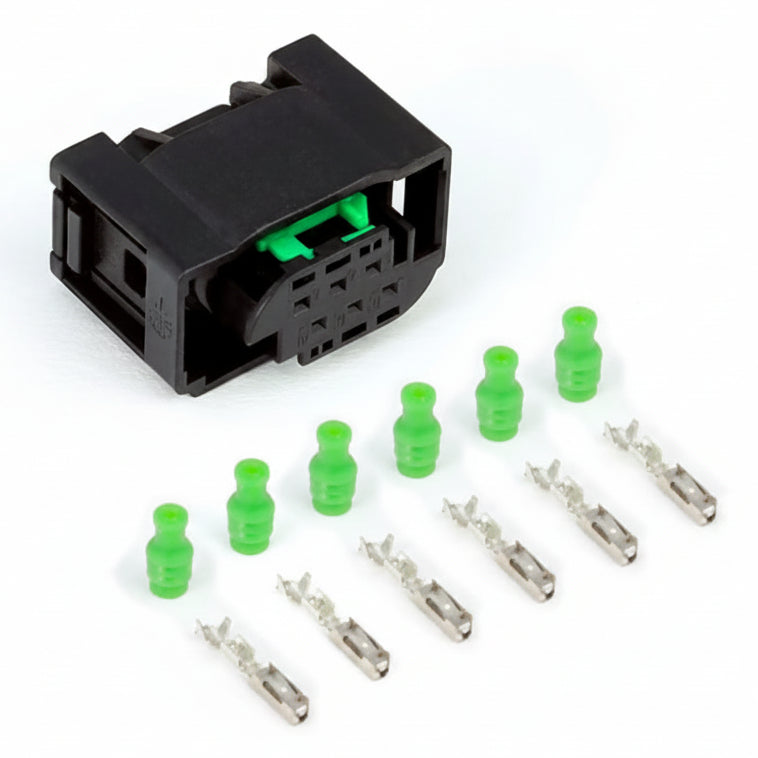

| Includes | 1 connector, 6 pins, 6 seals |
What's Included
- One connector housing
- Six pins
- Six seals
About Haltech
Haltech designs engine management systems, sensors, and wiring components for performance and race applications, offering matching connector kits like this one to complete a clean electronic throttle body installation.
FAQ
What throttle bodies does this connector kit fit?
Bosch electronic throttle bodies matching Haltech part numbers HT-011800, HT-011801, HT-011802, and HT-011803.
How many pins and seals are included?
Six pins and six seals.
Is the throttle body included?
No, this listing is for the connector kit only. The throttle body is sold separately.
What tool is needed to install the pins?
A compatible crimping tool, sold separately.
Are the seals weatherproof?
Yes, the included seals are designed to provide a weather-sealed connection at each pin.
Can this kit be used to repair a damaged throttle body connector?
Yes, it is commonly used to replace a damaged or corroded factory throttle body connector.
Installation Instructions
- Strip the wiring to the correct length for the crimp pins.
- Thread a seal onto each wire before crimping.
- Crimp each pin onto its corresponding wire using a compatible crimping tool.
- Insert each crimped pin and seal into the correct cavity of the connector housing, confirming proper orientation.
- Connect the assembled connector to the electronic throttle body.
- Verify proper throttle body operation after installation.
