A Direct Replacement Connector for Bosch Style Injectors and Sensors

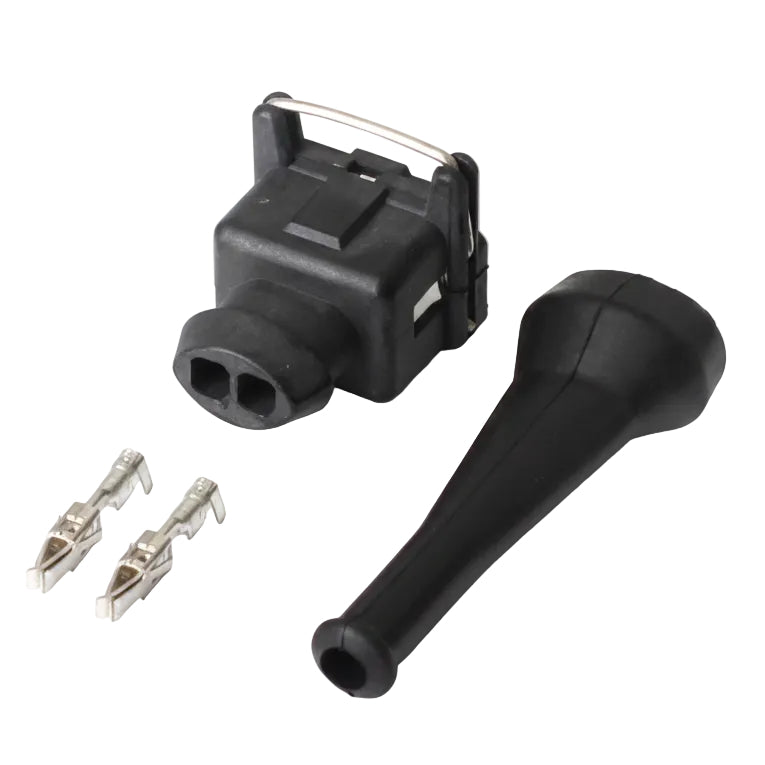

This is the Haltech Bosch EV1 (square) 2 pin junior timer female connector, sold as plug and pins only, used to wire or repair the connection to Bosch style fuel injectors and several other Bosch-pattern sensors. It includes a pack of 2 pins for a complete connection.
Key Features
- Bosch EV1 (square) 2 pin junior timer female connector.
- Fits Bosch style fuel injectors and other Bosch-pattern 2 pin components.
- Includes a pack of 2 pins for a complete connection.
Fitment
| Application | Requirements |
|---|---|
| Bosch style fuel injectors, oil temperature sensors, knock sensors, HEC coils, and Bosch BAC/PWM idle air control valves using an EV1 junior timer connector | Requires a crimping tool for pin installation, sold separately |
Specifications
| Detail | Value |
|---|---|
| Brand | Haltech |
| Connector Style | Bosch EV1 (square), 2 pin junior timer, female |
| Includes | Connector housing and 2 pins |
What's Included
- One Bosch EV1 (square) 2 pin junior timer female connector housing
- Pack of 2 matching pins
About Haltech
Haltech designs engine management systems, sensors, and wiring components for performance and race applications, stocking commonly needed Bosch-pattern connectors like this one to support builds using Bosch style injectors and sensors.
FAQ
What components use this connector?
Bosch style fuel injectors, along with several Bosch-pattern sensors and components using the same EV1 junior timer connector style.
Is this the male or female connector?
Female.
Are pins included?
Yes, a pack of 2 pins is included.
What tool is needed to install the pins?
A compatible crimping tool, sold separately.
Can this be used to repair a damaged injector connector?
Yes, it is commonly used to replace a damaged or corroded factory injector connector.
Is wire included with this connector?
No, this listing includes the connector housing and pins only.
Installation Instructions
- Strip the wiring to the correct length for the crimp pins.
- Crimp each pin onto its corresponding wire using a compatible crimping tool.
- Insert each crimped pin into the correct cavity of the connector housing, confirming proper orientation.
- Connect the assembled connector to the injector or sensor.
- Verify proper operation after installation.
