Plug and Play CAN Bus Connection for Haltech Elite ECUs

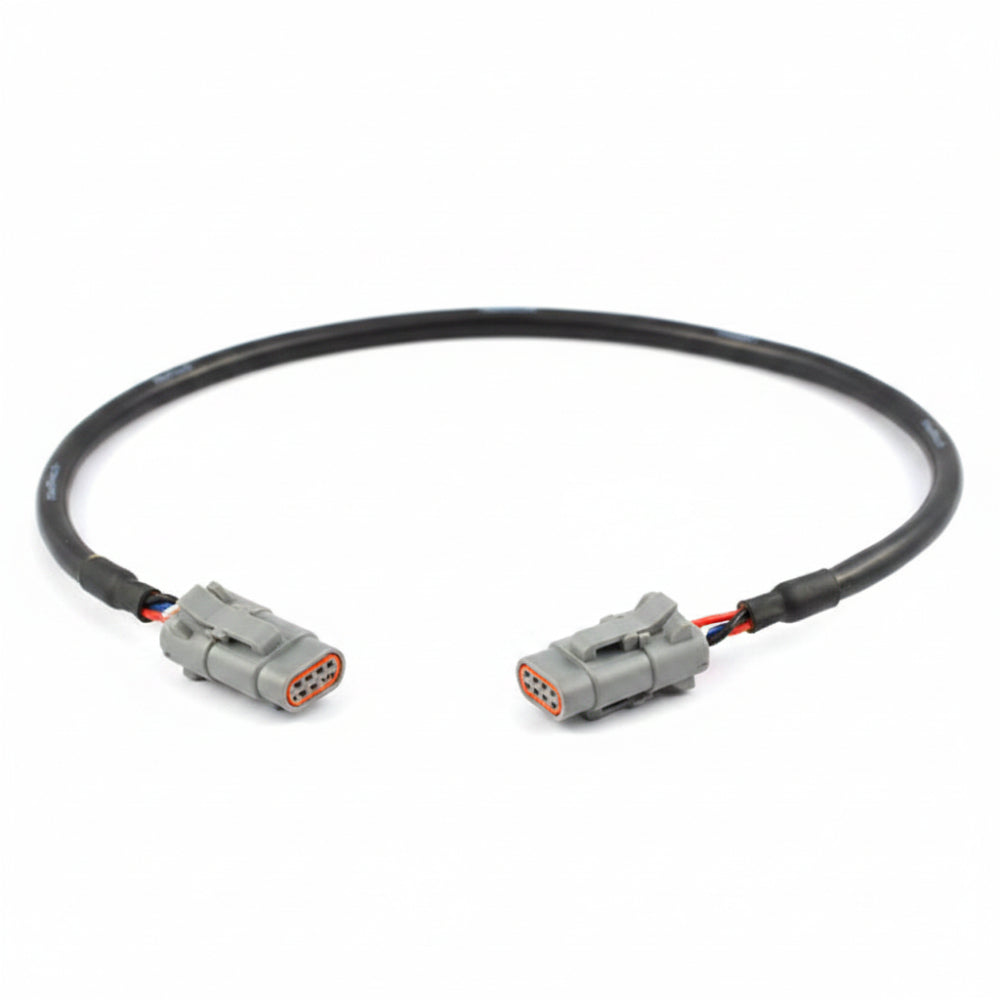

The Haltech Elite CAN Cable connects Haltech Elite series CAN devices using DTM-4 connectors on both ends. This 300mm (12 in.) cable provides a direct, plug and play connection between an Elite ECU CAN port or Elite ECU harness CAN connector and compatible CAN devices such as CAN hubs, dashboards, and expansion modules.
Key Features
- DTM-4 to DTM-4 connector configuration on both ends
- 300mm (12 in.) cable length
- Direct plug and play compatible with Elite ECU CAN ports and CAN harness connectors
- Supports Haltech's 1 Mbit/s CAN bus protocol
Fitment
This is a universal Haltech Elite series accessory. It fits any Haltech Elite ECU CAN port or Elite ECU harness CAN connector and is not vehicle specific.
Specifications
| Detail | Value |
|---|---|
| Manufacturer part number | HT-130022 |
| Connector type | DTM-4 to DTM-4 |
| Length | 300mm (12 in.) |
| Compatible ECU series | Haltech Elite |
What's Included
- 1 CAN connection cable
About Haltech
Haltech designs and manufactures programmable engine management systems and CAN bus expansion products for performance and motorsport applications.
FAQ
What connectors does this cable use?It uses DTM-4 connectors on both ends of the cable.
What is this cable used for?It connects Haltech Elite series CAN devices, such as CAN hubs and expansion modules, to an Elite ECU CAN port or CAN harness connector.
Is this a plug and play cable?Yes, it is direct plug and play compatible with an Elite ECU CAN port or Elite ECU harness CAN connector.
What CAN bus speed does this cable support?It supports Haltech's standard 1 Mbit per second CAN bus protocol.
Can this cable be used with non-Elite Haltech ECUs?This cable uses the DTM-4 connector standard used on Haltech Elite series products, so compatibility with other Haltech ECU series should be confirmed against the specific ECU's CAN connector type.
What length is this cable?This cable is 300mm, or approximately 12 inches, in length.
Can multiple CAN devices be connected using this cable?Yes, when combined with a CAN hub, multiple CAN devices can be connected to a single Elite ECU CAN port.
Does this cable require any additional termination resistors?CAN bus networks require termination resistors at both ends, and installers should confirm resistor placement per Haltech's CAN wiring documentation for the specific setup.
Installation Instructions
- Identify the Elite ECU CAN port or Elite ECU harness CAN connector to be used.
- Connect one DTM-4 end of the cable to the ECU CAN port or harness connector.
- Connect the other DTM-4 end to the CAN device, hub, or expansion module.
- Confirm CAN bus termination resistor placement follows Haltech's wiring guidance for the installation.
- Power on the system and confirm CAN communication in the tuning software.
