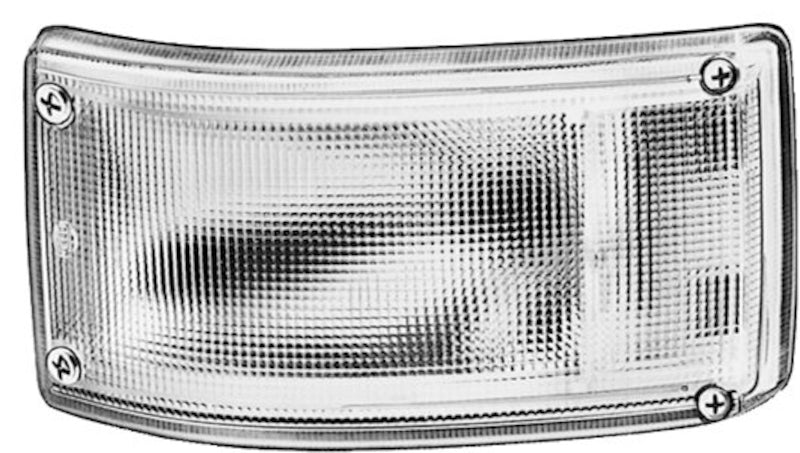

SAE-Approved Wraparound Reverse Lamp with ECE Certification for RVs, Motorhomes, and Commercial Vehicles
The Hella 005603067 is a 5603 Series wraparound reverse lamp engineered for reliable backup illumination on recreational vehicles, motorhomes, and commercial trailers. Part number 005603067 features a rectangular wraparound housing design that wraps the lens around both the front face and sides of the unit, delivering a wider illumination angle than flat-faced replacement lamps. The white crystal-clear lens is built for maximum light output from the included P21W halogen bulb position.
Hella 005603067 carries dual certification: ECE-R23 approval and SAE backup lamp approval, making it compliant with both European and North American lighting standards. The E1 8770 type mark confirms the unit has passed the required photometric and durability tests for use in road traffic. This is a genuine Hella replacement unit, not a generic alternative.
The 005603067 is designed for horizontal mounting on the right side of a vehicle and uses blade terminal connections for straightforward wiring integration with standard 12V or 24V electrical systems.
Wraparound Design Advantage
The wraparound housing geometry of 005603067 provides side-angle visibility in addition to direct rear illumination. When reversing in tight campground or loading dock situations, this wider light spread helps illuminate obstacles that would fall outside the beam pattern of a flat-face lamp of equivalent wattage. The black ABS housing provides a clean, finished appearance and resists the UV degradation that causes whitening and hazing in lower-quality housings.
What's Included
- 1 Hella 005603067 5603 Series wraparound reverse lamp (housing only)
- Note: P21W bulb is NOT included and must be purchased separately
Installation Instructions
- Disconnect the vehicle battery before beginning any lighting work.
- Remove the existing reverse lamp by unscrewing the mounting fasteners and disconnecting the wiring connector.
- Install a P21W bulb into the 005603067 socket before mounting (bulb not included).
- Connect the blade terminal wiring connector of 005603067 to the vehicle's reverse light circuit.
- Position the lamp housing in the mounting location with the lens facing rearward and oriented for right-side installation.
- Secure with appropriate fasteners for the mounting surface.
- Reconnect the battery, shift to reverse, and verify illumination before sealing any access panels.
- Confirm the lamp is mounted with the illuminating area between 250 mm and 1,200 mm above the road surface per ECE-R23 requirements.
Specifications
| Attribute | Detail |
|---|---|
| MPN | 005603067 |
| UPC | 760687819585 |
| Brand | Hella |
| Series | 5603 |
| Light Function | Reverse (backup) |
| Lens Color | Crystal clear (white) |
| Housing Color | Black |
| Housing Style | Wraparound rectangular |
| Bulb Type | P21W (not included) |
| Light Technology | Halogen |
| Voltage | 12V / 24V |
| Connection Type | Blade terminal |
| Mounting Type | Horizontal surface mount |
| Fitting Position | Right |

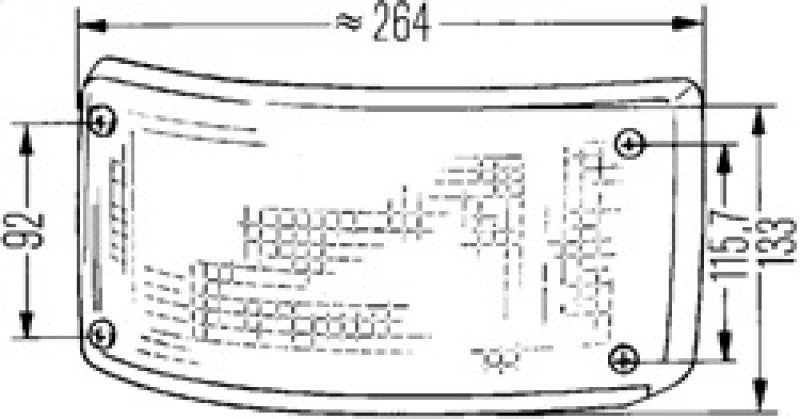

| Length | 264 mm (10.39 in) |
| Width | 133 mm (5.24 in) |
| Type Approval | ECE-R23, SAE |
| Inspection Mark | E1 8770 |
| Quantity | 1 |
Frequently Asked Questions
Does Hella 005603067 include a bulb?
No. The 005603067 is sold as a lamp housing only. A P21W bulb must be purchased separately and installed before mounting the unit.
What bulb does the Hella 005603067 use?
Part number 005603067 uses a P21W single-contact bayonet base halogen bulb. Hella and other major bulb manufacturers offer compatible P21W replacement bulbs.
Is 005603067 approved for road use in the United States?
Yes. The 005603067 carries SAE backup lamp approval as well as ECE-R23 certification, covering both North American and European road compliance requirements.
Can 005603067 be used on both 12V and 24V systems?
Yes. The lamp is designed for both 12V and 24V electrical systems. Install the appropriate P21W voltage bulb for your system voltage.
Is this lamp for the left side or right side of the vehicle?
The 005603067 is designed for right-side installation. Verify fitment position requirements for your vehicle application before ordering.
What type of vehicles is 005603067 designed for?
The Hella 5603 Series reverse lamp is designed for RVs, motorhomes, and commercial trailers. It functions as a direct replacement for aging or damaged reverse lamps in these applications.
What mounting style does 005603067 use?
The 005603067 uses horizontal surface mounting. Mounting hardware requirements depend on the vehicle's existing mounting provisions.
Where can I find installation instructions for 005603067?
Hella provides technical documentation through their website at hella.com. Installation guidance is also available from qualified automotive or RV electricians familiar with Hella products.
