HKS R Type Intercooler & Piping Kit for 2023-2026 Honda Civic Type R

HKS
HKS13001-AH007
4957266656488
Intercoolers
Out of stock
$ 1,550.00

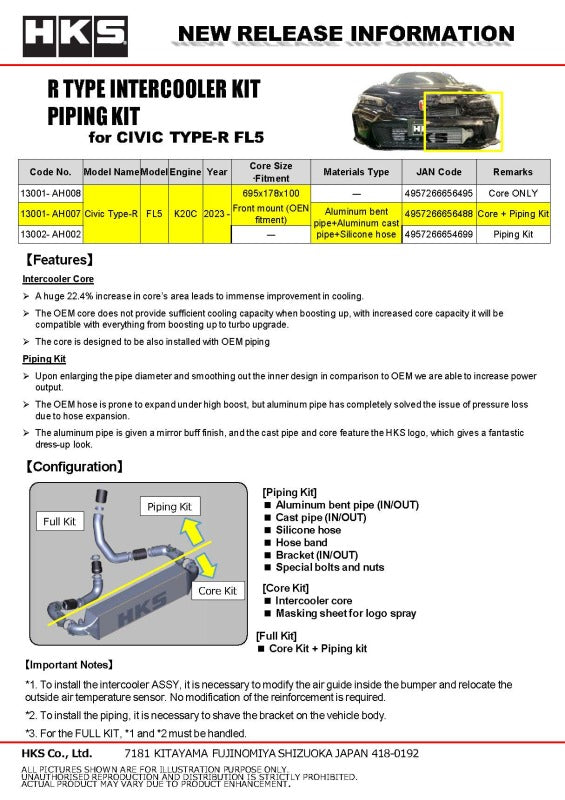

HKS 13001-AH007 Intercooler Upgrade for Civic Type R

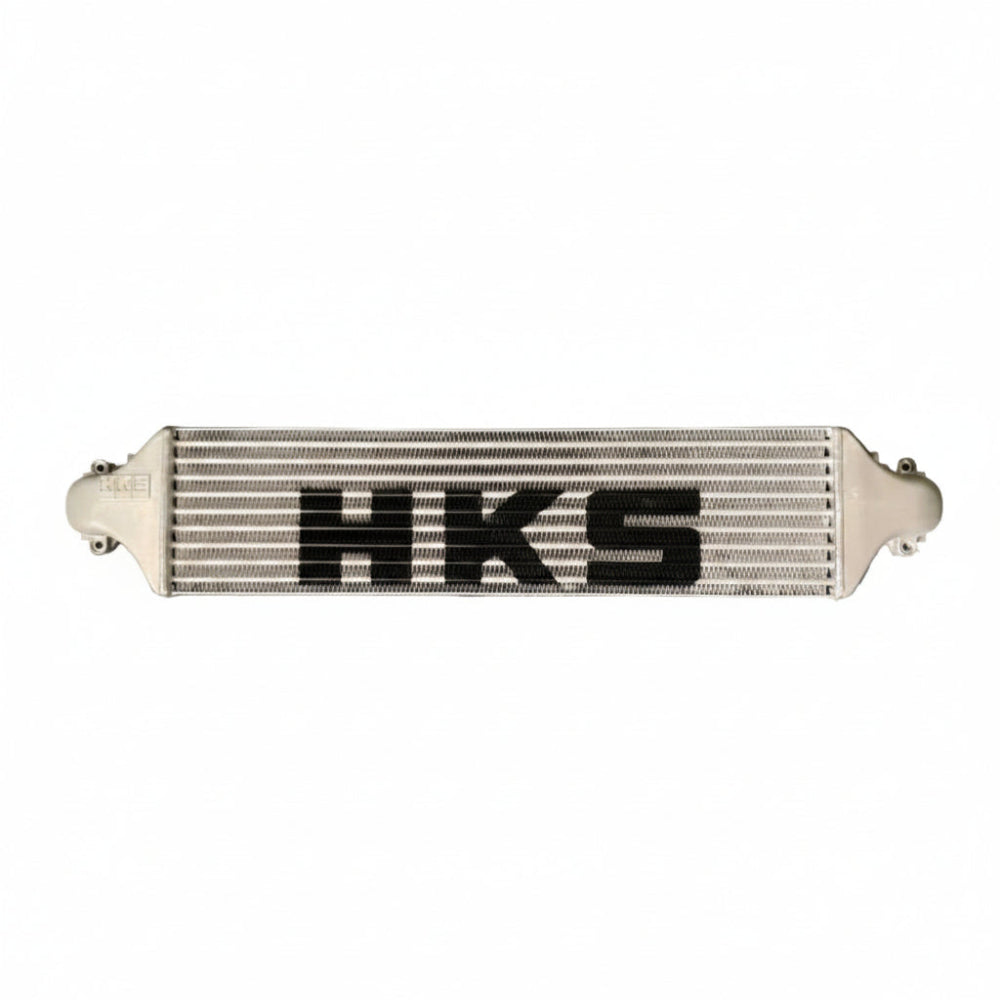

HKS 13001-AH007 is a full R Type intercooler and piping kit for the 2023-2026 Honda Civic Type R FL5 with the K20C engine. Its larger 695 x 178 x 100 mm core and dedicated piping replace the factory charge air path for a vehicle specific installation.

Key Features

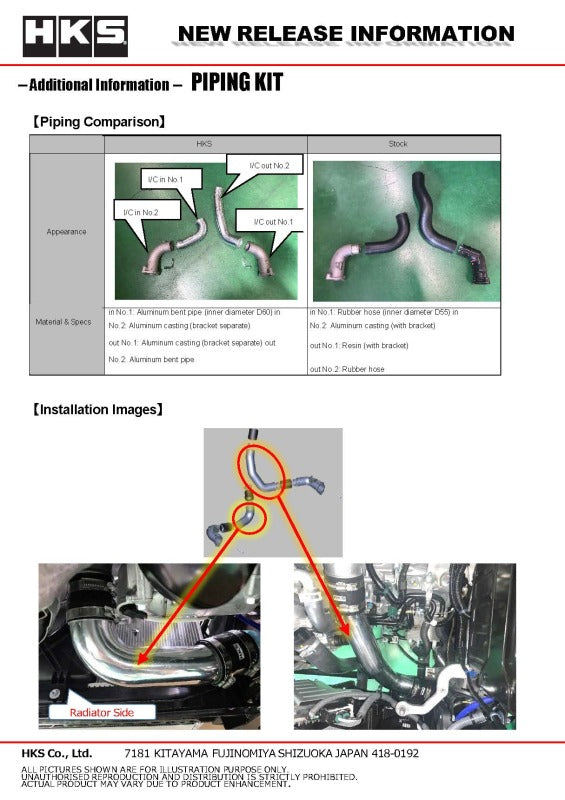

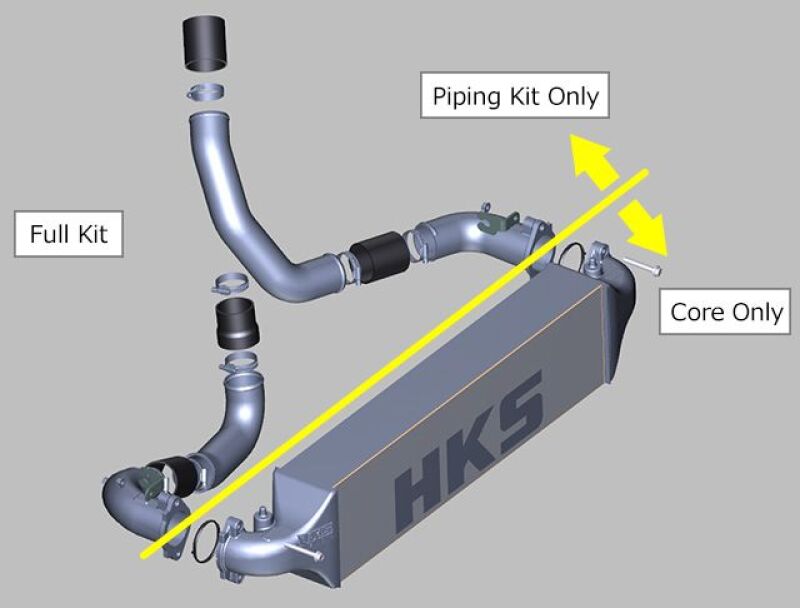

  • HKS 13001-AH007 combines an intercooler assembly with inlet and outlet piping

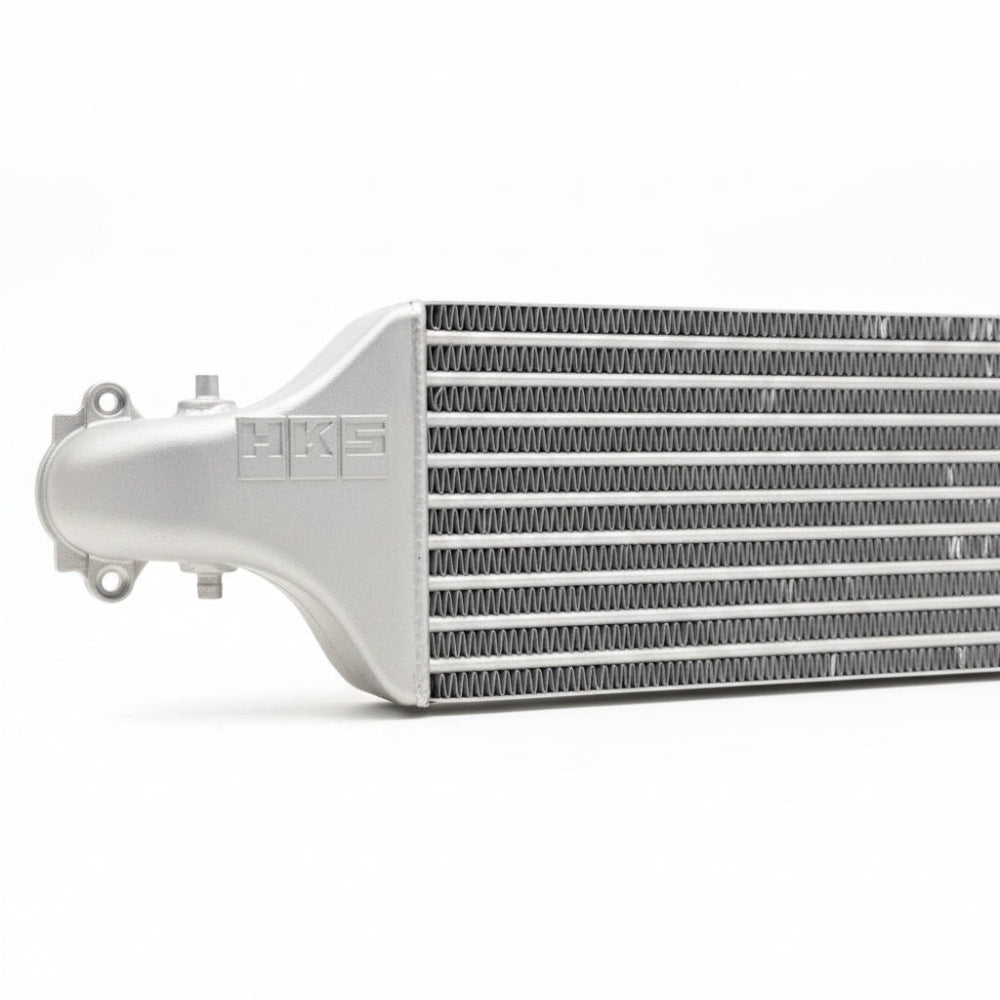

  • 695 x 178 x 100 mm core with 10 fins and 9 tubes

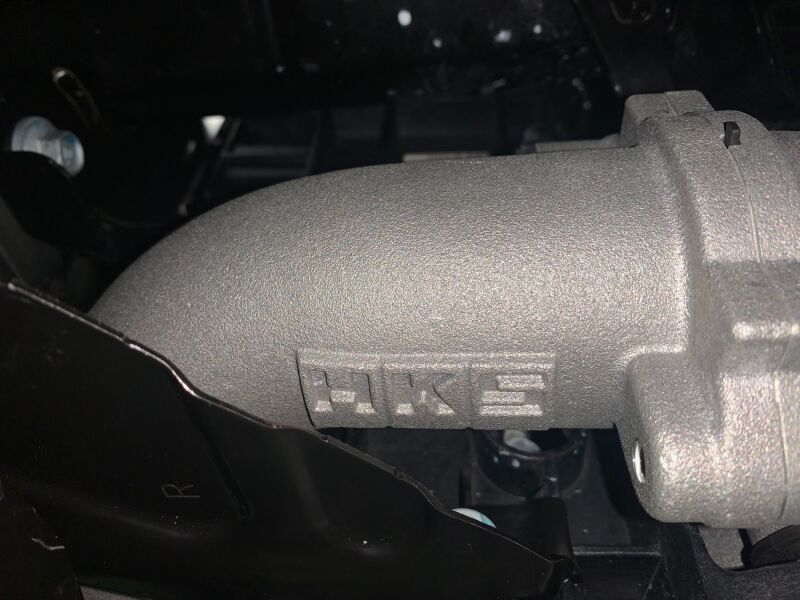

  • Aluminum cast tanks with aluminum inlet and outlet piping components
  • Designed only for Honda Civic Type R FL5 applications with the K20C engine
  • No reinforcement modification is required

Fitment

Vehicle Application Position Fitment Notes
2023-2026 Honda Civic Type R FL5 Front K20C engine. HKS manual specifies September 2022 onward production.

Specifications

Detail Value
Part Number 13001-AH007
Product Type R Type intercooler and piping kit
Core Size 695 x 178 x 100 mm
Core Construction 10 fins and 9 tubes
Tank Material Aluminum cast
Inlet Pipe No. 1 Aluminum bent pipe, 60 mm inner diameter

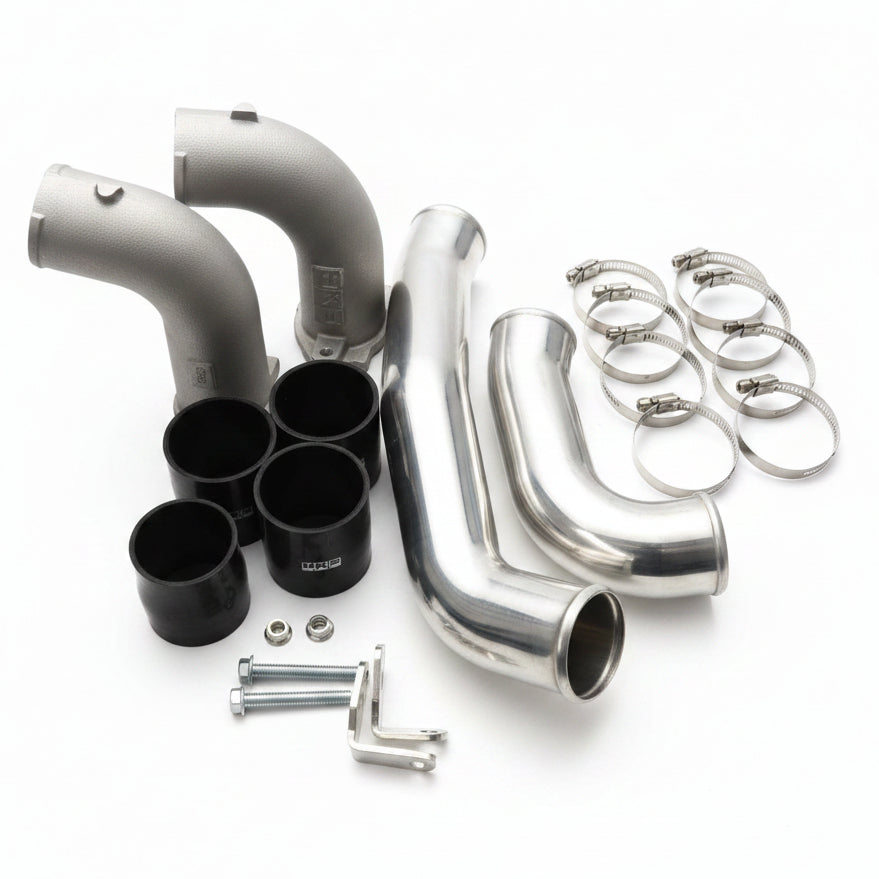

What's Included

  • One intercooler assembly
  • One HKS logo spray paint stencil
  • One intercooler inlet pipe No. 1
  • One intercooler inlet pipe No. 2
  • One intercooler outlet pipe No. 1
  • One intercooler outlet pipe No. 2
  • One inlet stay and one outlet stay
  • Two M8 flange bolts and two M8 flange nuts
  • One 55 to 60 mm silicone hose and three 60 mm silicone hoses
  • Eight hose bands
  • One installation manual and one operation manual

About HKS

HKS develops performance products for turbocharged and naturally aspirated vehicles. HKS 13001-AH007 is engineered as a vehicle specific cooling upgrade for the FL5 Civic Type R.

FAQ

Which Civic Type R does this kit fit?

This kit fits the Honda Civic Type R FL5 with the K20C engine. The HKS manual specifies September 2022 onward production.

Does this kit include charge piping?

Yes. The full kit includes four intercooler pipes, stays, silicone hoses, hose bands, and the intercooler assembly.

What core size does the kit use?

The intercooler core measures 695 x 178 x 100 mm and uses a 10 fin, 9 tube construction.

Is reinforcement modification required?

No. HKS states that reinforcement modification is not required for the intercooler assembly.

Are any vehicle modifications required?

Installation requires modification of the air guide inside the bumper, outside temperature sensor relocation, and shaving of the vehicle body bracket for the piping.

Are stock parts reused during installation?

The installation procedure reuses specified stock stays, bolts, washers, grommets, collars, lower cushions, and serviceable intercooler hose seals.

What should be checked after installation?

Check pipe and hose routing, fastener tightness, clearance, air leaks, interference noise, and smooth engine operation before reinstalling the bumper.

Who should install this kit?

HKS specifies professional installation using the vehicle maintenance manual and the included instructions.

Installation Instructions

  1. Have HKS 13001-AH007 installed by a qualified professional after confirming the FL5 Civic Type R application.
  2. Disconnect the battery negative terminal and remove the front bumper, covers, and stock intercooler components according to the vehicle service procedure.
  3. Modify the specified bumper air guide sections, relocate the outside temperature sensor, and shave the designated vehicle body bracket.

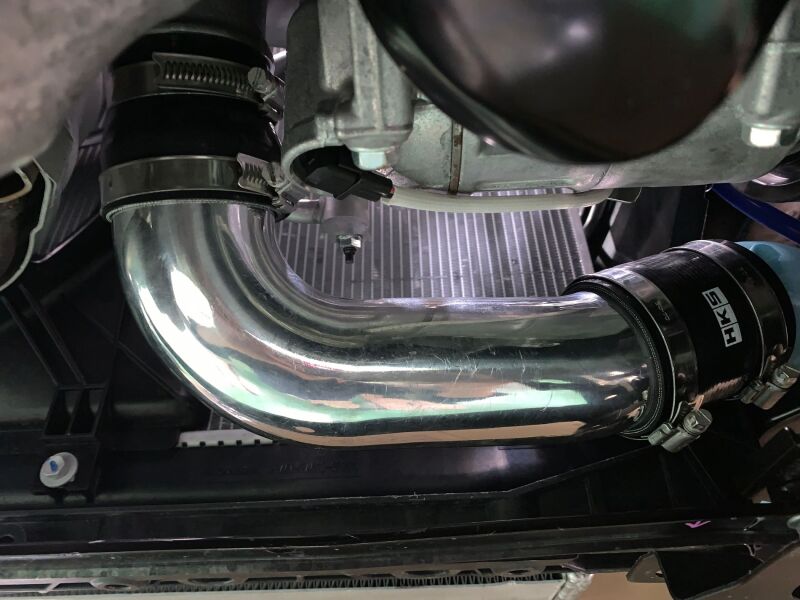

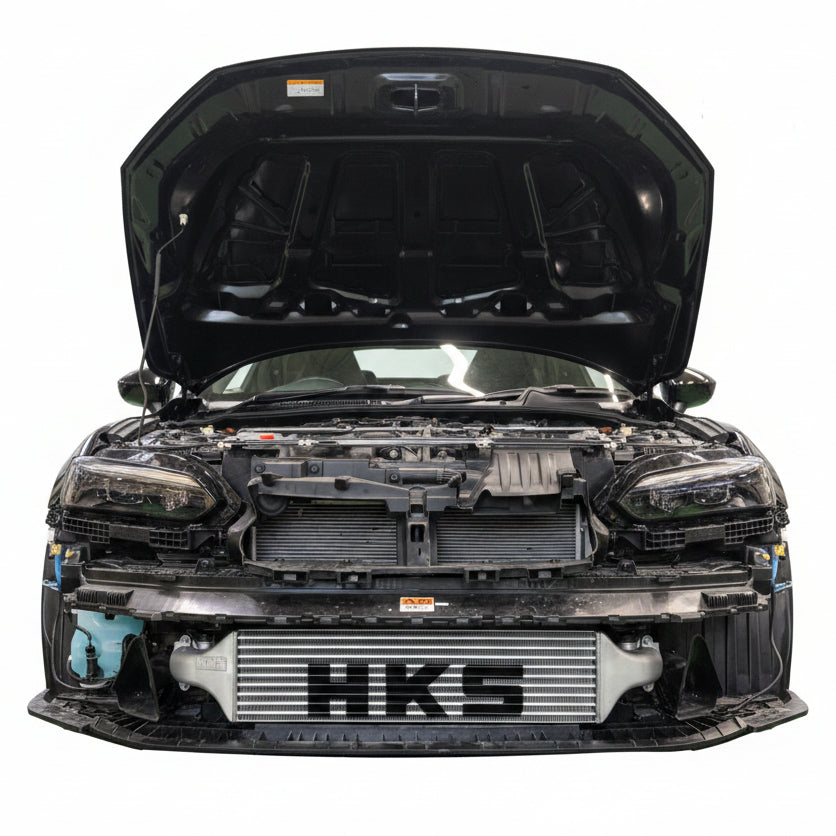

  4. Install the intercooler assembly, pipes, stays, silicone hoses, and hose bands as shown in the HKS instructions.
  5. Confirm routing, clearances, fastener tightness, and hose band security before reconnecting the battery.
  6. Start the engine, inspect for air leaks or interference, then reinstall the removed stock components and bumper.
