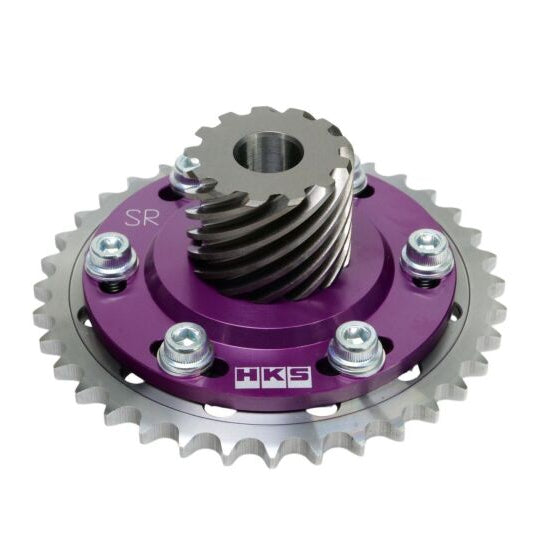

HKS 22004-AN004 Cam Sprocket - Front View

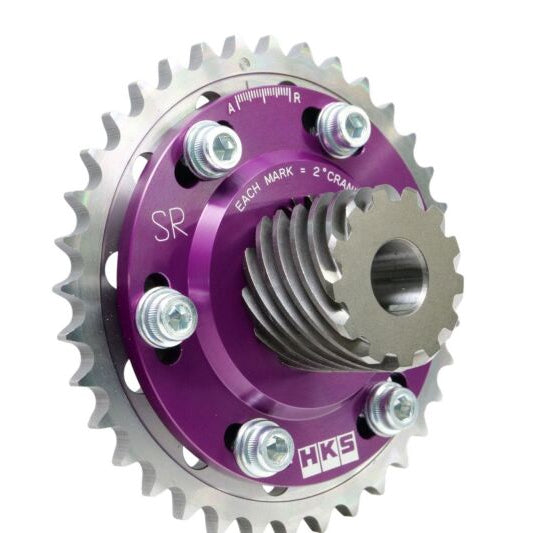

HKS 22004-AN004 Cam Sprocket - Side Profile

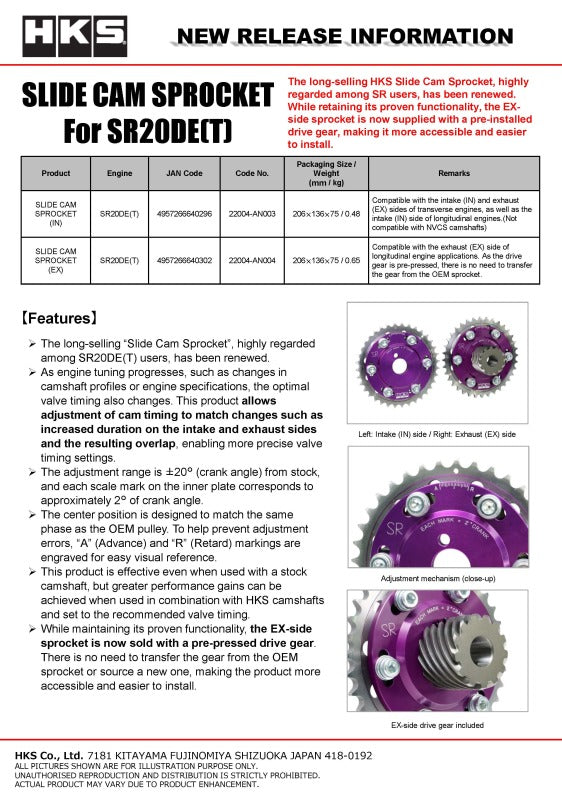

HKS 22004-AN004 Cam Sprocket - Installed Angle
Click to zoom in

HKS Slide Cam Sprocket Sr20De/Det Exhaust

HKS
HKS22004-AN004
4957266640302
Cam Gears
13 Units In Stock - Ships Next Business Day
$ 380.00
$ 380.00

HKS 22004-AN004 Slide Cam Sprocket Sr20De/Det Exhaust

This is a genuine cam sprocket from HKS.

Key Features

  • Genuine HKS part number 22004-AN004
  • Application side: Exhaust (EX) side of longitudinal engine applications
  • Engine type: SR20DE/SR20DET
  • Adjustment range: ±20° crank angle
  • Adjustment scale: One inner cam pulley graduation corresponds to approximately 2° of crank angle

Note: Cannot be installed with camshafts compatible with NVCS (variable valve timing mechanism).

Fitment

Year Make Model Submodel
1991 - 1998 Nissan 180sx RPS13
1991 - 1993 Nissan Silvia PS13
1993 - 1998 Nissan Silvia S14
1999 - 2002 Nissan Silvia S15

Specifications

Detail Value
Application side Exhaust (EX) side of longitudinal engine applications
Engine type SR20DE/SR20DET
Adjustment range ±20° crank angle
Adjustment scale One inner cam pulley graduation corresponds to approximately 2° of crank angle
Reference timing position Centering the scale provides approximately the same phase as the OEM setting
Package dimensions 206 × 136 × 75 mm
Package weight 0.65 kg
Number of boxes 1
Package Dimensions/Weight 206 × 136 × 75 mm, 0.65 kg, 1 box
Emissions/CARB Status The installation manual states that the product was developed on the premise of use in closed-circuit competition and is effective for sports driving on a closed circuit. No CARB EO or other emissions certification is stated.

What's Included

  • EX-side drive gear, supplied pre-installed/pre-pressed
  • EX-side drive gear. OEM gear transfer is not required

About HKS

HKS is a Japanese performance engineering company founded in 1973, known for turbocharger systems, the Hipermax coilover line, SSQV blow-off valves, and precision-engineered engine, suspension, and exhaust components developed and tested on JDM and global performance platforms.

Related Parts

FAQ

What vehicles does this cam sprocket fit?

Check the fitment table above for the exact year, make, model, and chassis this part covers.

Is this a genuine HKS part?

Yes. This is a genuine HKS part sourced through authorized HKS distribution channels, matching the manufacturer part number exactly.

What is included in the box?

The What's Included section above lists the exact contents and quantities that ship with this part.

Does this part require professional installation?

HKS documentation for this part notes installation considerations. See the Installation Instructions section below. Some parts require professional installation, fabrication, or specialized tools.

What is the HKS warranty on this part?

HKS provides a one-year warranty to the original purchaser of HKS products against defects in materials and workmanship. Purchasing the product through an unauthorized seller may void your warranty.

Is this part covered for emissions/CARB compliance?

The installation manual states that the product was developed on the premise of use in closed-circuit competition and is effective for sports driving on a closed circuit. No CARB EO or other emissions certification is stated.

Can I return this part if it doesn't fit my vehicle?

Confirm fitment against the table above before ordering. Standard return policy applies to unused, unmodified parts in original packaging.

Where is this part manufactured?

HKS parts are engineered and manufactured under HKS's Japan-based quality standards for performance automotive applications.

Installation Instructions

  1. Confirm the part in hand is stamped or labeled with HKS part number 22004-AN004 before installing.
  2. Installation must be performed by a professional installer.
  3. The product manual must be read and understood before installation and use.
  4. Because the drive gear is pre-pressed, there is no need to transfer the gear from the OEM sprocket.
  5. The product was developed for valve-timing adjustment and use in closed-circuit competition.
  6. Verify all fasteners are torqued to manufacturer specification before driving.
