Add Verified Hub Spacing for 5x130 Wheel Applications

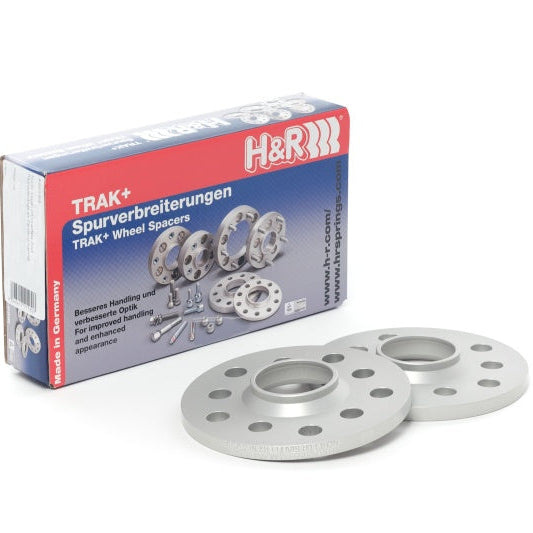

This H and R TRAK+ DR wheel spacer is for universal applications that use a 5x130 bolt pattern, a 71.6mm center bore, and M14x1.5 wheel bolts. The 20957160Z configuration is a silver 10mm spacer pair for compatible hubs and wheels.
Key Features
- TRAK+ DR wheel spacer design
- 10mm spacer width
- 5x130 bolt pattern
- 71.6mm center bore
- M14x1.5 wheel bolt requirement
- Silver finish and pair package
Fitment
| Years | Make | Model | Position | Requirements |
|---|---|---|---|---|
| Universal | Any | Compatible vehicle | Wheel hub | Requires 5x130 pattern, 71.6mm center bore, and M14x1.5 wheel bolts. Verify clearance and hub engagement. |
Specifications
| Detail | Value |
|---|---|
| Manufacturer Part Number | 20957160Z |
| Series | TRAK+ DR |
| Spacer Width | 10mm each |
| Bolt Pattern | 5x130 |
| Center Bore | 71.6mm |
| Wheel Bolt Thread | M14x1.5 |
| Finish | Silver |
| Package Quantity | Pair |
What's Included
- Two H and R wheel spacers
About H and R
H and R develops wheel spacers and suspension components for performance and street vehicles. TRAK+ spacers are application specific components that require accurate hub, bolt pattern, center bore, fastener, and clearance checks.
FAQ
What is the 20957160Z?It is a silver pair of 10mm TRAK+ DR wheel spacers with the dimensions shown above.
How thick is each spacer?Each spacer is 10mm wide.
What bolt pattern does it fit?It is for a 5x130 bolt pattern.
What center bore is required?The listed center bore is 71.6mm.
What wheel bolt thread is required?The application requires M14x1.5 wheel bolts.
How many spacers are included?The package contains a pair of spacers.
Will it fit any 5x130 vehicle?No. Confirm the hub center bore, wheel bolt seat, thread engagement, wheel clearance, and vehicle application before purchase.
What should be checked after installation?Check hub seating, wheel contact, fastener engagement, fender clearance, suspension clearance, and torque using the vehicle service procedure.
Installation Instructions
- Confirm the hub pattern, center bore, wheel bolt thread, and spacer width match the application.
- Measure wheel and suspension clearance before installation.
- Raise and support the vehicle safely, then remove the wheels.
- Clean the hub and wheel mounting surfaces and remove corrosion or debris.
- Seat each spacer fully against the hub without gaps or rocking.
- Reinstall the wheels with compatible wheel bolts and tighten in the vehicle manufacturers specified sequence and torque.
- Lower the vehicle and recheck clearance and fastener torque after the initial road test.
