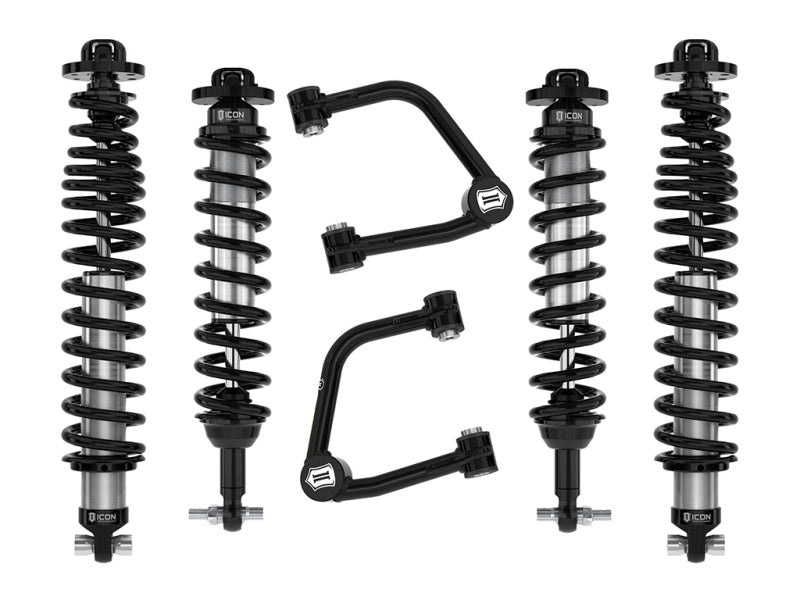

Photo - Primary

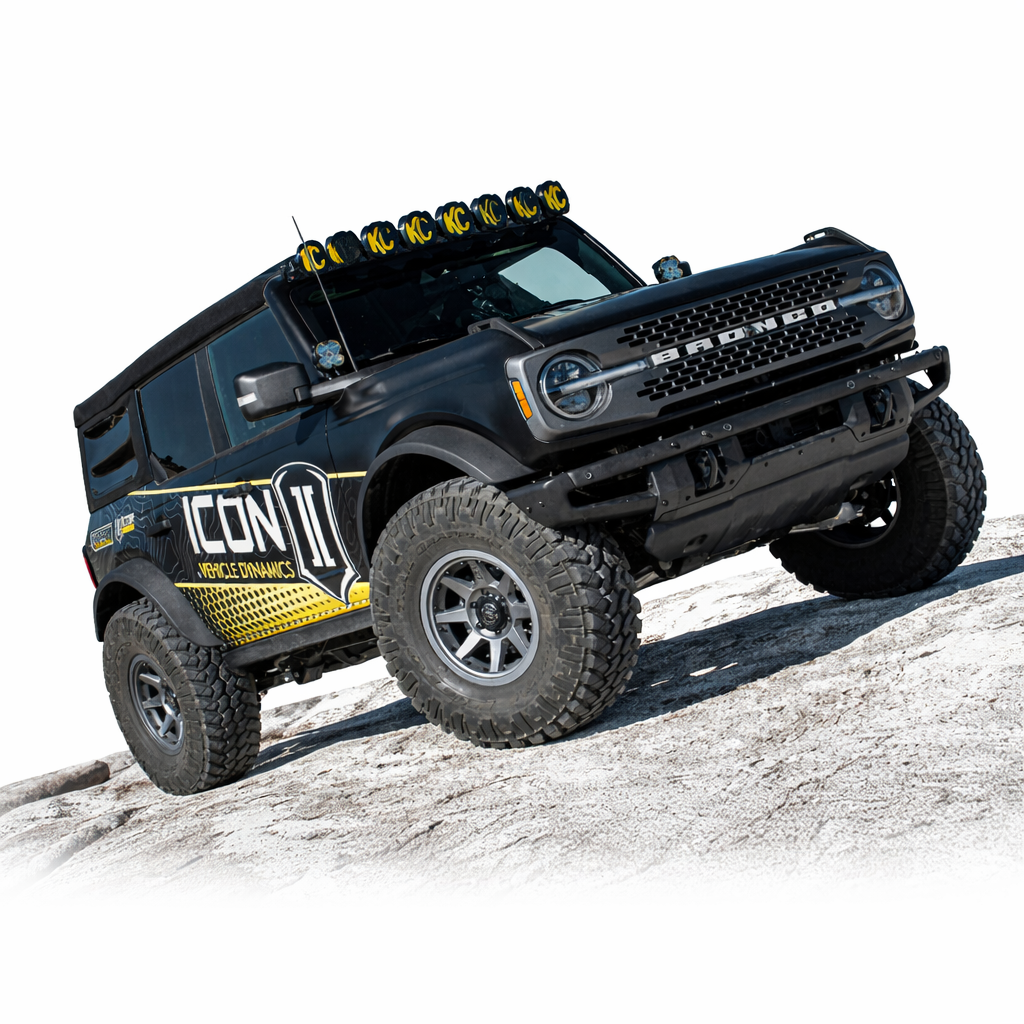

ICON ICON Vehicle Dynamics Stage 3 Suspension System 2021-2024 Ford Bronco 4-Door
Photo - lifestyle view
Photo - lifestyle view
Photo - lifestyle view
Click to zoom in

ICON Vehicle Dynamics Stage 3 Suspension System 2021-2024 Ford Bronco 4-Door

ICON
ICOK40013TX
Coilovers
6 Units In Stock - Ships Next Business Day
$ 4,327.85 $ 4,075.07
$ 4,075.07

SKU: K40013TX

ICON Vehicle Dynamics Stage 3 Suspension System for 2021-2024 Ford Bronco 4-Door

This complete Stage 3 kit outfits 2021-2024 Ford Bronco 4-Door models with Sasquatch Package using 2.5 Series internal reservoir coilover shocks (part numbers 58560DJ front 58577 rear) and tubular upper control arms (65410DJ). It delivers 11.5 inches front suspension travel and 14 inches rear travel with 35x12.50 tires alongside 2-3 inches front lift and 1.25-2.25 inches rear lift over stock Sasquatch height. The system enhances ride quality on-road and off-road while handling added gear loads through rear progressive dual rate springs.

Key Features

  • Custom Valved 2.5 Series Coilovers: Precision internal reservoir shocks with aluminum bodies provide maximum travel and damping control for on-road comfort and off-road capability
  • Adjustable Ride Height: Front 2-3 inches lift rear 1.25-2.25 inches over stock Sasquatch allows precise leveling and tire clearance up to 37 inches with optional up-travel limiters
  • Tubular Upper Control Arms (65410DJ): Include patented Delta Joint PRO for 90-degree movement caster correction and extended durability over OEM arms
  • Shaft-Up Rear Coilovers (58577): Unique progressive dual rate coil springs increase weight capacity for loaded Broncos without sacrificing performance
  • Extended Travel Design: Achieves 11.5 inches front 14 inches rear suspension travel improving articulation and control with 35-inch tires

Product Notes

  • Requires Ford Bronco Sasquatch Package or equivalent 37-inch tire setup for proper clearance and geometry
  • Rear coilovers mount shaft-up with ICON progressive springs for heavy load support
  • Safe for 37-inch or larger tires using optional up-travel limiters sold separately

Installation Notes

  • Professional installation recommended.
  • Upper control arms provide caster correction replace OEM components directly
  • Compatible with factory Sasquatch hardware no additional brackets needed

This Part Fits

Year Make Model Submodel
2021-2024 Ford Bronco 4-Door Sasquatch Package

Why Choose ICON?

  • ICON leads off-road suspension with race-tested designs for Broncos
  • Components built for daily driving and extreme terrain demands
  • Patented Delta Joint PRO technology ensures reliable joint performance

Frequently Asked Questions

  • Q: Will this kit fit 2021-2024 Ford Bronco 4-Door without Sasquatch Package?
    A: Requires Sasquatch Package or aftermarket 37-inch tires with proper wheel offset for clearance and alignment
  • Q: What materials are used in the shocks and arms?
    A: 2.5-inch diameter aluminum shock bodies CAD-plated steel tubing on tubular UCAs and PTFE-lined Delta Joint PRO bushings
  • Q: What warranty coverage applies?
    A: ICON provides limited lifetime warranty on Delta Joint PRO limited warranty on shocks covering manufacturing defects

Shipping & Handling

  • Method: UPS Ground or Freight
  • Availability: In stock - ships same or next business day
  • Packaging: Oversized box for complete kit
  • Weight: 145 lbs
