SKU: K53171

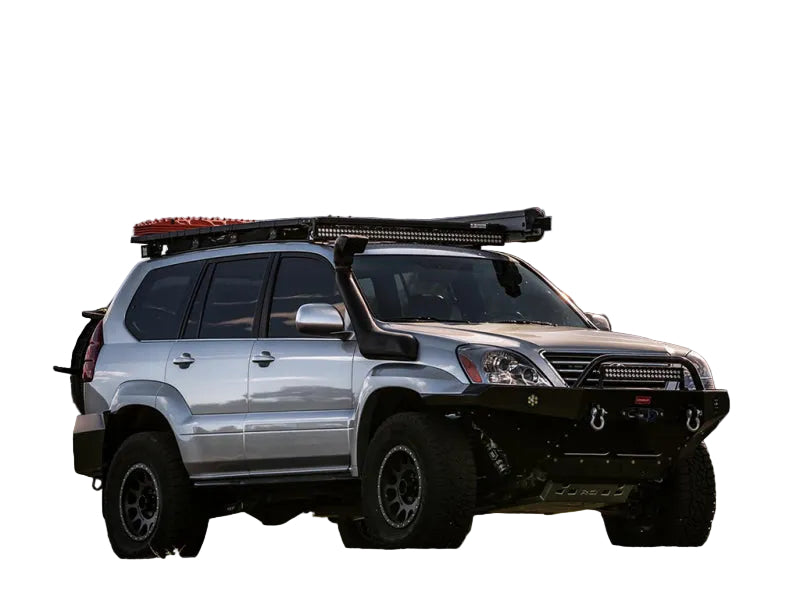

Icon 03-09 GX470 0-3.5in STAGE 1 SUSPENSION SYSTEM
The ICON Stage 1 suspension system fits 2003-2009 Lexus GX470 models and includes front 2.5-inch coilover shocks with internal reservoirs rear 2.0 Aluminum Series shocks 2-inch lift rear springs and a rear coil spring conversion kit that removes factory airbags. This setup provides height adjustment from 0-3.5 inches for larger wheels and tires while delivering vehicle-specific valving for consistent control on pavement and trails. Front and rear components work together for balanced ride quality across varied terrain.
Key Features
- 2.5-inch Front Coilover Shocks: Internal reservoir design manages heat during extended use paired with ICON coil springs for precise handling through full suspension travel
- Height Adjustable Lift: 0-3.5 inches of front lift over stock height supports 33-inch tires and custom setups without sacrificing ride comfort
- Rear 2.0 Aluminum Series Shocks: Internal reservoir with vehicle-specific valving maintains rear composure under load or off-road impacts
- 2-inch Rear Lift Springs: Matched to front coilovers for level stance and improved payload capacity on GX470 platform
- Rear Coil Spring Conversion Kit: Replaces factory airbags with durable coil springs for simplified maintenance and reliable performance
Product Notes
- Designed for stock or mildly modified GX470s upper control arms may require adjustment for maximum lift
- Regular shock maintenance extends service life in dusty or high-heat environments
- Heavy kit requires freight shipping with liftgate service recommended for delivery
Installation Notes
- Professional installation recommended.
- Rear conversion kit bolts to factory locations no welding required
- Uses existing OEM mounting points includes necessary hardware for direct fit
This Part Fits
| Year | Make | Model | Submodel |
|---|---|---|---|
| 2003-2009 | Lexus | GX470 | All |
Why Choose ICON?
- Proven in desert racing and rock crawling applications
- High-quality aluminum reservoirs resist corrosion
- Vehicle-specific tuning from ICON engineers ensures dialed-in performance
Frequently Asked Questions
-
Q: Will this kit fit my 2005 Lexus GX470 with stock suspension?
A: Yes it bolts on directly to 2003-2009 GX470 models including base and premium trims no modifications needed -
Q: What materials are used in the shocks?
A: 2.5-inch front coilovers feature cadmium-plated steel bodies 2.0 rear shocks use aluminum bodies with 6061 aircraft-grade components throughout -
Q: What is the warranty coverage?
A: ICON provides limited lifetime warranty on shocks against manufacturer defects with details at iconvehicledynamics.com
Shipping & Handling
- Method: Truck Freight
- Availability: In stock - ships same or next business day
- Packaging: Ships in multiple boxes approximately 48 x 24 x 24 inches total
- Weight: 118 lbs
