SKU: K62563RL
ICON 2023+ Ford F250/350 2.5in Stage 3 Suspension System w/ Radius Arms & Expansion Pack

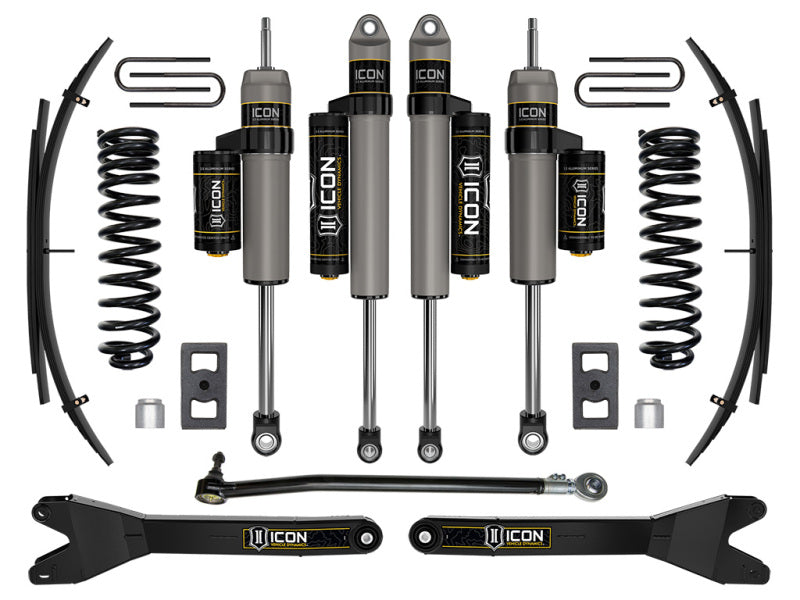

This ICON Vehicle Dynamics 2.5” suspension system lifts 2023+ 4WD Ford F-250/F-350 Super Duty Diesel trucks while improving ride quality and handling for on-road off-road towing and job site use. The complete kit includes dual rate coil springs radius arms adjustable track bar rear expansion packs and 2.5 Aluminum Series piggyback reservoir shocks. Expect long-lasting quiet operation with tire clearance up to 37 inches after extensive testing as a matched package.
Key Features
- Dual Rate Coil Springs: Tailored for diesel engines to deliver compliant ride heights with 2.5 inches of front lift and balanced load handling

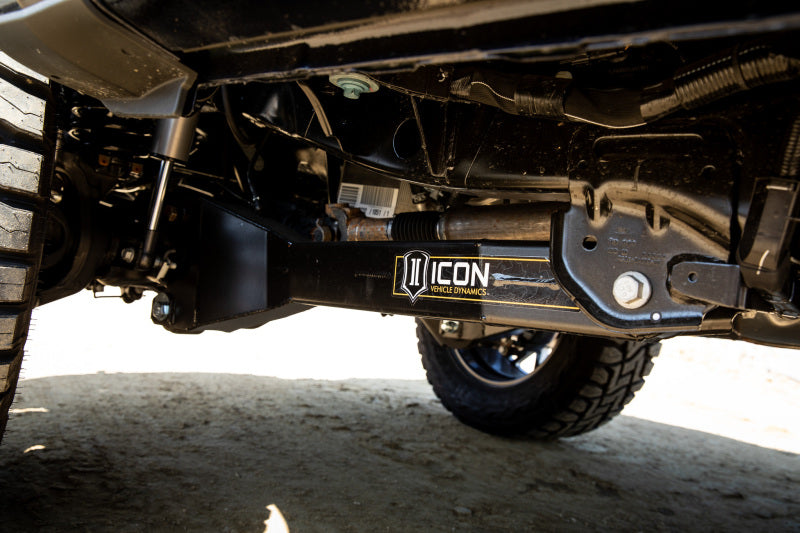

- Fabricated Radius Arms: Fully boxed steel design with sealed pivot bushings reduces road feedback ensures strength and clears 37” tires at full steering lock
- On-Vehicle Adjustable Front Track Bar: Allows precise alignment adjustments without removal for centered axle and stable handling
- Rear Leaf Spring Expansion Packs: Includes blocks and u-bolts for added height compliant ride and minimized axle wrap during heavy loads
- 2.5 Aluminum Series Piggyback Shocks: Front 58750DJ and rear 57847DJ provide external reservoirs for heat dissipation velocity-based damping on and off-road
Product Notes
- Diesel engine trucks only coil springs tuned for diesel weight and power
- 37” tire compatible without radius arm contact at full lock
- Freight shipment required due to kit size and components
Installation Notes
- Professional installation recommended.
- Bolt-on design replaces factory radius arms track bar and adds springs shocks packs
- Uses factory mounting locations no welding or cutting needed
This Part Fits
| Year | Make | Model | Submodel |
|---|---|---|---|
| 2023-2024 | Ford | F-250 Super Duty | Diesel 4WD |
| 2023-2024 | Ford | F-350 Super Duty | Diesel 4WD |
Why Choose ICON?
- Proven leadership in vehicle dynamics from off-road racing development
- Thousands of real-world testing hours on complete systems
- Engineered components tuned together for ride control and durability
Frequently Asked Questions
-
Q: Does this kit fit gas engine F-250/F-350 trucks?
A: No designed exclusively for diesel models with specific dual rate coil springs for diesel weight distribution -
Q: What materials build the radius arms and shocks?
A: Radius arms use fabricated boxed steel with sealed pivot bushings shocks feature 2.5-inch aluminum bodies with external reservoirs -
Q: What warranty covers this suspension system?
A: Limited Lifetime Warranty on components 1-year warranty on shocks from purchase date against defects
Shipping & Handling
- Method: Freight truck shipping
- Availability: In stock - ships same or next business day
- Packaging: Multiple oversized boxes approx 48 x 18 x 14 inches
- Weight: 285 lbs
