Description

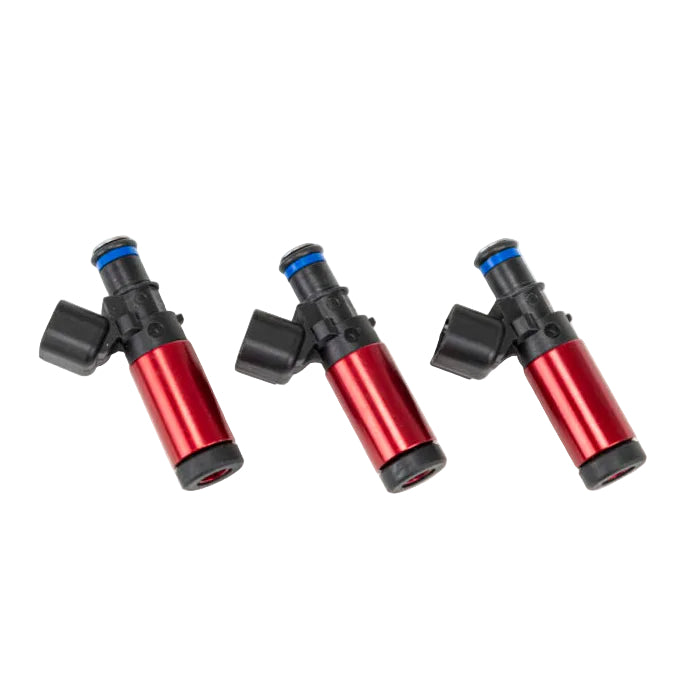

This Injector Dynamics fuel injector set, manufacturer part number 1050.55.11.D.3, is selected by its exact dimensions, connector or sealing interface, configuration, and intended use rather than a single year-make-model application. Confirm every specification before ordering.
Key Features
- 11mm machined top / 34.55.D bottom adapters, pigtails to the OE harness interface, dynamically matched as a set of three.
- Rated at 1065 cc/min at 3.0 bar (43.5 psi), measured with gasoline at 52 C (125 F), with a published maximum differential fuel pressure of 10.0 bar (145.0 psi).
- Three Injector Dynamics ID1050-XDS fuel injectors in the 11mm machined top / 34.55.D bottom adapters, pigtails to the OE harness configuration, supplied as one dynamically matched set.
- Load the current published dynamic flow and offset data for the ID1050-XDS into the engine management system before starting the engine (not automatically).
Fitment
| Years | Make | Model | Application |
|---|---|---|---|
| Universal | Not vehicle specific | Not vehicle specific | Match the exact dimensions, connector or sealing interface, configuration, intended use, and manufacturer part number |
Specifications
| Brand | Injector Dynamics |
|---|---|
| Manufacturer Part Number | 1050.55.11.D.3 |
| Product Type | Fuel Injector Sets - 3Cyl |
| Fitment Type | Universal |
| Condition | New |
| Injector Series | ID1050-XDS |
| Quantity | 3 |
| Connector | USCAR unless the exact listing states an included plug-and-play adapter |
| Official Configuration | Corolla GR and Yaris GR 2020+. 11 machined top, 34.55.D bottom adapters. Set of 3. |
What's Included
One new Injector Dynamics fuel injector set package identified by manufacturer part number 1050.55.11.D.3, in the exact quantity and configuration stated by the title. Fuel rails, fittings, adapters, wiring, sensors, service parts, and calibration support are included only when expressly listed.
About Injector Dynamics
Injector Dynamics develops high-performance fuel injectors, fuel-system controls, filtration products, adapters, connectors, and service components with application and calibration data for supported products.
Related Injector Dynamics Products
- Shop all Injector Dynamics products
- Injector Dynamics ID1300-XDS 11mm machined top / 34.55.D bottom adapters, pigtails to the OE harness Fuel Injectors (Set of 3)
- Injector Dynamics +12mm Clear Anodize Bottom Adapter 14mm Lower O-Ring
- Injector Dynamics +14mm Bottom Adapter 14mm Lower O-Ring - Black
Frequently Asked Questions
Will these injectors work with my factory tune?
No. Injector calibration data and a compatible engine calibration are required. Confirm that your tuner supports the exact injector series and application.
How do I confirm the injector fitment?
Match the exact part number, injector length, upper and lower interface, connector, rail configuration, quantity, and any application-specific adapters.
Can these injectors be used with ethanol fuel?
Injector Dynamics lists the XDS injector families for common racing and street fuels, but the entire fuel system and calibration must also be compatible with the selected fuel.
Installation Instructions
Read the current Injector Dynamics instructions and calibration data for part number 1050.55.11.D.3. Depressurize the fuel system, work in a ventilated area away from ignition sources, inspect and lubricate seals as directed, confirm rail and connector engagement, check for leaks before starting the engine, and complete any required calibration before operation.
