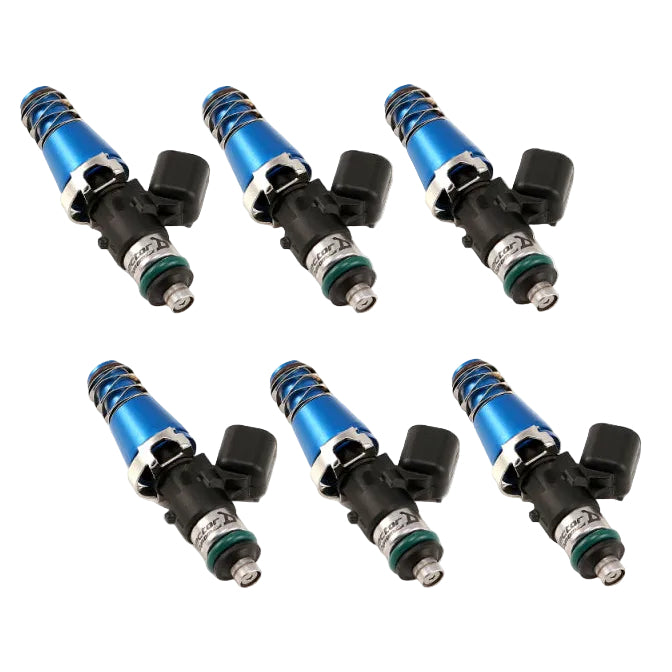

Injector Dynamics ID1750-XDS 11mm blue top / 14mm lower O-ring Fuel Injectors (Set of 6) - Injector Dynamics IDX1750.60.11.14
Click to zoom in
View vehicle applications

Description

This Injector Dynamics fuel injector set, manufacturer part number 1750.60.11.14.6, is selected by its exact dimensions, connector or sealing interface, configuration, and intended use rather than a single year-make-model application. Confirm every specification before ordering.

Key Features

  • Rated at 1728 cc/min at 3.0 bar (43.5 psi), measured on E10 emissions certification fuel at 49 C (120 F), with a published maximum differential fuel pressure of 7.0 bar (101.5 psi).
  • 11mm blue top / 14mm lower O-ring interface, dynamically matched as a set of six.
  • Six Injector Dynamics ID1750-XDS fuel injectors in the 11mm blue top / 14mm lower O-ring configuration, supplied as one dynamically matched set.
  • Load the current published dynamic flow and offset data for the ID1750-XDS into the engine management system before starting the engine (not in the box).

Fitment

Years Make Model Application
Universal Not vehicle specific Not vehicle specific Match the exact dimensions, connector or sealing interface, configuration, intended use, and manufacturer part number

Specifications

Brand Injector Dynamics
Manufacturer Part Number 1750.60.11.14.6
Product Type Fuel Injector Sets - 6Cyl
Fitment Type Universal
Condition New
Injector Series ID1750-XDS
Quantity 6
Connector USCAR unless the exact listing states an included plug-and-play adapter
Official Configuration 91-96 NSX / C Series, 11mm (blue) adaptors. 14mm bottom o-ring. Set of 6.

What's Included

One new Injector Dynamics fuel injector set package identified by manufacturer part number 1750.60.11.14.6, in the exact quantity and configuration stated by the title. Fuel rails, fittings, adapters, wiring, sensors, service parts, and calibration support are included only when expressly listed.

About Injector Dynamics

Injector Dynamics develops high-performance fuel injectors, fuel-system controls, filtration products, adapters, connectors, and service components with application and calibration data for supported products.

Related Injector Dynamics Products

Frequently Asked Questions

Will these injectors work with my factory tune?
No. Injector calibration data and a compatible engine calibration are required. Confirm that your tuner supports the exact injector series and application.

How do I confirm the injector fitment?
Match the exact part number, injector length, upper and lower interface, connector, rail configuration, quantity, and any application-specific adapters.

Can these injectors be used with ethanol fuel?
Injector Dynamics lists the XDS injector families for common racing and street fuels, but the entire fuel system and calibration must also be compatible with the selected fuel.

Installation Instructions

Read the current Injector Dynamics instructions and calibration data for part number 1750.60.11.14.6. Depressurize the fuel system, work in a ventilated area away from ignition sources, inspect and lubricate seals as directed, confirm rail and connector engagement, check for leaks before starting the engine, and complete any required calibration before operation.

Injector Dynamics ID1750-XDS 11mm blue top / 14mm lower O-ring Fuel Injectors (Set of 6)

IDX1750.60.11.14.6
17506011146
Fuel Injector Sets - 6Cyl
3 Units In Stock
$ 2,009.70
