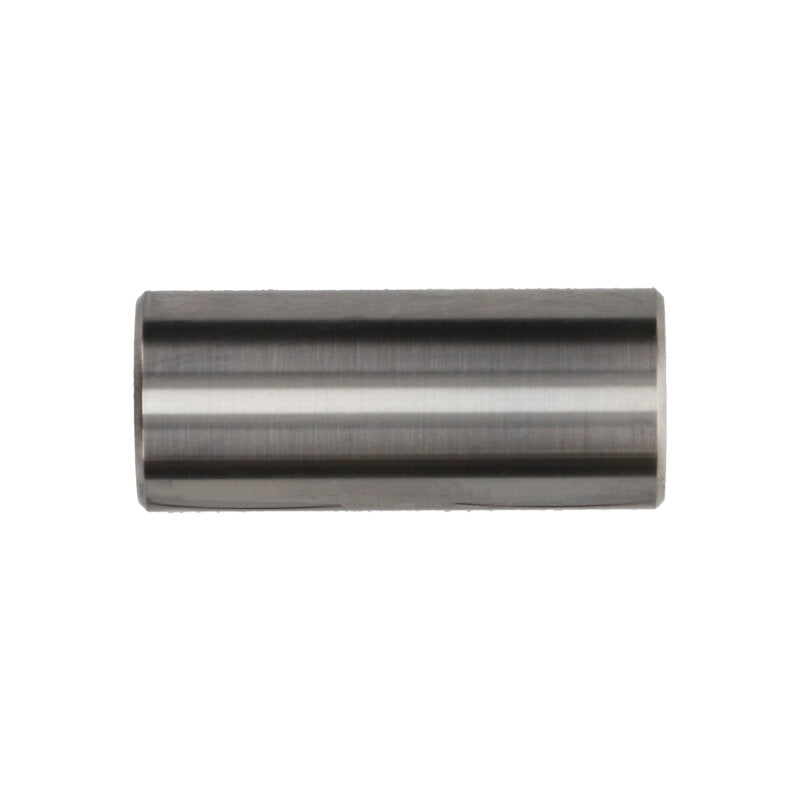

JE Pistons v787-2250-18-TTC wrist pin full view
Click to zoom in

JE Pistons .787 X 2.250 180W Premium Pin

JE Pistons
JEP787-2250-18-TTC
193564004086
Piston Pins
6 Units In Stock - Ships Next Business Day
$ 36.99
$ 36.99

SKU: v787-2250-18-TTC   |   UPC: 193564004086

JE Pistons Premium Wrist Pin – 0.787in x 2.250in 18W

The JE Pistons v787-2250-18-TTC wrist pin for high-RPM and forced induction builds. Manufactured from premium H-13 steel by Trend Performance in the USA, this 0.787in diameter x 2.250in long 18W pin delivers exceptional strength, durability, and reliability the ultimate wrist pin upgrade for any high-performance, turbo, supercharged, or nitrous engine.

Key Features

  • Premium H-13 Steel – High-strength tool steel for superior resistance to fatigue and bending
  • Precision Dimensions – 0.787in diameter x 2.250in length with 18W wall thickness for perfect fit and balance
  • Made in the USA – Trend Performance quality ensures consistent performance and reliability
  • High-RPM & Forced Induction Ready – Designed for extreme conditions including turbo, supercharger, and nitrous applications
  • JE Pistons Approved – Official distributor product for use with JE pistons and high-end builds

Specs

Spec Detail
Part Number v787-2250-18-TTC
Brand JE Pistons (Trend Performance)
Diameter 0.787 in
Length 2.250 in
Wall Thickness 18W
Material Premium H-13 Steel
Country of Origin United States
Warranty JE Pistons Limited Warranty

Whats Included

  • 1 x Vibrant Premium Wrist Pin (0.787in x 2.250in 18W)

Product Notes

  • Ideal for high-RPM, forced induction, nitrous, or race engine builds
  • Compatible with JE Pistons and most high-performance piston designs
  • Provides increased safety factor over standard pins in extreme applications

Installation Notes

  • Direct replacement during piston installation or rebuild
  • Estimated time: Included in full engine assembly
  • Professional engine builder installation recommended

This Part Fits

Year Range Make Model Trim / Engine Notes
Universal Universal High-Performance Engines EJ20/EJ25, etc. 0.787in wrist pin applications

Why Choose JE Pistons / Trend Wrist Pins?

  • #1 choice for high-performance and race piston upgrades
  • Built & tested in the United States
  • Chosen by engine builders and racers for strength and reliability

Frequently Asked Questions

  • Q: Does this fit Subaru EJ engines?
    A: Yes – 0.787in diameter commonly used in EJ20/EJ25 high-performance builds; verify piston pin bore.
  • Q: Why upgrade to H-13 steel?
    A: Superior strength and fatigue resistance for high-RPM and boosted applications.
  • Q: Is this sold individually or in sets?
    A: Sold individually; order quantity needed for full set (typically 4 for inline engines).

Shipping & Handling

  • Method: Ground UPS or FedEx
  • Availability: In stock – ships same or next business day
  • Packaging: Official JE Pistons / Vibrant retail box
