Sold out
JE Pistons Ring Sets 1.0-1.0-2.0-3.189 JE Pistons JEPXG8100
Click to zoom in

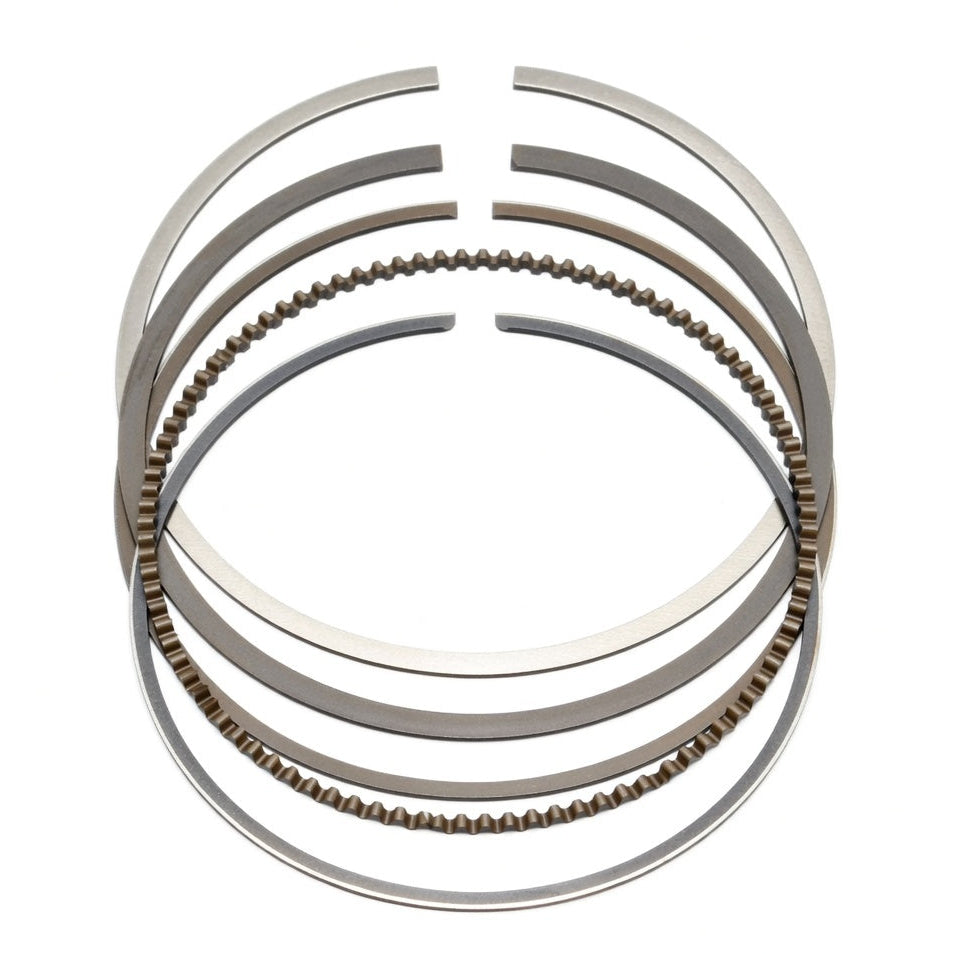

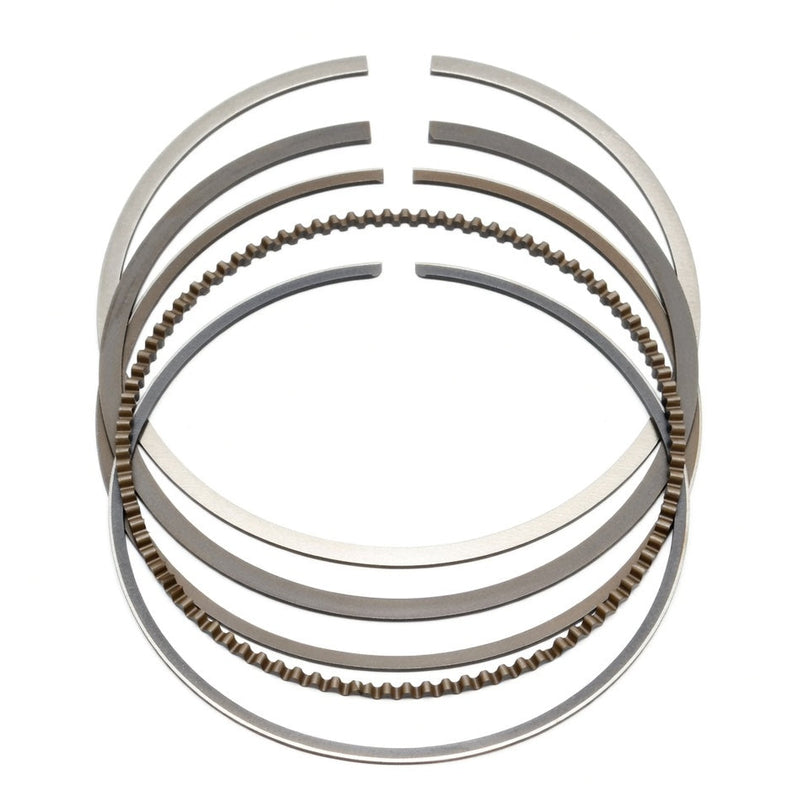

JE Pistons Ring Sets 1.0-1.0-2.0-3.189

JE Pistons
JEPXG8100
193564240989
Piston Rings
Out of stock
$ 30.99

SKU: XG8100 | UPC: 193564240989

JE Pistons Ring Sets 1.0-1.0-2.0-3.189" for Acura Integra Honda Civic B-Series 1990-2001

JE Pistons Ring Sets 1.0-1.0-2.0-3.189" provide exact combustion pressure sealing in high performance B16 and B18 engines. These rings fit Acura Integra LS GS-R Type R and Honda Civic Si Del Sol VTEC models from 1990 to 2001. They deliver power through low friction design and strong durability in racing applications.

Key Features

  • Precision Bore Fit: Sized for 3.189-inch (81mm) bores with 1.0mm top 1.0mm second and 2.0mm oil rings for tight combustion seal
  • Premium Materials: High strength alloys resist wear and handle high RPM demands in performance builds
  • Low Friction Design: Thin ring widths cut drag for noticeable horsepower increases in B-series engines
  • Custom Services Available: Back cutting dyke cutting lapping grinding and PVD coating enhance seal and lifespan
  • Racing Proven: Same technology used by NHRA Pro Stock and NASCAR teams now for street and track builds

Product Notes

  • Rings are file-fit verify bore measurement and set end gaps per JE specifications
  • Pair with JE pistons for complete high performance bottom end assembly
  • Store in dry conditions to maintain ring tension before installation

Installation Notes

  • Professional installation recommended.
  • Hone cylinders to crosshatch pattern before ring install for proper break-in
  • Requires ring filing tool and end gap gauge for custom bore adjustment

This Part Fits

Year Make Model Submodel
1990-1993 Acura Integra LS
1994-2001 Acura Integra GS-R
1996-2000 Acura Integra Type R
1999-2000 Honda Civic Si
1994-1997 Honda Del Sol VTEC

Why Choose JE Pistons?

  • Decades of experience supplying championship winning race teams
  • File-fit rings ensure perfect match to any 81mm bore engine
  • Custom machining options match pro level specs for any build

Frequently Asked Questions

  • Q: What B-series engines does XG8100 fit?
    A: Fits 81mm bore B16A B18A1 B18C1 B18C5 in listed Acura Integra and Honda Civic Del Sol models 1990-2001
  • Q: What are the exact ring dimensions?
    A: Top compression ring 1.0mm second compression ring 1.0mm oil control ring 2.0mm for 3.189-inch bore
  • Q: Do these rings need custom filing?
    A: Yes file-fit design requires measuring bore and adjusting end gaps to JE recommended specs for best seal

Shipping & Handling

  • Method: UPS Ground
  • Availability: In stock - ships same or next business day
  • Packaging: Compact protective box 6 x 4 x 1 inches
  • Weight: 0.25 lbs
