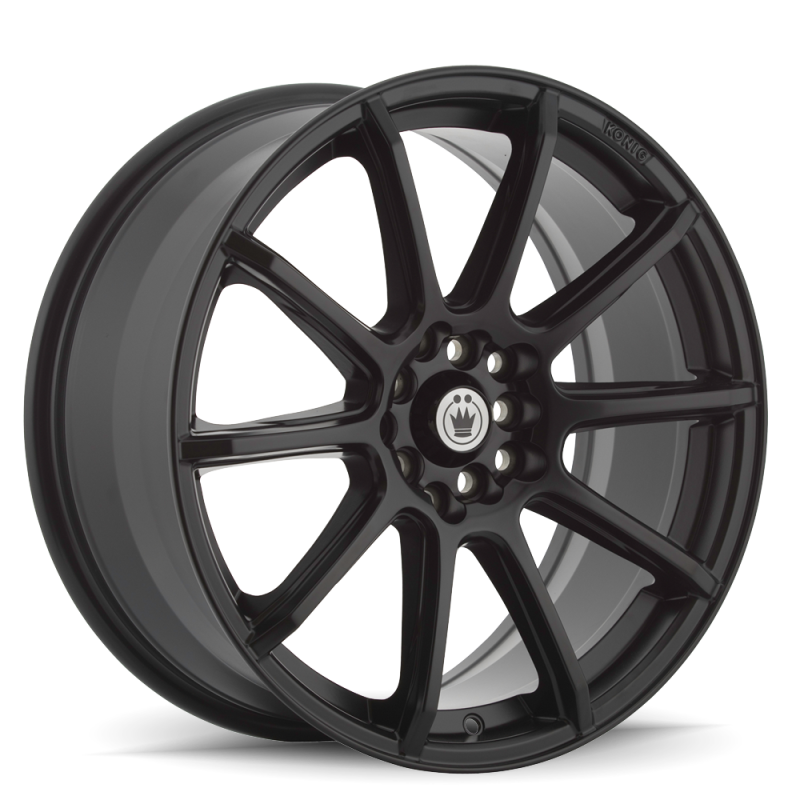

One Wheel. Two Bolt Patterns. Maximum Fitment Range — Konig Control CL77T84405 in 17x7 5x108 5x114.3 ET40
The Konig Control CL77T84405 is engineered with a dual bolt pattern that accepts both 5x108 and 5x114.3 lug configurations, making it one of the most versatile cast aluminum street wheels in the Konig lineup. In 17x7 with an ET40 offset in matte black, the CL77T84405 bridges the gap between European platforms like Ford and Volvo running 5x108 and Japanese or domestic platforms running 5x114.3, all on one wheel. The Control series delivers a clean multi-spoke design focused on everyday refinement over flash, backed by Konig's lifetime structural warranty. Each CL77T84405 ships individually with a matching center cap included.
The 73.1mm center bore covers both bolt pattern families without requiring custom machining, and the ET40 offset sits comfortably within the factory fender envelope of most 5x108 and 5x114.3 vehicles. TPMS sensors are compatible, and hub-centric rings are recommended for vehicles with a factory bore smaller than 73.1mm.
Fitment
The CL77T84405 accepts both 5x108 and 5x114.3 lug patterns on the same wheel. Compatible platforms include:
| Year | Make | Model | Bolt Pattern |
|---|---|---|---|
| 2012 | Ford | Focus | 5x108 |
| 2013 | Ford | Focus | 5x108 |
| 2014 | Ford | Focus | 5x108 |
| 2015 | Ford | Focus | 5x108 |
| 2016 | Ford | Focus | 5x108 |
| 2017 | Ford | Focus | 5x108 |
| 2018 | Ford | Focus | 5x108 |
| 2010 | Ford | Fusion | 5x108 |
| 2011 | Ford | Fusion | 5x108 |
| 2012 | Ford | Fusion | 5x108 |
| 2013 | Ford | Fusion | 5x108 |
| 2014 | Ford | Fusion | 5x108 |
| 2015 | Ford | Fusion | 5x108 |
| 2016 | Ford | Fusion | 5x108 |
| 2017 | Ford | Fusion | 5x108 |
| 2018 | Ford | Fusion | 5x108 |
| 2019 | Ford | Fusion | 5x108 |
| 2012 | Volvo | S60 | 5x108 |
| 2013 | Volvo | S60 | 5x108 |
| 2014 | Volvo | S60 | 5x108 |
| 2015 | Volvo | S60 | 5x108 |
| 2016 | Volvo | S60 | 5x108 |
| 2017 | Volvo | S60 | 5x108 |
| 2018 | Volvo | S60 | 5x108 |
| 2012 | Volvo | S80 | 5x108 |
| 2013 | Volvo | S80 | 5x108 |
| 2014 | Volvo | S80 | 5x108 |
| 2015 | Volvo | S80 | 5x108 |
| 2016 | Volvo | S80 | 5x108 |
| 2015 | Subaru | WRX | 5x114.3 |
| 2016 | Subaru | WRX | 5x114.3 |
| 2017 | Subaru | WRX | 5x114.3 |
| 2018 | Subaru | WRX | 5x114.3 |
| 2019 | Subaru | WRX | 5x114.3 |
| 2020 | Subaru | WRX | 5x114.3 |
| 2021 | Subaru | WRX | 5x114.3 |
| 2022 | Subaru | WRX | 5x114.3 |
| 2009 | Nissan | 370Z | 5x114.3 |
| 2010 | Nissan | 370Z | 5x114.3 |
| 2011 | Nissan | 370Z | 5x114.3 |
| 2012 | Nissan | 370Z | 5x114.3 |
| 2013 | Nissan | 370Z | 5x114.3 |
| 2014 | Nissan | 370Z | 5x114.3 |
| 2015 | Nissan | 370Z | 5x114.3 |
| 2016 | Nissan | 370Z | 5x114.3 |
| 2017 | Nissan | 370Z | 5x114.3 |
| 2018 | Nissan | 370Z | 5x114.3 |
| 2019 | Nissan | 370Z | 5x114.3 |
| 2020 | Nissan | 370Z | 5x114.3 |
Specifications
| Spec | Detail |
|---|---|
| Part Number (MPN) | CL77T84405 |
| UPC | Verify at time of order |
| Brand | Konig |
| Series | Control |
| Diameter | 17 in |
| Width | 7 in |
| Bolt Pattern | 5x108 / 5x114.3 (dual) |
| Offset (ET) | +40mm |
| Center Bore | 73.1mm |
| Finish | Matte Black |
| Construction | Cast aluminum, 1-piece |
| Lug Seat | 60-degree conical (acorn) |
| TPMS Compatible | Yes |
| Sold As | Single wheel |
What's Included
- 1x Konig Control CL77T84405 wheel (17x7 5x108/5x114.3 ET40 Matte Black)
- 1x Matching center cap
Frequently Asked Questions
What does the dual bolt pattern mean on the Konig Control CL77T84405?
The CL77T84405 has lug holes drilled to accept both 5x108 and 5x114.3 lug patterns. This means a single wheel fits vehicles from Ford, Volvo, and Peugeot (5x108) as well as Nissan, Subaru, Toyota, and others (5x114.3) without any adapter or modification.
What lug nuts do I need for the Konig Control CL77T84405?
60-degree conical seat (acorn) lug nuts in the thread pitch matching your vehicle. For Ford Focus and Fusion, that is M12x1.5. For Volvo, M14x1.5. For Nissan and Subaru, M12x1.25. Factory lug nuts are not compatible.
Will the Konig Control CL77T84405 fit a Ford Focus ST?
Yes. The Ford Focus ST (2013 to 2018) uses a 5x108 bolt pattern and is a confirmed fitment vehicle for the CL77T84405. Verify hub bore and brake caliper clearance for your specific trim.
Does the Konig Control CL77T84405 fit Volvo vehicles?
Yes. Volvo S60 and S80 models with 5x108 are compatible with the CL77T84405. Verify hub bore — Volvo uses a 63.4mm bore, so a 63.4 to 73.1mm hub-centric ring is needed.
What tire size works on the Konig Control CL77T84405 (17x7)?
A 17x7 wheel accommodates tires from approximately 205 to 235 wide. Common choices include 225/45R17 for a sport sedan fitment.
What is the warranty on the Konig Control CL77T84405?
Konig backs the CL77T84405 with a lifetime structural warranty and a 1-year finish warranty to the original purchaser, covering defects in materials and workmanship under normal use.
Do I need hub-centric rings for the Konig Control CL77T84405?
The CL77T84405 has a 73.1mm center bore. If your vehicle's hub bore is smaller (for example, 63.4mm on Volvo or 60.1mm on some Ford), hub-centric rings are strongly recommended.
Is the Konig Control CL77T84405 TPMS compatible?
Yes. The CL77T84405 is compatible with factory-style snap-in and band-style TPMS sensors. Retain your OEM sensors during tire mounting.
Installation Notes
Clean hub and wheel mating surfaces before installation. Use hub-centric rings if your vehicle bore is smaller than 73.1mm. Torque lug nuts to the vehicle manufacturer's specification in a star pattern using a calibrated torque wrench. Re-torque after the first 25 to 50 miles. Do not use an impact wrench for final torque on the CL77T84405.
