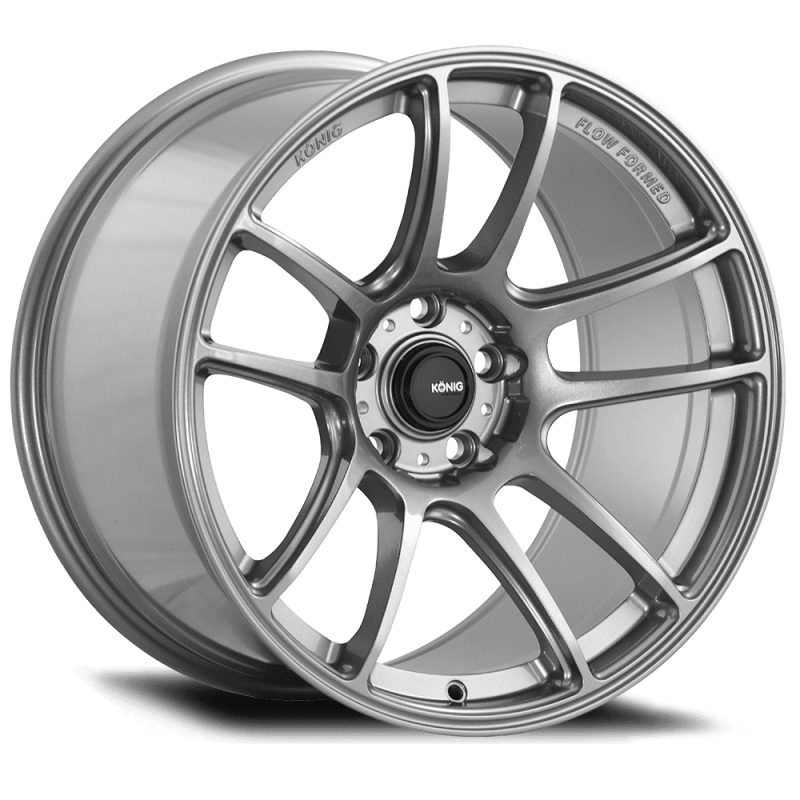

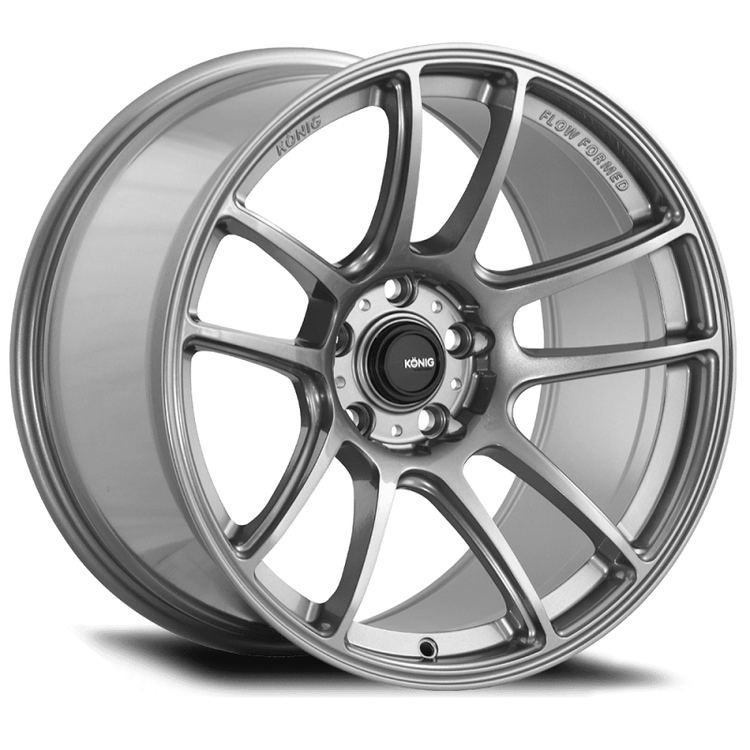

The Konig Heliogram is a 18x12-inch flow formed aluminum wheel in Titanium Metallic. This exact 5x114.3 configuration uses a +20 mm offset and 73.1 mm center bore under manufacturer part number HL2851420T.
Key Features
- Crafted using advanced flow-forming technology, the Heliogram ensures durability while remaining lightweight.
- The Konig Heliogram 18X12 wheel is a stunning addition to any vehicle, featuring a unique titanium metallic finish that enhances its aesthetic appeal.
- With a 5x114.3 bolt pattern and an ET20 offset, this wheel is designed for optimal performance and style.
- The knurled bead design provides improved tire grip, making it perfect for both street and track use.
Fitment
This is a dimensional wheel application, not a year-make-model-specific part. Match the full 18x12-inch size, 5x114.3 bolt pattern, +20 mm offset, 73.1 mm center bore, brake clearance, load requirement, tire size, suspension, lug-seat style, and body clearance.
Specifications
| Brand | Konig |
|---|---|
| Manufacturer Part Number | HL2851420T |
| Wheel Model | Heliogram |
| Construction | Flow Formed aluminum |
| Wheel Size | 18x12 inches |
| Bolt Pattern | 5x114.3 |
| Offset | +20 mm |
| Center Bore | 73.1 mm |
| Finish | Titanium Metallic |
| Load Rating | 1543 lb |
| Wheel Weight | 21.9 lb |
What's Included
One Konig Heliogram wheel in the exact configuration shown. The compatible center cap is included only when supplied by Konig. Tires, lug hardware, valve stems, TPMS sensors, hub rings, mounting, and balancing are not included unless expressly stated.
About Konig
Konig manufactures cast, flow-formed, and forged performance wheels plus exact replacement wheel components. Every configuration is defined by its manufacturer part number and complete technical specifications.
Related Konig Products
- Shop all Konig wheels and accessories
- Konig Heliogram 18X8.5 5X114.3 ET42 Titanium Metallic Knurled Bead Flow Formed
- Konig Ampliform 17x8 4x100 ET45 Gloss Bronze
- Konig Ampliform 17x8 5x114.3 ET40 Dark Metallic Graphite
Frequently Asked Questions
Will this 18x12 Konig wheel fit because my vehicle uses 5x114.3?
No. Also confirm the +20 mm offset, 73.1 mm center bore, brake clearance, load rating, tire size, suspension clearance, lug-seat style, and body clearance.
Is this Konig wheel sold individually or as a set?
This listing is priced and sold as one wheel. Confirm front and rear specifications before ordering the quantity required for a square or staggered setup.
What additional parts may be required?
The vehicle may require compatible lug hardware, hub-centric rings, valve stems, TPMS sensors, and tires. Match every component to the exact wheel and vehicle hub.
