Kooks 15-20 Cadillac Escalade ESV Platinum Premium 1-7/8 x 3 Header & Catted Y-Pipe Kit

Kooks 1-7/8" x 3" Long Tube Headers with Catted Y-Pipe for 2014 and 2018 Chevrolet Silverado 1500, GMC Sierra 1500, 2015 and 2020 Cadillac Escalade 6.2L L86

The Kooks 2861H420 1-7/8-inch long tube headers and catted Y-pipe kit provides the full bolt-on exhaust upgrade for 2014 and 2018 Chevrolet Silverado 1500, GMC Sierra 1500, and 2015 and 2020 Cadillac Escalade / Escalade ESV with the 6.2L L86 V8.

 It replaces factory manifolds to deliver dyno-proven 50 and 65 rear-wheel horsepower and 45 and 60 lb-ft of torque gains through equal-length primaries, merged collectors, and a high-flow 3-inch catted Y-pipe that connects directly to the stock mid-section. Handcrafted from T304 stainless steel with laser-cut 3/8-inch flanges and full TIG welds, the system sharpens throttle response and adds a deep, aggressive V8 tone with no interior drone. It supports up to 850 HP while remaining 49-state emissions compliant.

Key Features

• 1-7/8-Inch Equal-Length Primaries Mandrel-bent for maximum scavenging and torque
• 3-Inch High-Flow Catted Y-Pipe Metallic core rated for 850+ HP with OEM outlet
• T304 Stainless Steel Full TIG welds and 16-gauge tubing for lifetime durability
• Merged Collectors Optimized flow for broader powerband
• Direct OEM Connection Bolts straight to factory exhaust without modifications
• Dyno Gains 50 and 65 RWHP and 45 and 60 RWTQ on stock 6.2L L86

Product Notes

• 49-state EPA compliant. Not legal in California or CARB states
• Fits all cab/bed configurations with factory 6.2L L86 engine
• O2 sensor extensions included. Drive cycle required after install
• California Proposition 65 warning applies

Warranty Limited lifetime on stainless parts and 25,000 miles on catalysts

Installation Notes

• Professional installation recommended. Vehicle lift required
• Torque header bolts to 25-30 ft-lbs in stages using supplied Stage 8 hardware
• Connect Y-pipe to factory section with included clamps and gaskets
• Recheck torque after first heat cycle and 100 miles

This Part Fits

Note: Fits 2WD and 4WD models with factory 6.2L. Excludes HD trucks.

What's Included in the Purchase

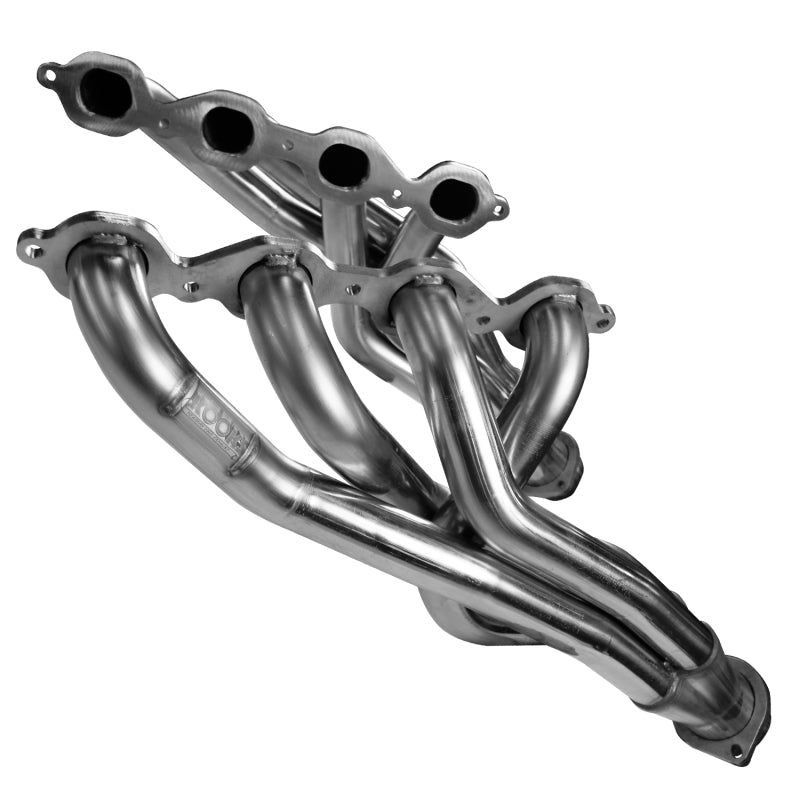

• (2) 1-7/8" x 3" Long-Tube T304 Stainless Headers with Merged Collectors

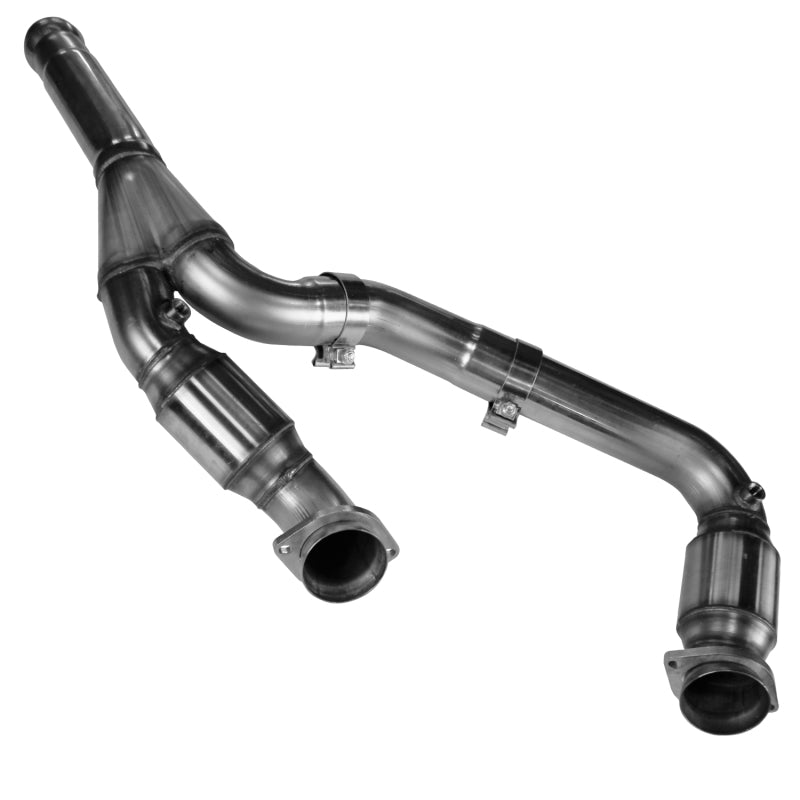

• (1) 3-Inch Catted Y-Pipe with OEM Outlet
• Gaskets, Stage 8 Locking Bolts, Clamps and Hardware
• O2 Sensor Extensions
• Installation Instructions
• Part Number: Kooks 2861H420

Why Choose Kooks?

• Over 60 years of championship-winning exhaust engineering
• Handcrafted in the USA from T304 aircraft-grade stainless
• Limited lifetime warranty and dyno-tested performance

Frequently Asked Questions

• Q: Does this fit my 2017 Silverado 1500 High Country 6.2L?
  A: Yes, direct bolt-on for all 2014 and 2018 1500-series 6.2L models
• Q: Will it cause a check engine light?
  A: No, catted Y-pipe and extensions keep all sensors in correct positions
• Q: How loud is it?
  A: Deeper and louder at wide-open throttle, quiet and drone-free at cruise
• Do Kooks headers require a tune after installation?
  Yes. A professional tune is strongly recommended after installing long tube headers. The significant improvement in exhaust flow changes air fuel ratios and requires ECM recalibration to achieve optimal power output and safe operation.
• Will these headers void my factory powertrain warranty?
  Under the Magnuson-Moss Warranty Act, a manufacturer cannot void your vehicle warranty simply because you installed an aftermarket part unless they prove the component directly caused the failure. Consult your dealer for specifics on your situation.
• Q: Do these Kooks headers require a tune after installation?
  A: Yes. A professional tune is strongly recommended after installing long tube headers. The significant improvement in exhaust flow changes air fuel ratios and requires ECM recalibration to achieve optimal power output and safe operation.
• Q: Will Kooks headers void my factory powertrain warranty?
  A: Under the Magnuson-Moss Warranty Act, a manufacturer cannot void your vehicle warranty simply because you installed an aftermarket part unless they prove the component directly caused the failure in question. Consult your dealer for specifics.
• Q: What warranty does Kooks provide?
  A: Kooks products are backed by a limited lifetime warranty to the original purchaser against defects in materials and workmanship. Racing and competition use applications may have specific warranty exclusions. Contact Kooks Performance directly for warranty details.
