Kooks Universal 3in ball and socket

Articulating Exhaust Connection That Eliminates Stress and Vibration at the Joint

The 7106S is a universal 3 inch stainless steel ball and socket exhaust connection designed to provide a flex capable, leak free junction in 3 inch performance exhaust systems. Ball and socket connections are the professional solution to the vibration, thermal expansion, and minor misalignment challenges that rigid pipe joints create over time. The 7106S allows the two exhaust sections to articulate relative to each other, absorbing drivetrain movement and chassis flex without transmitting stress to adjacent welds or flanges.

Kooks uses ball and socket connections throughout their vehicle specific exhaust kits for precisely this reason. This connection gives fabricators and builders access to that same connection technology as a standalone universal component, so it can be integrated into custom builds or used as a replacement when an existing ball and socket joint wears out. T304 stainless construction ensures the joint holds up to the corrosive and thermal demands of a performance exhaust environment. Combined with the appropriate swivel seal clamp (sold separately), this connection creates a secure, serviceable connection point in any 3 inch system.

Key Features

• Universal 3 inch stainless steel ball and socket exhaust connection
• Allows articulation to absorb vibration, thermal expansion, and minor misalignment
• T304 stainless steel construction for long service life
• Compatible with Kooks 3 inch ball and socket clamps and hardware
• Eliminates stress cracking at exhaust joints caused by rigid pipe connections
• Serviceable connection point for future exhaust work
• Weld in installation for a permanent, professional result

What's Included

• 1 x universal 3 inch ball and socket exhaust connection

Specifications

Frequently Asked Questions

What is a ball and socket exhaust connection?

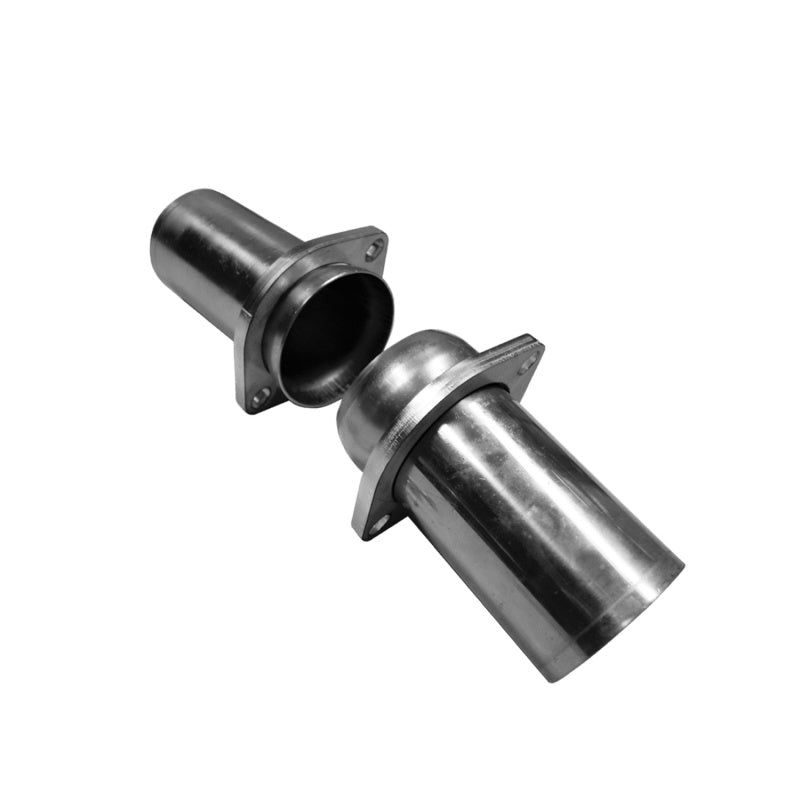

A ball and socket connection is a two part exhaust joint where one pipe end has a rounded ball profile that seats into a corresponding socket on the adjacent pipe. The design allows limited angular movement between the two pipe sections, absorbing vibration and thermal movement without rigid stress at the joint.

Why is a ball and socket connection better than a straight slip joint?
Ball and socket joints allow multi directional articulation, meaning they can handle movement in any plane rather than only axial movement. This makes them more effective at managing the combination of thermal expansion, engine torque movement, and road vibration that a performance exhaust system experiences.

What clamp is used with this connection?
The Kooks JI-K61003 3 inch swivel seal clamp is designed to retain the ball and socket joint of this connection. It is sold separately and is the recommended clamp for this connection.

Is this connection weld in or slip on?
This connection is a weld in component. One end is welded to each adjacent exhaust pipe section to create the articulating joint at that location.

What size exhaust pipe does this connection work with?
This connection is designed for 3 inch exhaust systems. Both mating pipes should be 3 inch tubing.

Will the ball and socket connection leak exhaust gases?
When properly clamped with the appropriate swivel seal clamp, this connection creates a sealed connection that does not leak exhaust gases. The articulating design maintains sealing even as the joint moves through its range of motion.

Can I use this connection anywhere in the exhaust system?
Yes. Ball and socket connections can be placed at any point in the exhaust path where a flexible joint is beneficial, including between headers and mid pipe, between mid pipe sections, or between mid pipe and muffler.

Is this connection stainless steel?
Yes. This connection is constructed from T304 stainless steel, providing corrosion resistance and durability in the high temperature exhaust environment.

How does this connection compare to a flex pipe connector?
Ball and socket connections typically provide a cleaner, more durable articulating joint than braided flex pipe. Flex pipe can crack over time from repeated movement, whereas the machined ball and socket interface maintains its articulation range without degrading.

Is this connection sold as a single unit?
Yes. This connection is sold as a single ball and socket connection. For a dual exhaust system, two units would be needed.

Installation Instructions

1. Determine the location in the exhaust system where the articulating connection is desired.
2. Cut the exhaust tubing at that location, allowing space for this connection plus the swivel seal clamp.
3. Weld one half of the ball and socket assembly to each adjacent pipe end.
4. Seat the ball end into the socket end and secure with the Kooks JI-K61003 swivel seal clamp, torquing to the clamp specification.
5. Verify the joint articulates freely and that the clamp is secure before returning the vehicle to service.
6. Check for exhaust leaks after the first startup and heat cycle.
