OE Replacement Exhaust Engineered for the 6.7L Power Stroke

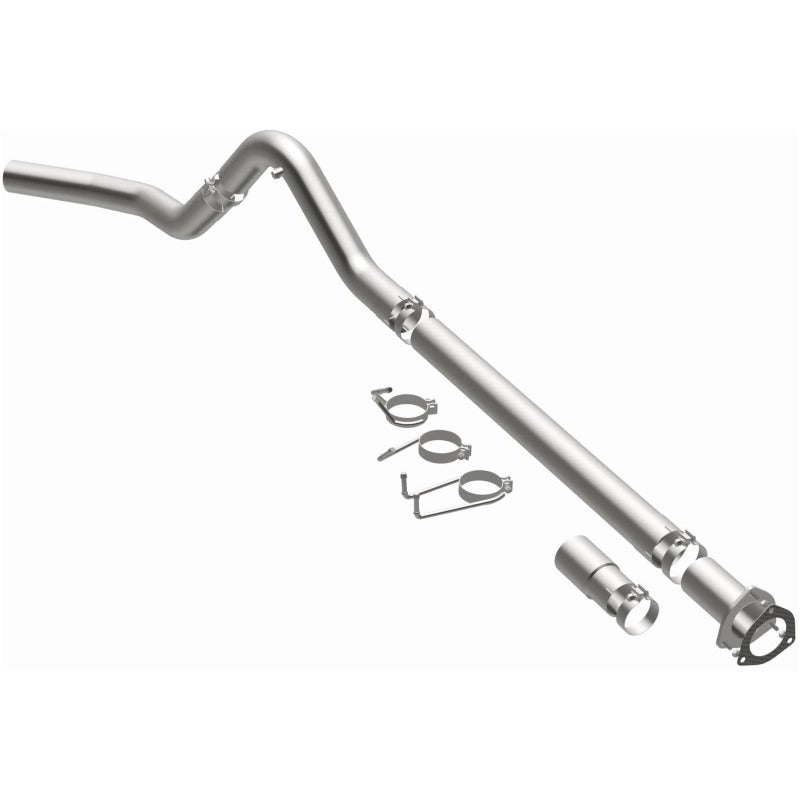

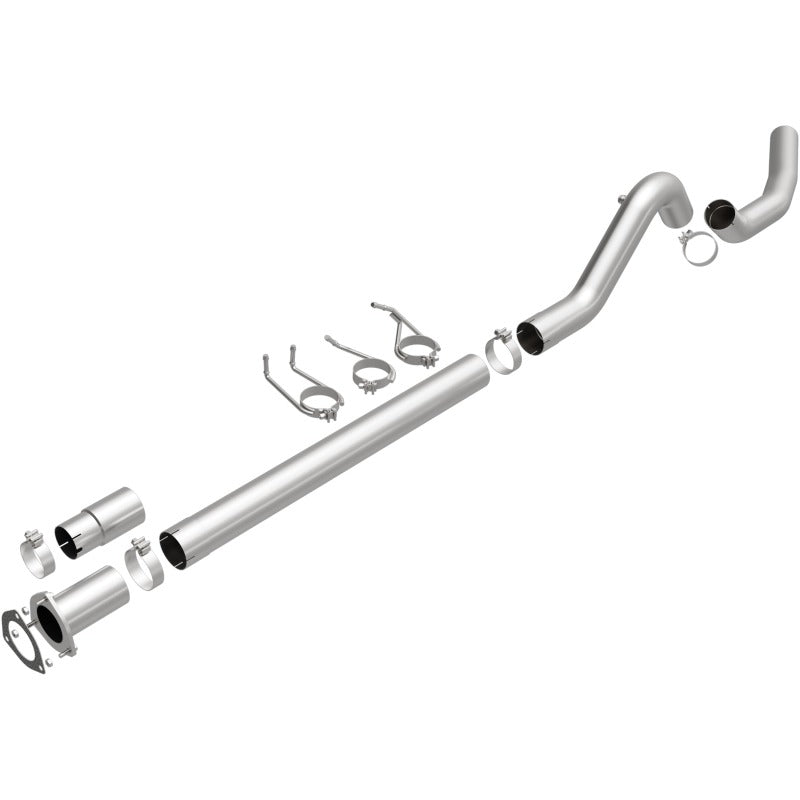

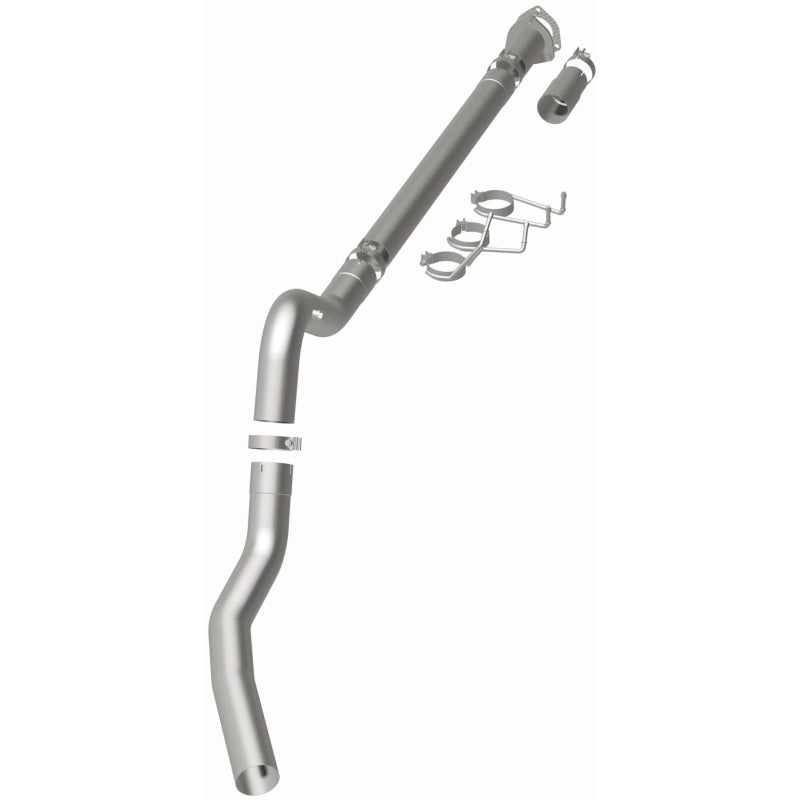

The MagnaFlow BRExhaust Direct-Fit Replacement Exhaust Kit 106-0748 takes the guesswork out of replacing a tired, rusted, or damaged factory exhaust on your 2008-2022 Ford F-250 or F-350 Super Duty 6.7L diesel. This bolt-on kit interchanges with OE part FC3Z-5230-B and delivers a reliable, high-quality alternative to the stock system without disturbing emissions equipment, keeping your truck street legal and inspection ready.
Precision mandrel-bent 4-inch aluminized steel pipes provide superior flow over the crush-bent tubing common in budget replacement kits, while the multi-piece design routes cleanly around the chassis for smooth DIY installation. Everything needed for a complete cat-back replacement, all gaskets, clamps, and band-clamp hangers, is included in the box.
Key Features
- Direct-fit OE replacement, interchanges with Ford FC3Z-5230-B
- 4-inch mandrel-bent aluminized steel piping for maximum flow
- Multi-piece bolt-on design, no welding or fabrication required
- Standard replacement muffler delivers OE sound profile
- OEM exit location with single 4-inch natural finish tip
- Leaves all emissions equipment intact
- Backed by a 2-year limited warranty
Hardware Included
- 3 x 4-inch band clamps
- 1 x 3.5-inch band clamp
- 3 x 4-inch band clamp hangers
- 1 x 3-bolt gasket
- 3 x bolts, 3 x nuts
Specifications
- Main Piping Diameter: 4 inch
- Pipe Material: Aluminized Steel
- Muffler Type: Standard Replacement
- Exit Style: OEM Location
- Inlet Type: Bolt On
- Tip Quantity: 1, Natural Finish
- Catalytic Converter Included: No
- Series: BRExhaust Direct-Fit
Fitment
Engineered for 2008-2022 Ford F-250 Super Duty and F-350 Super Duty equipped with the 6.7L Power Stroke V8 diesel, covering XL, XLT, Lariat, King Ranch, Platinum, and Limited trims.
Installation Instructions
- Park the truck on a level surface, allow the exhaust to cool completely, then chock the wheels and safely raise and support the chassis.
- Spray penetrating lubricant on factory exhaust hangers, clamps, and flange bolts, then allow it to soak.
- Disconnect the factory exhaust at the rear of the last catalytic converter using the 3-bolt flange.
- Support the OE muffler and tailpipe assembly, free the rubber isolators from the chassis hangers, and remove the stock system.
- Loosely assemble the 106-0748 components on the ground in the order shown in the supplied diagram.
- Position the new front section against the cat flange using the supplied 3-bolt gasket, bolts, and nuts, leaving the hardware finger tight.
- Install each section in sequence, sliding the 4-inch band clamps over each connection point.
- Engage the band clamp hangers into the factory rubber isolators along the chassis.
- Align the tip for proper clearance from the body, frame, and spare tire, then verify all pipes are parallel and level.
- Working from front to back, tighten the 3-bolt flange to OE specification, then torque each band clamp evenly.
- Start the engine, check for leaks at every joint, lower the vehicle, and road test.
