SKU: MR10679050544B | UPC: 191682009723

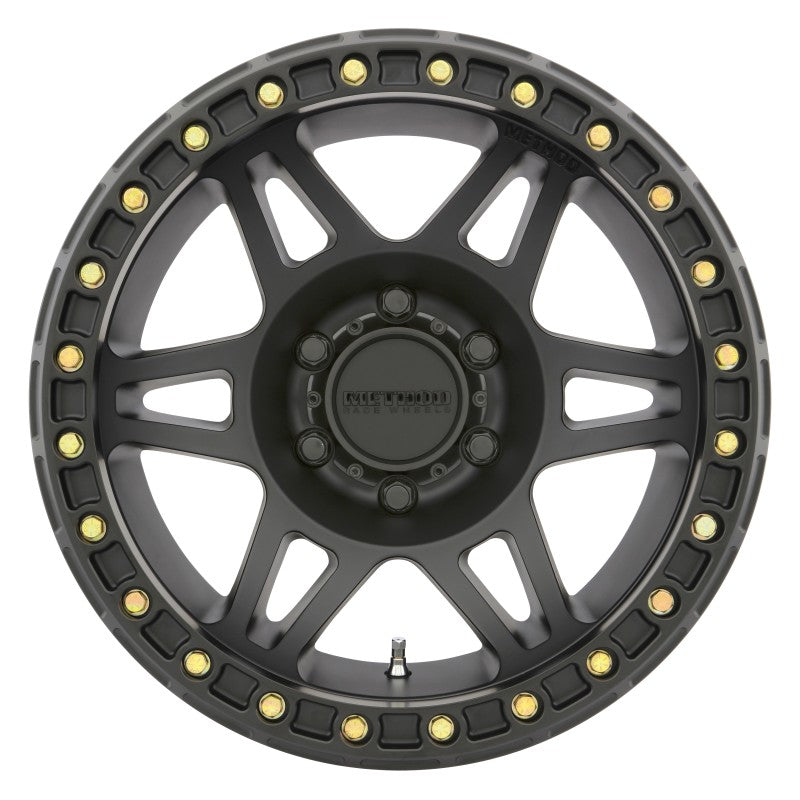

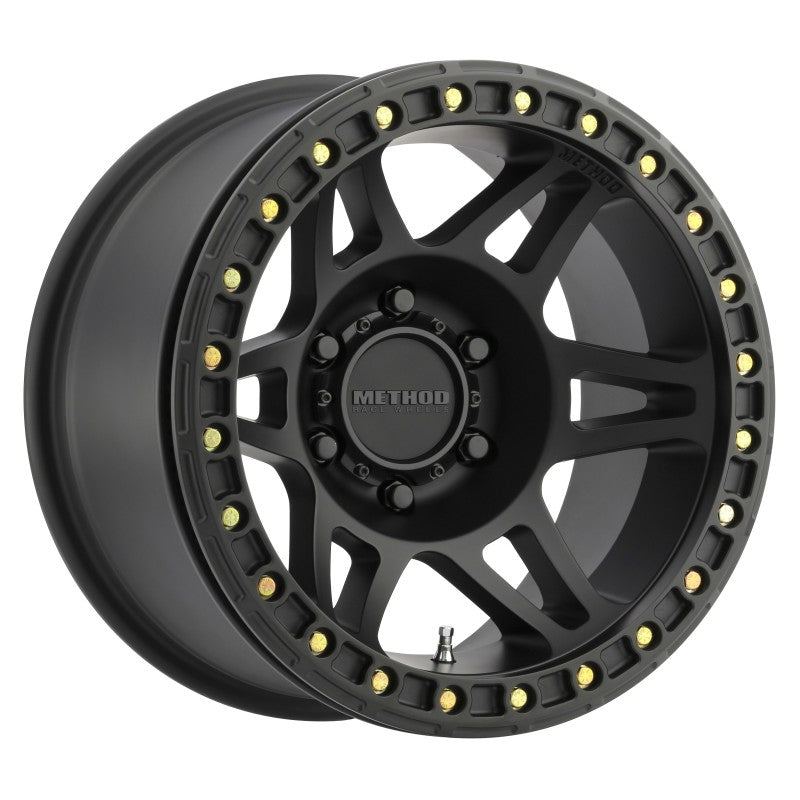

Method MR106 Beadlock 17x9 -44mm Offset 5x5 71.5mm CB Matte Black w/BH-H24125 Wheel for Jeep Wrangler YJ TJ JK JL Gladiator 1987-2024
The Method MR106 Beadlock wheel delivers rugged strength for off-road driving on Jeep Wrangler YJ TJ JK JL and Gladiator models from 1987 to 2024. This 17x9 inch cast aluminum wheel with -44mm offset pushes wheels outward for better stability and tire clearance on rocky trails. The true beadlock ring locks tires in place at low pressures to maintain grip in demanding conditions.
Key Features
- True Beadlock Design: Bolted ring with BH-H24125 hardware clamps tire bead securely allowing safe low-pressure running for maximum traction on loose terrain
- Aggressive Stance: -44mm offset and 17x9 width create wide track for improved handling and resistance to rollover on steep inclines
- Precise Fitment: 5x127 bolt pattern and 71.5mm center bore ensure hub-centric mounting on Jeep axles without adapters
- Durable Matte Black Finish: Resists corrosion and chips from rocks while giving clean stealth look that hides trail damage
- Lightweight Strength: Cast A356 aluminum construction weighs 42.6 lbs balancing rigidity for high-speed desert runs and rock crawling
Product Notes
- Inspect beadlock ring bolts monthly and torque to 25 ft-lbs to maintain tire retention
- Avoid tire pressures above 15 psi with beadlock engaged to prevent ring damage
- Box dimensions 19x19x11 inches per wheel for secure transit
Installation Notes
- Professional installation recommended.
- Torque beadlock ring bolts to 25 ft-lbs dry using included BH-H24125 hardware in star pattern
- Compatible with factory lug nuts. no hub rings needed due to 71.5mm center bore match
This Part Fits
| Year | Make | Model | Submodel |
|---|---|---|---|
| 1987-1995 | Jeep | Wrangler | YJ All |
| 1997-2006 | Jeep | Wrangler | TJ All |
| 2007-2018 | Jeep | Wrangler | JK Sport Rubicon Sahara |
| 2018-2024 | Jeep | Wrangler | JL Sport Rubicon 392 Sahara |
| 2020-2024 | Jeep | Gladiator | JT Sport Rubicon Overland |
Why Choose Method?
- Method builds wheels trusted in Ultra4 King of the Hammers racing
- Every wheel undergoes 100% heat treatment for impact resistance
- Engineered in the USA with finite element analysis for real-world abuse
Frequently Asked Questions
-
Q: Will this fit my 2015 Jeep Wrangler JK Rubicon?
A: Yes the 5x127 bolt pattern and 71.5mm center bore match perfectly on all JK models including Rubicon with no spacers required -
Q: What material and finish does the MR106 use?
A: Cast from A356 aluminum T6 heat-treated with matte black powder coat that withstands UV fading and rock abrasion -
Q: What is the warranty and install process?
A: Lifetime structural warranty against defects. install ring hardware first torque to 25 ft-lbs then mount tire and wheel
Shipping & Handling
- Method: UPS Ground or FedEx
- Availability: In stock - ships same or next business day
- Packaging: Individual cardboard box 19x19x11 inches
- Weight: 42.6 lbs per wheel
