SKU: MMINT-WRX-22SLRD | UPC: 840197721100

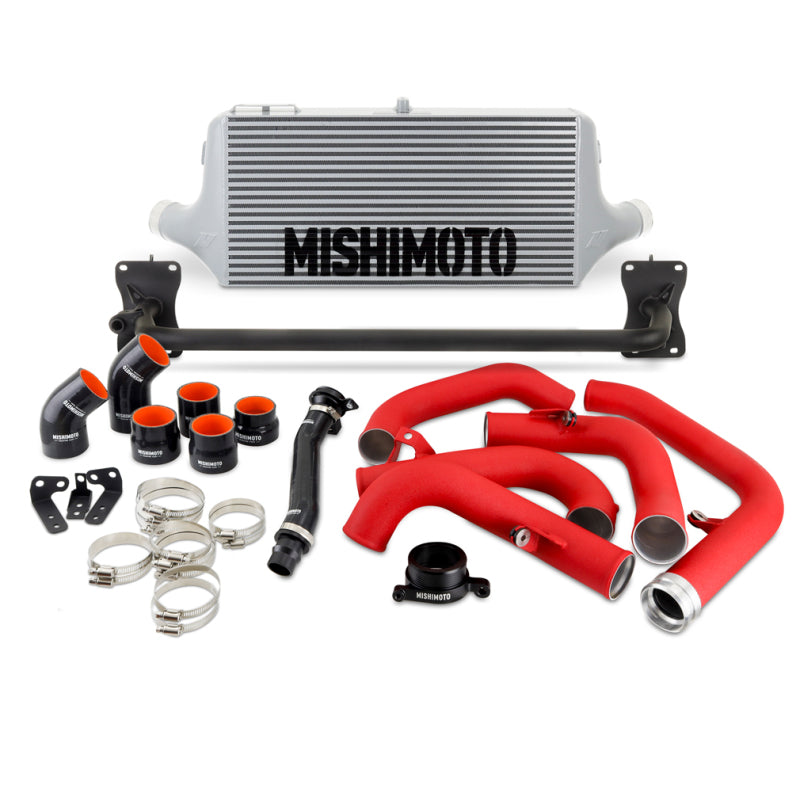

Mishimoto 2022+ WRX Front Mount Intercooler Kit SL Core WRD Pipes
This Mishimoto Performance Front-Mount Intercooler Kit fits 2022-2024 Subaru WRX models and replaces the stock heat-soak-prone unit with a larger SL core and high-flow WRD pipes. Dyno testing shows gains of 12 horsepower and 11.8 lb-ft of torque while dropping outlet temperatures to within 10 degrees of ambient air. The front-mount design maximizes airflow through the 24.5 x 11.65 x 4.0 inch core for consistent cooling on track or street.
Key Features
- Large SL Core: 24.5 x 11.65 x 4.0 inch bar-and-plate core positioned in the lower bumper grille pulls in maximum airflow for effective charge air cooling under high boost.
- CFD-Optimized End Tanks: Cast aluminum end tanks with optimized internal geometry promote even flow distribution and reduce turbulence for efficient heat exchange.
- High-Flow WRD Pipes: ID-matched 2.5 inch piping minimizes restrictions and maintains boost pressure with only a 1.5 PSI drop across the system.
- Proven Power Gains: Delivers 12 whp and 11.8 wtq increases on stock tune with outlet temps staying within 10F of ambient even after repeated pulls.
- Complete Kit: Includes intercooler core assembly WRD pipes washer tank relocation kit bumper support bar and all hardware for a direct bolt-on upgrade.
Product Notes
- Retains factory side impact bars and tow hook mounting for added structural integrity on street and track.
- Washer fill neck relocation kit simplifies maintenance while ensuring a clean underhood appearance.
- LTL shipping required due to oversized packaging measuring 40 x 20 x 15 inches.
Installation Notes
- Professional installation recommended.
- Bolt-on design requires no cutting or modification to bumper or body panels.
- All necessary brackets hardware and silicone couplers provided for compatibility with stock turbo and components.
This Part Fits
| Year | Make | Model | Submodel |
|---|---|---|---|
| 2022-2024 | Subaru | WRX | Base |
| 2022-2024 | Subaru | WRX | GT |
| 2022-2024 | Subaru | WRX | Limited |
| 2022-2024 | Subaru | WRX | Premium |
Why Choose Mishimoto?
- Direct-fit engineering tested on real-world dyno and track conditions for reliable results.
- Cast aluminum construction with TIG-welded assembly withstands high boost and heat cycles.
- Backed by Mishimoto Lifetime Warranty against defects in materials and workmanship.
Frequently Asked Questions
-
Q: Does this kit fit all 2022+ Subaru WRX trims?
A: Yes it fits 2022-2024 Subaru WRX Base GT Limited and Premium models with no modifications required. -
Q: What materials are used in construction?
A: Features a bar-and-plate core with cast aluminum end tanks and mandrel-bent aluminum WRD pipes for durability and heat dissipation. -
Q: What warranty coverage is provided?
A: Covered by Mishimoto Lifetime Warranty for original purchaser covering defects in materials or workmanship.
Shipping & Handling
- Method: LTL Freight
- Availability: In stock - ships same or next business day
- Packaging: Oversized box 40 x 20 x 15 inches
- Weight: 52.9 lbs
