SKU: MMSPF-10ANBK | UPC: 748354811698

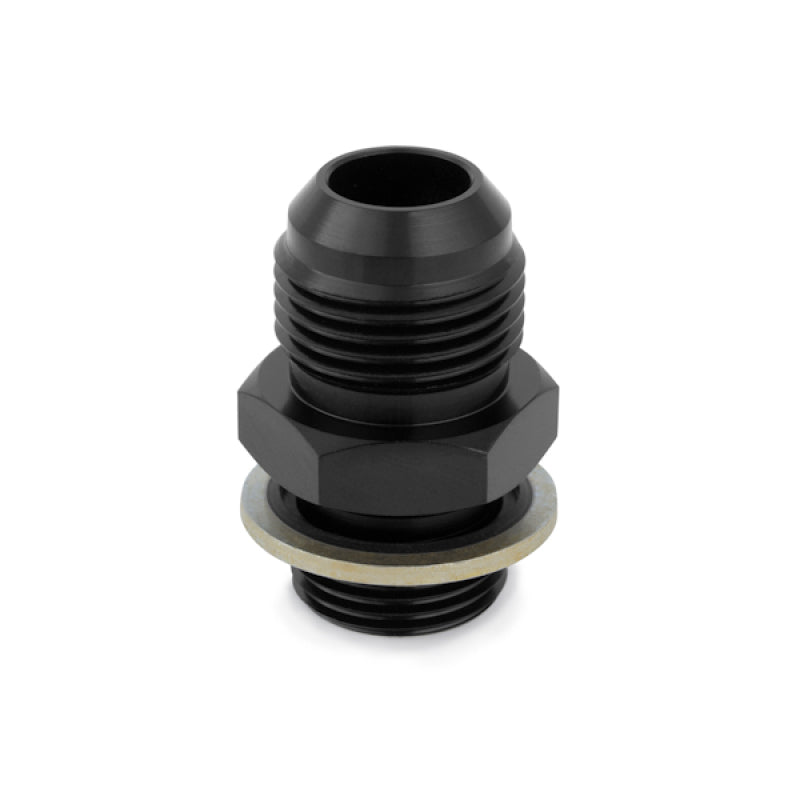

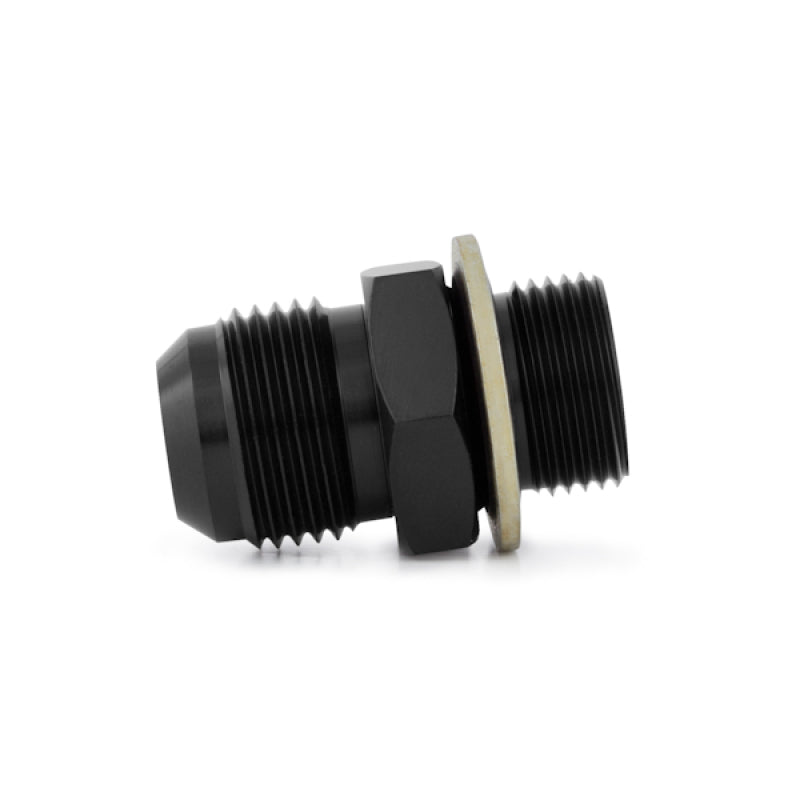

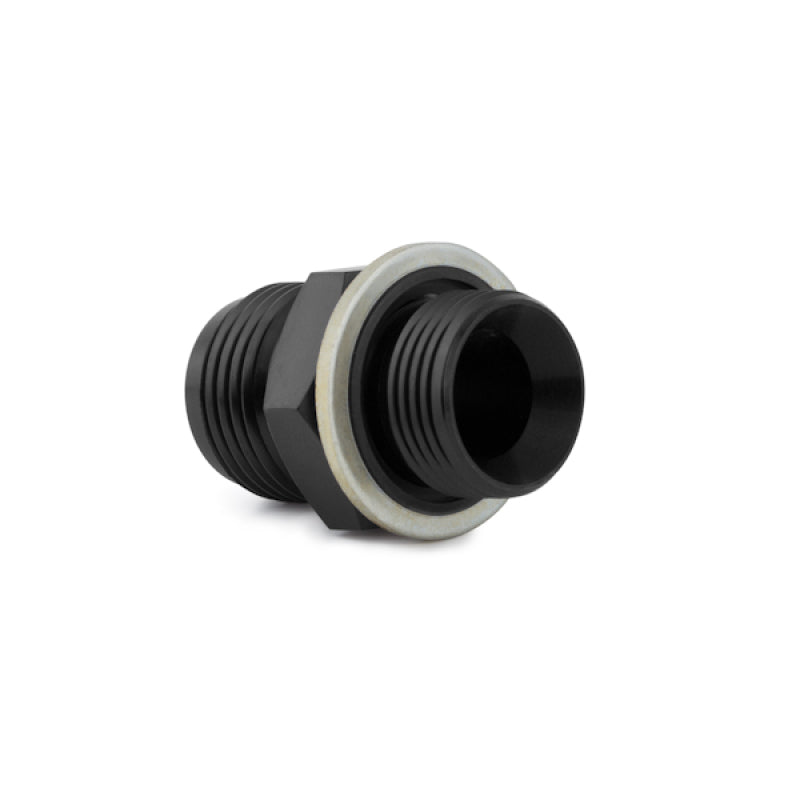

Mishimoto Sandwich Plate Fitting M20 x -10AN Black - Universal
This Mishimoto sandwich plate fitting connects M20 x 1.5 sensor ports to -10AN oil lines on performance sandwich plates. It fits universal applications on vehicles equipped with compatible Mishimoto or aftermarket sandwich plates for oil pressure or temperature monitoring and oil cooler setups. The durable design ensures reliable oil flow and pressure readings under high-performance conditions.
Key Features
- CNC-Machined 6061 Aluminum: Provides strength and lightweight performance to handle engine oil pressures without failure.
- Black Anodized Finish: Resists corrosion and wear from oil and heat for long-term reliability in engine bays.
- M20 x 1.5 and -10AN Threads: Precise threading matches common sandwich plate ports and AN hose fittings for direct bolt-on installation.
- Dowty Oil Seal Included: Creates a tight seal to prevent leaks at high oil pressures and temperatures.
- Lifetime Warranty: Backed by Mishimoto for peace of mind in demanding motorsport environments.
Product Notes
- Inspect threads for cleanliness before installation to ensure proper sealing.
- Avoid over-tightening to prevent damage to aluminum threads.
- Store in a dry place to maintain anodized finish integrity.
Installation Notes
- Professional installation recommended.
- Apply thread sealant to -10AN male threads if connecting to female AN fittings.
- Compatible with all Mishimoto sandwich plates featuring M20 x 1.5 ports. torque to 20-25 ft-lbs.
This Part Fits
| Year | Make | Model | Submodel |
|---|---|---|---|
| 2004-2021 | Subaru | Impreza WRX STI | All |
| 2008-2014 | Subaru | Impreza WRX STI | Hatchback/Sedan |
| 2015-2021 | Subaru | WRX STI | All |
| 2007-2013 | BMW | 335i | Coupe/Sedan |
| 2013-2019 | Ford | Focus ST | All |
| 2015-2021 | Volkswagen | Golf GTI | MK7 |
| Universal | - | All Vehicles | With M20x1.5 Sandwich Plate Ports |
Why Choose Mishimoto?
- Proven leader in automotive cooling and oil system components.
- Every part undergoes rigorous dyno and track testing.
- Precision engineering ensures exact fit and function.
Frequently Asked Questions
-
Q: Will this fitting work with my Subaru STI sandwich plate?
A: Yes, it threads directly into M20 x 1.5 ports on Mishimoto sandwich plates for 2004-2021 STI models and similar setups. -
Q: What material is used and does it include seals?
A: Constructed from 6061 aluminum with black anodizing. includes one Dowty oil seal for leak-free performance. -
Q: What is the warranty and installation process?
A: Lifetime warranty covers defects. install by threading into sandwich plate port and attaching -10AN hose, professional help advised for first-time users.
Shipping & Handling
- Method: UPS Ground or USPS Priority
- Availability: In stock - ships same or next business day
- Packaging: Compact Mishimoto retail box, 2 x 2 x 1.5 inches
- Weight: 0.11 lbs
