Secure compatible M14x1.5 wheel studs
The Mishimoto MMLG-M14-24L steel locking lug nut set combines standard and locking wheel hardware for vehicles equipped with M14x1.5 wheel studs. The black variant uses one-piece SCM435 steel construction, an open-ended design for extended studs, and a 7-point locking pattern.
Key Features
- 24-piece set with standard and locking lug nuts.
- One-piece SCM435 steel construction resists swelling and cracking.

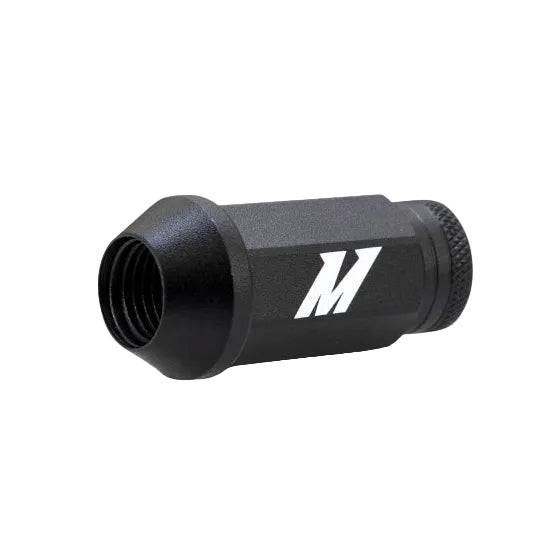

- Four 7-point locking nuts help deter wheel theft.
- Open-ended design accommodates extended wheel studs.
- 19mm hex size fits a wide range of aftermarket wheels.
- Includes non-marring sockets to help protect wheel finishes.
- Backed by the Mishimoto Lifetime Warranty.
Fitment
| Application | Requirement |
|---|---|
| Wheel studs | M14x1.5 threads |
| Vehicle fitment | Universal accessory vehicle make and model applications are not listed by Mishimoto |
| Wheel interface | Confirm the wheel seat, stud engagement, and clearance before installation |
Specifications
| Detail | Value |
|---|---|
| Brand | Mishimoto |
| MPN | MMLG-M14-24L |
| Product type | Steel locking lug nut set |
| Material | SCM435 steel |
| Thread size | M14 x 1.5 |
| Length | 2 inches |
| Diameter | 0.94 inches |
| Weight | 2.33 ounces |
| Hex size | 19mm |
| Locking pattern | 7-point |
| UPC | 840197725320 |
| Warranty | Mishimoto Lifetime Warranty |
| Prop 65 | Not listed by Mishimoto |

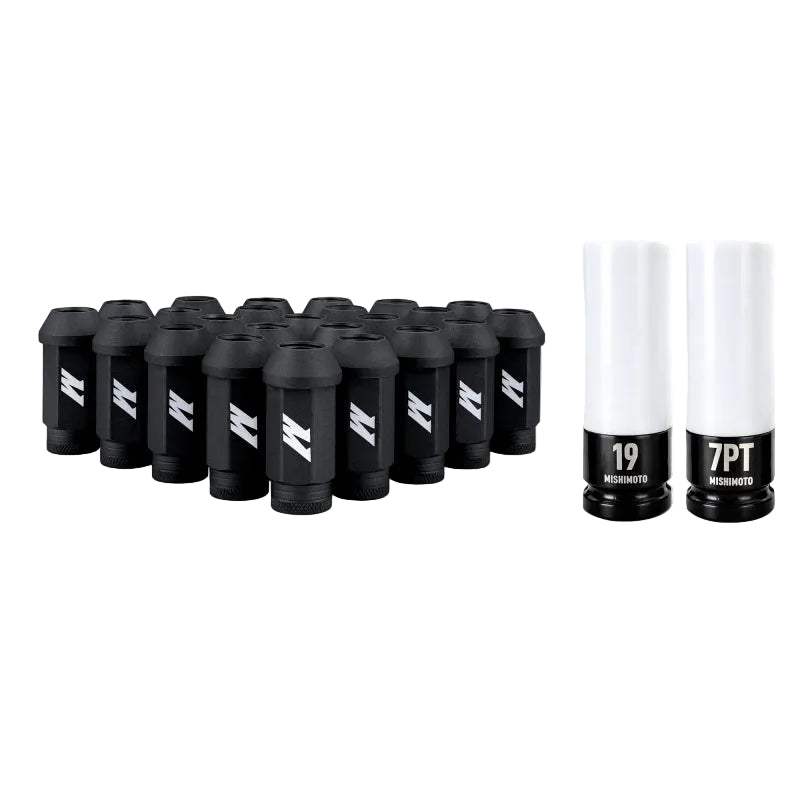

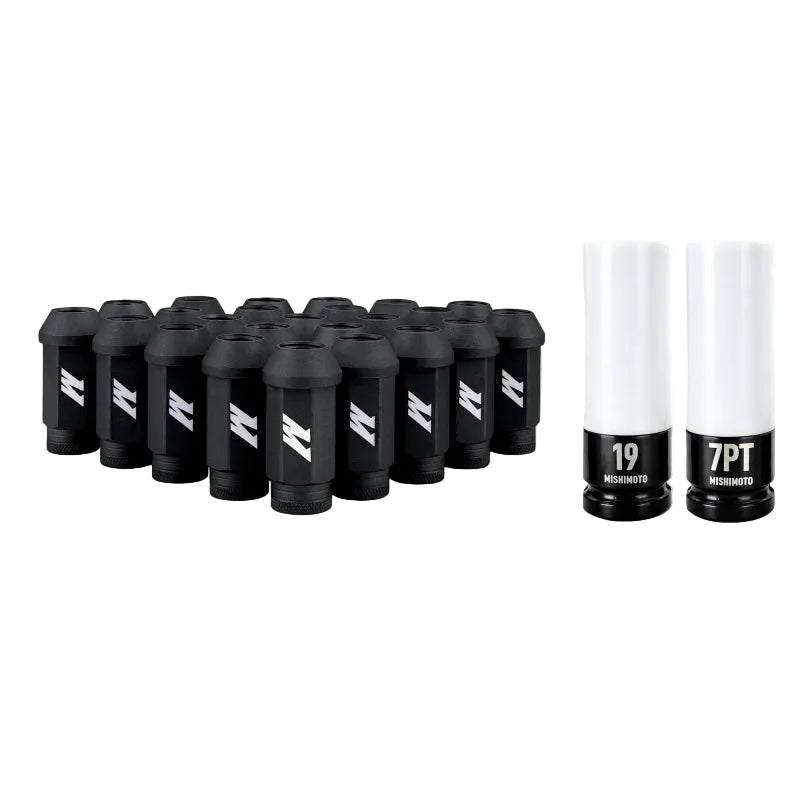

What's Included
- 20 M14x1.5 steel lug nuts.
- Four locking lug nuts.
- Two non-marring sockets.
About Mishimoto
Mishimoto designs automotive performance and maintenance parts, including wheel hardware intended for compatible aftermarket applications. Use the vehicle manufacturer's torque specification and protect the finish during installation.
FAQ
What is the MMLG-M14-24L?
It is the manufacturer model for this steel locking lug nut set.
What wheel studs does this set fit?
It fits vehicles equipped with M14x1.5 wheel studs when the wheel seat and clearance are also compatible.
How many pieces are included?
The set contains 24 lug nuts and two non-marring sockets.
What material are the lug nuts made from?
They use SCM435 steel with one-piece construction.
Does the set include locking hardware?
Yes. Four of the lug nuts use a 7-point locking pattern.
Can the open-ended design accommodate extended studs?
Yes. The open-ended design is intended to accommodate extended wheel studs.
What warranty applies?
Mishimoto provides a Lifetime Warranty for this product.
What should be checked before installation?
Confirm thread size, wheel-seat compatibility, stud engagement, and clearance, then use the vehicle manufacturer's torque specification.
Install Instructions
- Confirm that the vehicle uses M14x1.5 wheel studs and that the wheel seat and stud engagement are compatible.
- Hand-start each lug nut to avoid cross-threading and verify that the open-ended design has adequate clearance.
- Install the locking nuts and retain the matching non-marring socket in a secure location.
- Tighten the lug nuts in the vehicle manufacturer's specified sequence using the vehicle manufacturer's torque specification.
- Do not use power tools that may damage the finish, and recheck installation according to the vehicle manufacturer's service guidance.
