SKU: 16-98-2260

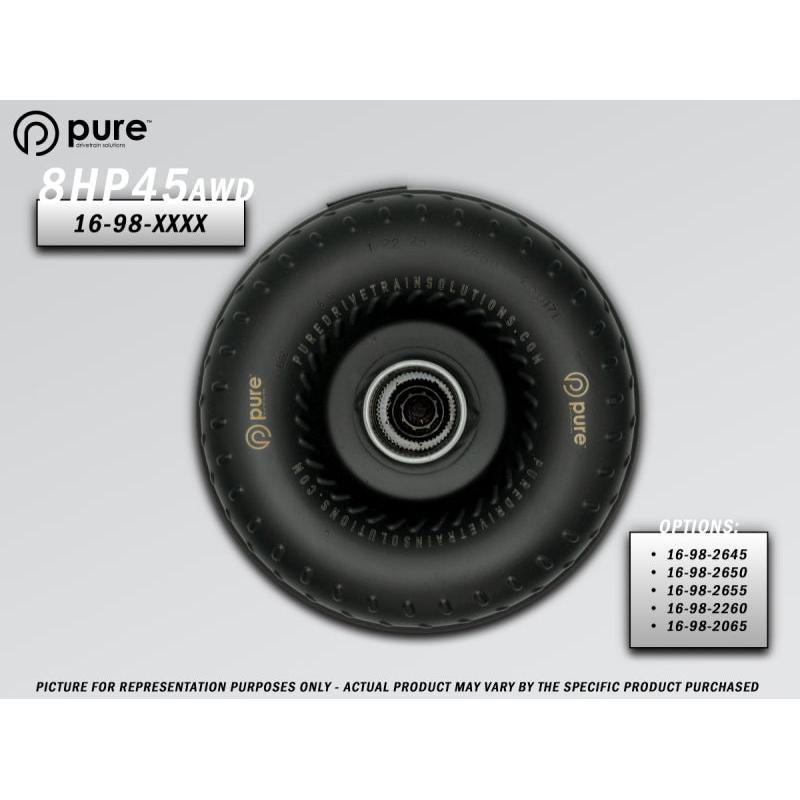

PDS 8HP45 High Performance Billet Race Torque Converter - 22/60 Stator - AWD 2011-2023 BMW X3 X4 X5 X6 xDrive Dodge Charger AWD
This PDS torque converter upgrades ZF 8HP45 AWD transmissions in high-performance BMW X3 X4 X5 X6 xDrive models and Dodge Charger AWD. The billet design handles extreme power while the 22/60 stator delivers aggressive stall for instant throttle response and torque multiplication. Ideal for drag racing street builds and track use in tuned vehicles.
Key Features
- Billet Front Cover & Piston: Forged 6061-T6 aluminum withstands 1500+ HP without flexing or ballooning for reliable power transfer
- 22/60 Stator: Multi-disc lockup with high stall 2200-6000 RPM range boosts low-end torque improves spool-up on turbo N55 S55 engines
- TIG Welded Impeller & Turbine: Full billet furnace-brazed fins resist cavitation at high RPM ensures smooth engagement
- Billet Lockup Clutch: Oversized multi-plate system provides firm lockup reduces slip maintains efficiency at cruise
- Precision Balanced: SFI 29.2 certified dynamically balanced to 5000 RPM tested for zero vibration in race conditions
Product Notes
- Direct replacement for OEM torque converter no core charge required
- Hand-built in USA with SFI certification for drag strip safety
- Special order item expect 5-10 business day lead time for assembly
Installation Notes
- Professional installation recommended.
- Transmission must be removed converter fully seated 1 inch past pump before flexplate bolts torqued to spec
- Compatible with stock or upgraded 8HP45 flexplates uses 27-spline input shaft
This Part Fits
| Year | Make | Model | Submodel |
|---|---|---|---|
| 2011-2017 | BMW | X3 | xDrive28i xDrive35i |
| 2014-2018 | BMW | X4 | xDrive28i xDrive35i |
| 2011-2018 | BMW | X5 | xDrive35i xDrive40i |
| 2015-2019 | BMW | X6 | xDrive35i xDrive40i xDrive50i |
| 2012-2016 | BMW | 535i | xDrive Gran Turismo |
| 2013-2019 | BMW | 328i | xDrive Sedan Sports Wagon |
| 2014-2023 | Dodge | Charger | AWD SE SXT GT 3.6L |
| 2014-2023 | Chrysler | 300 | AWD Touring Limited 3.6L |
Why Choose PDS?
- 20+ years building ZF torque converters for NHRA Pro Mod drag racing
- Every unit pressure leak spin tested before shipping
- Custom stall options available for specific engine turbo setups
Frequently Asked Questions
-
Q: Does this fit my BMW X5 xDrive35i with N55 engine?
A: Yes direct bolt-in for all ZF 8HP45 AWD in 2011-2018 X5 xDrive35i confirms transmission code first -
Q: What materials are used in construction?
A: Billet 6061-T6 aluminum cover piston full TIG-welded steel impeller turbine furnace brazed shells -
Q: What is the warranty and install process?
A: 12-month unlimited mileage warranty professional install required fluid pump prime check during fill
Shipping & Handling
- Method: UPS Ground Freight Class 70
- Availability: In stock - ships same or next business day
- Packaging: Heavy-duty double-wall box 20 x 20 x 12 inches foam protected
- Weight: 38 lbs
