SKU: 16-99-2645

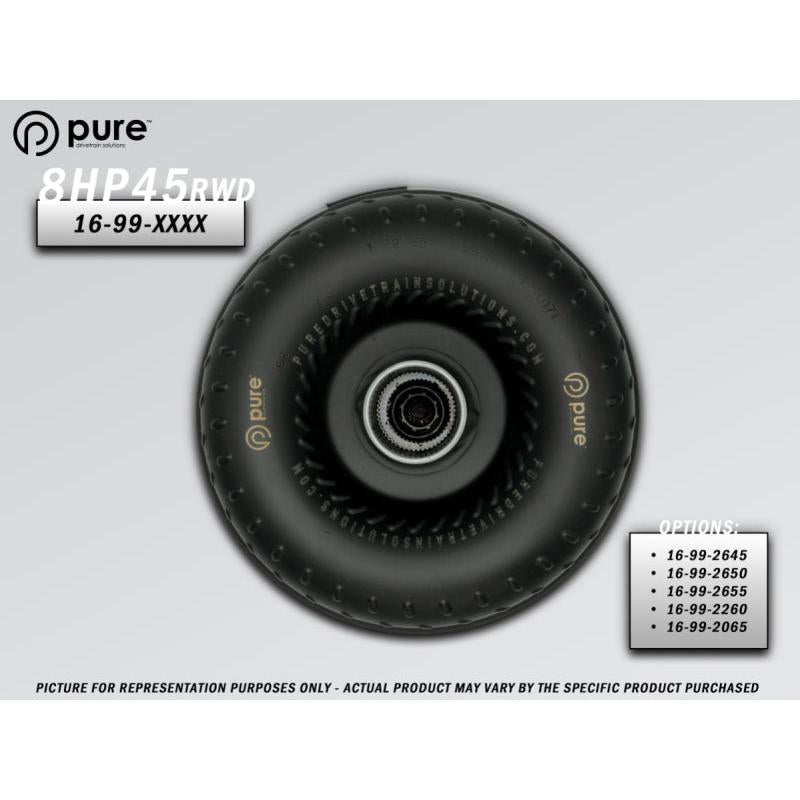

PDS 8HP45 High Performance Billet Race Torque Converter - 26/45 Stator - RWD 2011-2023 BMW 3/4 Series Dodge Challenger Charger Chrysler 300
This PDS torque converter upgrades ZF 8HP45 transmissions in RWD performance vehicles like BMW 3 Series 335i Dodge Challenger R/T Charger R/T and Chrysler 300C. The billet design handles 1000+ HP for drag strip abuse while improving launch and lockup control. Direct bolt-in replacement delivers immediate gains in street and track applications.
Key Features
- Billet 6061-T6 Aluminum Cover: Resists flex and ballooning under extreme torque for reliable high horsepower operation
- 26/45 Multi-Phase Stator: Custom pitch optimizes stall speed from 2600-4500 RPM matching modified engines for quicker et times
- Furnace Brazed Impeller and Turbine: 100% electron beam welded fins prevent separation during hard launches and shifts
- Billet Lockup Piston: Multi-disc clutch applies faster with higher holding power eliminating slip in racing conditions
- Precision TIG Welded Hubs: SFI 29.3 certified balance ensures vibration-free operation at 8000+ RPM
Product Notes
- Designed as direct replacement for stock ZF 8HP45 torque converter no modifications needed
- Requires ECU tune for optimal stall and lockup programming after install
- Special order item expect 3-5 business days processing
Installation Notes
- Professional installation recommended.
- Transmission must be removed converter slides into pump with 1.5 inches stickout
- Compatible with OEM flexplate and starter no hardware changes required
This Part Fits
| Year | Make | Model | Submodel |
|---|---|---|---|
| 2011-2019 | BMW | 3 Series | 328i 335i RWD |
| 2013-2020 | BMW | 4 Series | 428i 435i RWD |
| 2015-2023 | Dodge | Challenger | SXT R/T 3.6L 5.7L |
| 2015-2023 | Dodge | Charger | SE SXT R/T 3.6L 5.7L |
| 2015-2023 | Chrysler | 300 | Limited Touring C 3.6L 5.7L |
Why Choose PDS?
- Track proven in NHRA and heads-up racing classes
- Hand-built by US specialists with 20+ years transmission experience
- Every unit dyno tested and balanced to 0.25 grams
Frequently Asked Questions
-
Q: Will this fit my 2016 BMW 335i RWD with ZF 8HP45?
A: Yes direct bolt-in for all RWD 8HP45 applications including N55 engine swaps verify transmission code 8HP45 -
Q: What materials are used in construction?
A: Billet 6061-T6 aluminum cover chromoly hubs fully brazed steel elements for maximum strength -
Q: What warranty coverage applies?
A: 12-month unlimited mileage warranty against defects covers material and workmanship excludes abuse
Shipping & Handling
- Method: UPS Ground or Freight
- Availability: In stock - ships same or next business day
- Packaging: Double-wall cardboard box 18 x 18 x 12 inches
- Weight: 35 lbs product 42 lbs shipping
