SKU: 16-99-2655

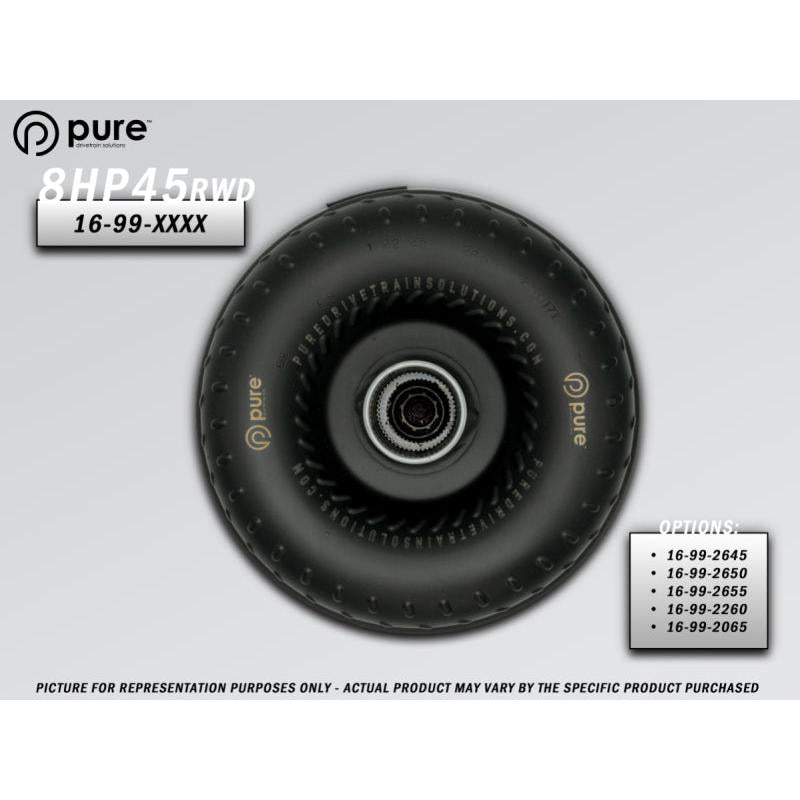

PDS 8HP45 High Performance Billet Race Torque Converter - 26/55 Stator - RWD 2011+
The PDS 8HP45 High Performance Billet Race Torque Converter with 26/55 stator upgrades RWD vehicles using ZF 8HP45 transmissions. It fits BMW 3 Series 328i 335i Dodge Charger Challenger 3.6L Chrysler 300 and more. Billet construction handles extreme torque with higher stall speeds for faster acceleration and track dominance.
Key Features
- Billet Aluminum Front Cover: Resists ballooning and flex under high horsepower for reliable high-RPM operation
- 26/55 Stator Design: Provides 2600-5500 RPM stall range for instant throttle response and low-end torque multiplication
- Furnace Brazed Fins: Leak-proof impeller and turbine assembly withstands aggressive launches without failure
- Billet Lock-Up Piston: Multi-disc clutch engages firmly for direct drive efficiency at cruising speeds
- 4340 Steel Pump Hub: Precision machined to prevent spline wear in high-stress racing environments
Product Notes
- Confirm ZF 8HP45 transmission and RWD configuration prior to purchase
- Use compatible ATF fluid like ZF Lifeguard 8 during service
- Oversized packaging protects against transit damage
Installation Notes
- Professional installation recommended.
- Remove transmission to access and replace torque converter
- Matches stock 27-spline input shaft and flexplate bolt pattern
This Part Fits
| Year | Make | Model | Submodel |
|---|---|---|---|
| 2012-2019 | BMW | 3 Series | 328i 335i sDrive |
| 2014-2020 | BMW | 4 Series | 428i 435i sDrive |
| 2011-2017 | BMW | 5 Series | 528i 535i RWD |
| 2013-2017 | BMW | X3 | xDrive28i 35i RWD variants |
| 2011-2023 | Dodge | Charger | SE SXT 3.6L RWD |
| 2011-2023 | Dodge | Challenger | SXT 3.6L RWD |
| 2011-2023 | Chrysler | 300 | Touring Limited 3.6L RWD |
Why Choose PDS?
- Specializes in ZF transmission converters for BMW and Mopar platforms
- Race-tested in drag and circuit events for proven durability
- CNC-balanced assembly ensures vibration-free performance
Frequently Asked Questions
-
Q: Does this fit my BMW 335i with 8HP45?
A: Yes it bolts directly to 2012-2015 BMW 335i sDrive F30 with ZF 8HP45 RWD transmission spline and bolt pattern match -
Q: What materials are in the billet components?
A: 6061-T6 aluminum front cover billet lock-up piston and 4340 steel hubs for strength and heat resistance -
Q: What warranty coverage applies?
A: 12-month limited warranty against defects when installed by certified shop includes coverage for manufacturing flaws
Shipping & Handling
- Method: UPS Ground
- Availability: Special Order ships within 5-10 business days
- Packaging: Heavy-duty double-wall box 24 x 22 x 12 inches
- Weight: 75 lbs
