SKU: 16-85-2065

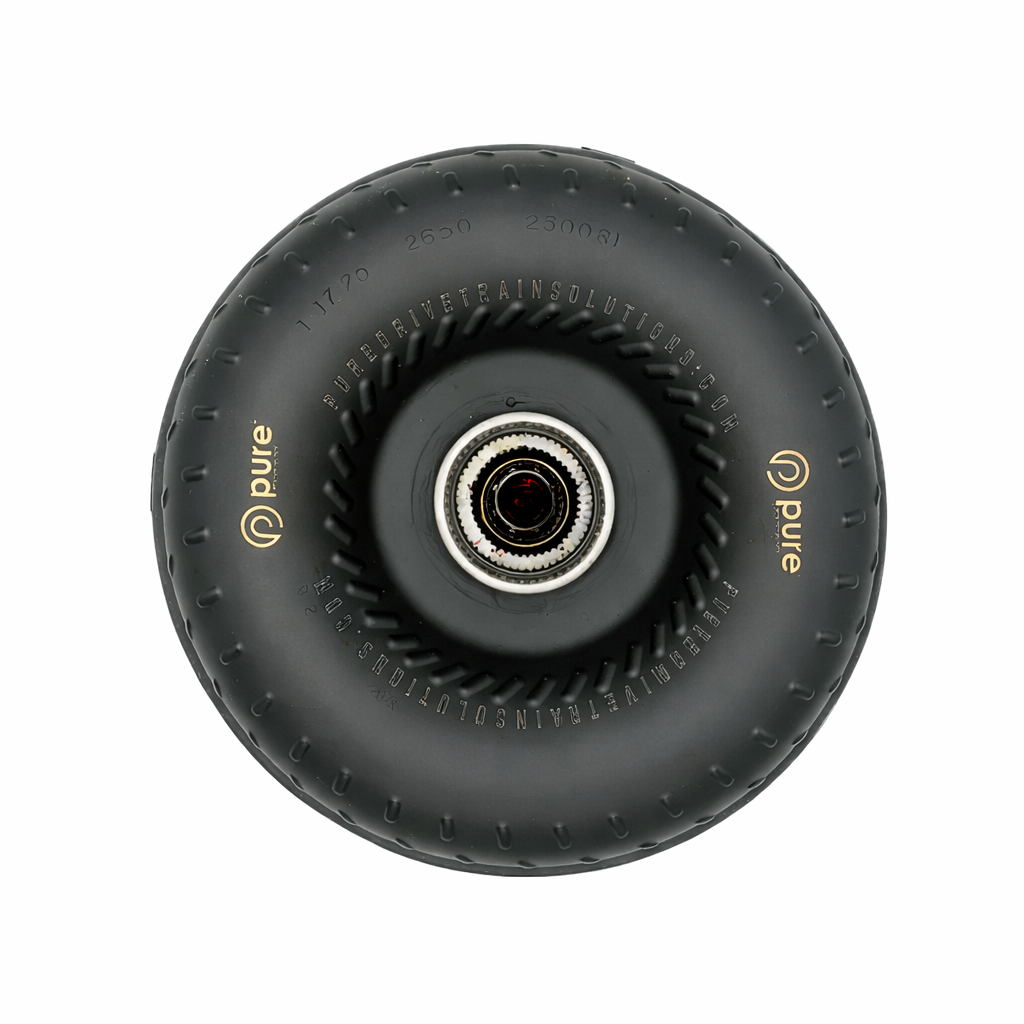

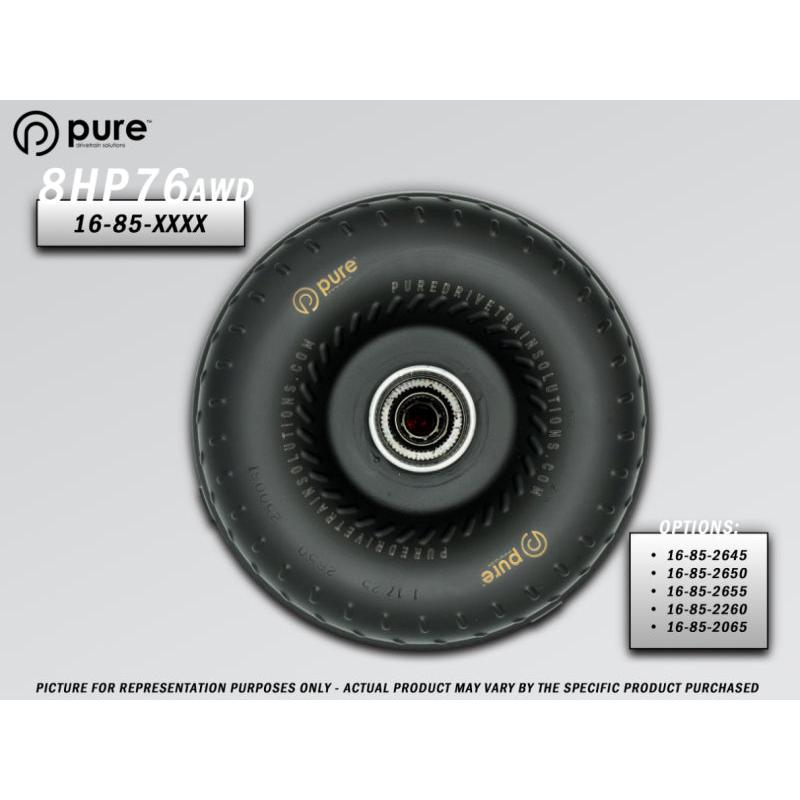

PDS 8HP76 High Performance Billet Race Torque Converter - 20/65 Stator - AWD 2018-2023 BMW M5 M8 X5M X6M X3M X4M
The PDS 8HP76 high performance billet race torque converter delivers aggressive power transfer for ZF 8HP76 AWD transmissions. It fits 2018-2023 BMW M5 F90 M8 F92/F93 X5 M F95 X6 M F96 X3 M G01 X4 M G02 models with S63 B58 N63 engines. This unit features a 20/65 stator design for precise lockup control and higher RPM efficiency in racing conditions.
Key Features
- Billet Front Cover: CNC-machined billet steel withstands extreme torque up to 1200 ft-lbs without flexing or ballooning
- 20/65 Stator: Custom stator angles provide low slip at cruise and instant lockup for drag racing launches and road course pulls
- Multi-Disc Lockup Clutch: 9-friction disc clutch pack grips harder for direct drive feel and eliminates shudder under high power
- Furnace Brazed Fins: 100% brazed impeller and turbine extend fin life and resist heat failure in sustained high RPM use
- Precision Balanced: SFI-rated assembly balanced to 1500 RPM ensures vibration-free operation at 8000+ RPM redlines
Product Notes
- Special order production built to order for exact fitment
- No core charge required on exchange
- Handle with care during transport to protect pump drive hub
Installation Notes
- Professional installation recommended.
- Transmission must be fully disassembled for converter swap
- Direct bolt-in replacement using OEM pump stator splines and mounting studs
This Part Fits
| Year | Make | Model | Submodel |
|---|---|---|---|
| 2018-2023 | BMW | M5 | F90 xDrive |
| 2020-2023 | BMW | M8 | F92 Coupe xDrive F93 Convertible xDrive |
| 2019-2023 | BMW | X5 M | F95 |
| 2019-2023 | BMW | X6 M | F96 |
| 2020-2023 | BMW | X3 M | G01 xDrive |
| 2020-2023 | BMW | X4 M | G02 xDrive |
Why Choose PDS?
- 20+ years building ZF torque converters for BMW racing teams
- Hand-assembled in USA with OEM-grade materials for daily and track abuse
- Dyno-tested every unit for stall speed and lockup consistency
Frequently Asked Questions
-
Q: Will this fit my 2021 BMW M5 xDrive with ZF 8HP76?
A: Yes direct fit for all 2018-2023 F90 M5 xDrive models with factory ZF 8HP76 AWD transmission -
Q: What materials are used in construction?
A: Billet steel front cover 6061-T6 aluminum piston furnace brazed shells and GP4-HD lockup frictions -
Q: What is the warranty and install process?
A: 1-year unlimited mileage warranty on defects requires professional install invoice and no abuse
Shipping & Handling
- Method: UPS Freight Ground or FedEx Freight
- Availability: In stock - ships same or next business day
- Packaging: Double-wall cardboard box 24x24x14 inches
- Weight: 36 lbs product 42 lbs shipping
