SKU: 16-85-2260

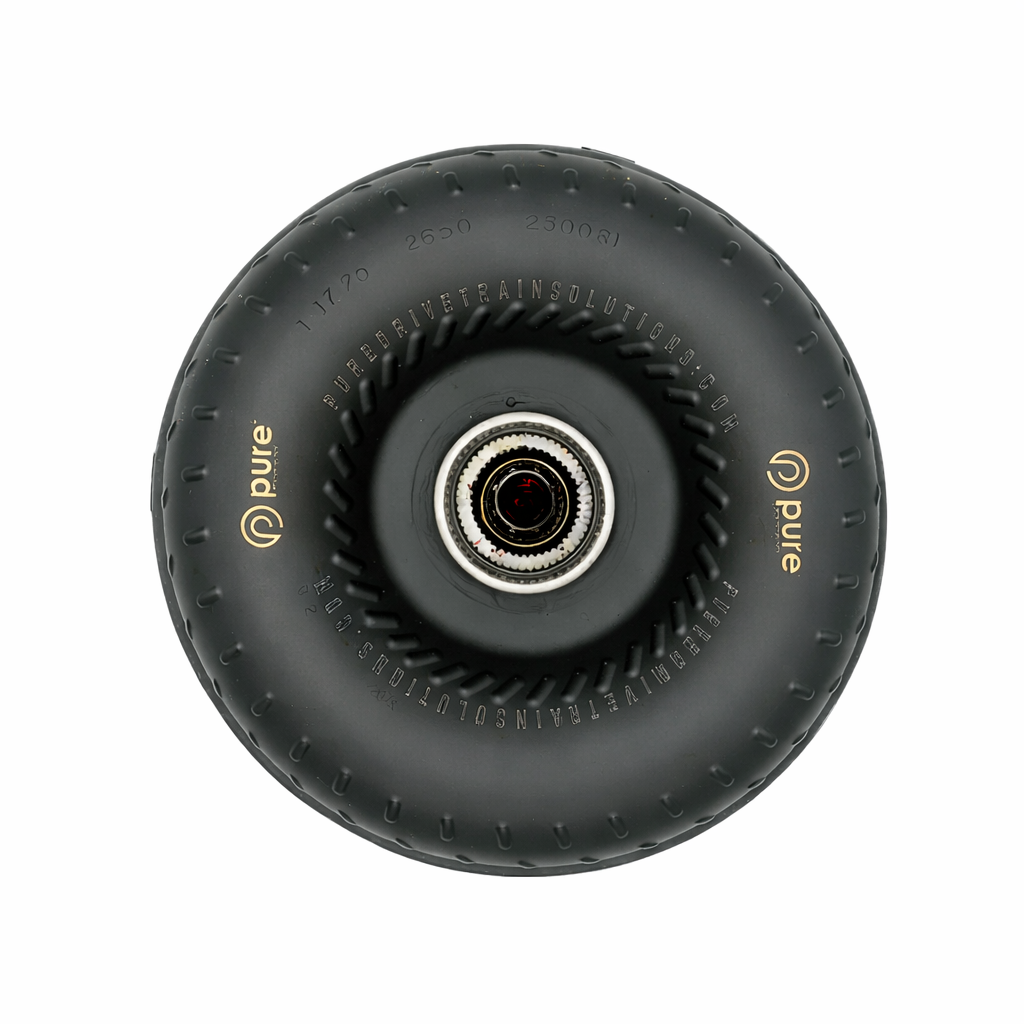

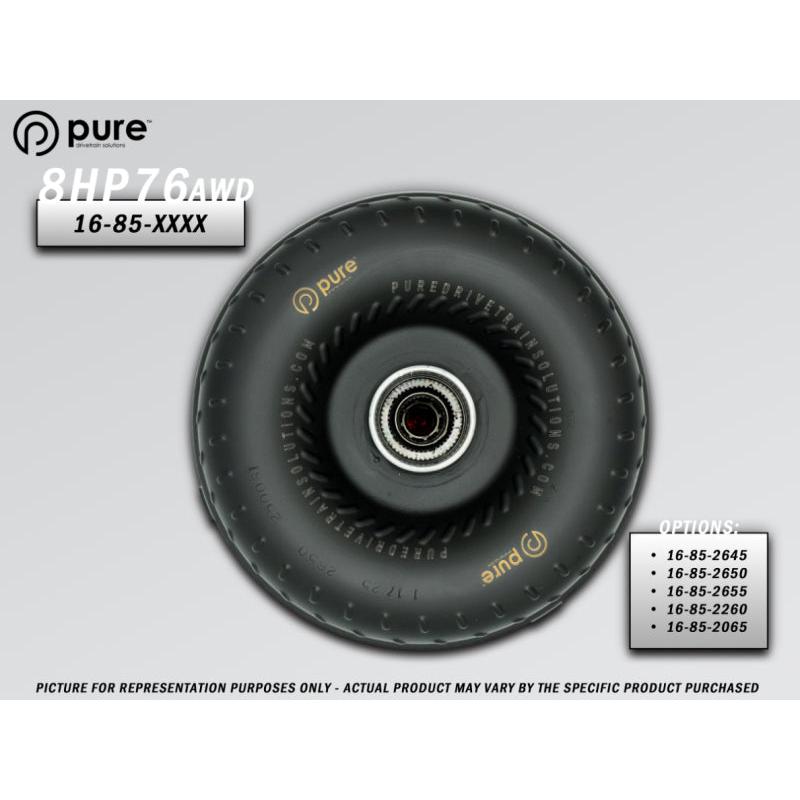

PDS 8HP76 High Performance Billet Race Torque Converter - 22/60 Stator - AWD 2015-2024 BMW M5 X5M X6M
This PDS billet torque converter upgrades ZF 8HP76 AWD transmissions in high-performance BMW M models. It fits 2015-2024 BMW X5M F85 X6M F86 M5 F90 M8 F91/F92/F93 xDrive vehicles with S63 engines. The 22/60 stator design provides precise stall control for quicker acceleration and better power transfer in racing conditions.
Key Features
- Billet 6061-T6 Aluminum Construction: Resists flex and failure under 1000+ ft-lbs torque for drag strip and track reliability.
- 22/60 Stator Assembly: Delivers 2200-6000 RPM stall range tuned for turbocharged S63 engines maximizing launch RPM.
- Multi-Disc Lockup Clutch: Enables firmer lockup at high RPM reducing slip and improving efficiency during shifts.
- Fully Balanced and Welded: Ensures vibration-free operation and longevity in high-stress AWD applications.
- Race-Specific Engineering: Built for modified vehicles with increased boost and power handling beyond stock limits.
Product Notes
- Special order item with typical lead time of 2-4 weeks from manufacturer.
- No core charge required for purchase.
- Inspect transmission fluid pump and valve body during install for best results.
Installation Notes
- Professional installation recommended.
- Transmission must be removed from vehicle for replacement.
- Uses OEM mounting studs and hardware from ZF 8HP76 flexplate.
This Part Fits
| Year | Make | Model | Submodel |
|---|---|---|---|
| 2015-2018 | BMW | X5 M | F85 xDrive |
| 2015-2019 | BMW | X6 M | F86 xDrive |
| 2018-2024 | BMW | M5 | F90 Sedan xDrive |
| 2020-2024 | BMW | M8 | F92 Coupe xDrive |
| 2020-2024 | BMW | M8 | F91 Gran Coupe xDrive |
| 2022-2024 | BMW | M8 | F93 Convertible xDrive |
Why Choose PDS?
- Specializes in ZF 8HP transmission components for BMW M racing.
- Uses aerospace-grade materials tested in professional drag and circuit events.
- Hand-built in USA with strict quality controls for consistent performance.
Frequently Asked Questions
-
Q: Will this fit my BMW M5 xDrive with 8HP76 transmission?
A: Yes it directly replaces the stock torque converter in 2018+ F90 M5 xDrive and Competition models using ZF 8HP76. -
Q: What materials are used in construction?
A: Billet 6061-T6 aluminum front cover piston and stator hub with TIG-welded steel impeller and turbine. -
Q: Does installation require transmission modifications?
A: No modifications needed it bolts directly to stock flexplate and input shaft.
Shipping & Handling
- Method: UPS Ground or Freight
- Availability: Special order - ships within 2-4 business days of order confirmation
- Packaging: Securely boxed 25x25x15 inches
- Weight: 68 lbs
