SKU: 16-80-2260

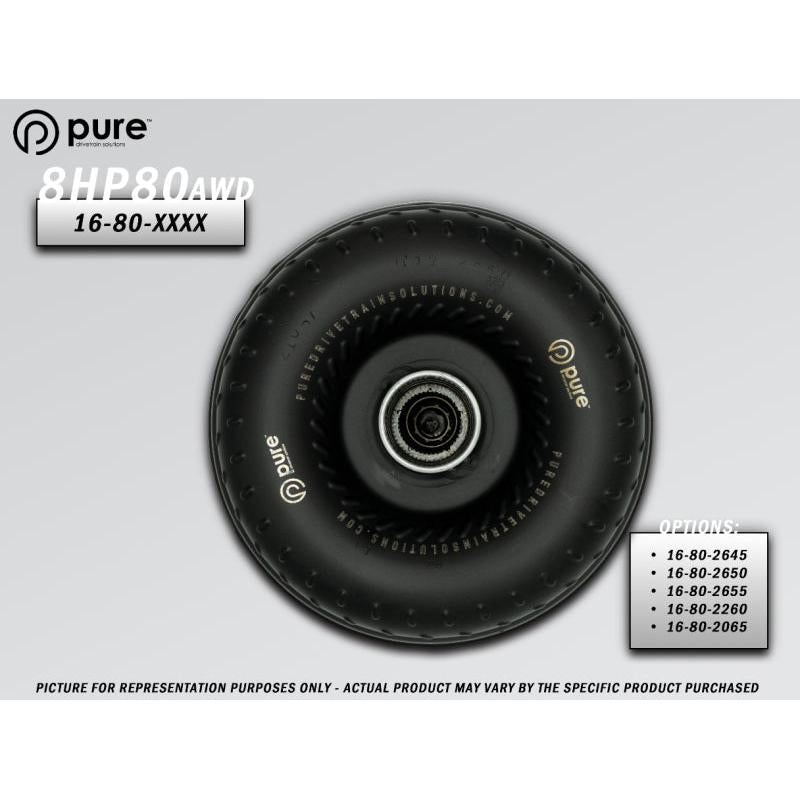

PDS 8HP80 High Performance Billet Race Torque Converter - 22/60 Stator - AWD 2010-2020 BMW M Models
This PDS torque converter upgrades ZF 8HP80 transmissions in AWD BMW performance vehicles like X5 M and X6 M. The billet design handles extreme power levels with a 22/60 stator providing precise stall speeds from 2200 RPM to 6000 RPM for quicker launches and better power transfer. Built for racing it withstands high heat and stress during drag or circuit use.
Key Features
- Billet Front Cover and Piston: CNC-machined 6061-T6 aluminum construction resists flex and ballooning under 1500+ HP applications
- 22/60 Stator Design: Variable pitch stator delivers tunable stall speeds ideal for drag racing and road course demands
- Billet Impeller and Turbine: Fully furnace brazed and TIG welded for maximum strength and heat dissipation
- Multi-Disc Lockup Clutch: 9-friction disc setup with aggressive apply for immediate lockup and no slip at high RPM
- Precision Balancing: SFI 29.2 certified balance to 15,000 RPM ensures vibration-free operation
Product Notes
- Requires matching flexplate and pump access for installation
- Use high-quality ATF like Red Line D6 for peak performance
- Ships via freight carrier due to size and weight
Installation Notes
- Professional installation recommended.
- Torque converter to flexplate bolts to 50 ft-lbs in star pattern
- Compatible with OEM ZF 8HP80 pump stator support and AWD transfer case
This Part Fits
| Year | Make | Model | Submodel |
|---|---|---|---|
| 2015-2019 | BMW | X5 | M (F85 xDrive50i) |
| 2015-2019 | BMW | X6 | M (F86 xDrive50i) |
| 2012-2016 | BMW | M5 | Sedan (F10 xDrive) |
| 2012-2015 | BMW | M6 | Coupe (F12 xDrive) |
| 2012-2015 | BMW | M6 | Convertible (F13 xDrive) |
| 2013-2015 | BMW | M6 Gran Coupe | (F06 xDrive) |
| 2011-2018 | Bentley | Continental GT | AWD V8 Models |
| 2013-2018 | Audi | RS6/RS7 | (C7 AWD) |
Why Choose PDS?
- Proven in NHRA and SCCA racing with multiple championship teams
- Hand-built in USA with aerospace-grade materials
- Engineered for 8HP transmissions in high-horsepower AWD platforms
Frequently Asked Questions
-
Q: Will this fit my 2016 BMW X5 M with S63 engine?
A: Yes it directly replaces the OEM torque converter in ZF 8HP80 AWD transmissions for 2015-2019 X5 M models -
Q: What materials are used in construction?
A: Billet 6061-T6 aluminum cover and pistons with TIG-welded steel impeller blades and furnace-brazed fins -
Q: What is the warranty and install requirements?
A: 1-year unlimited mileage warranty with professional installation and proper fluid use required for coverage
Shipping & Handling
- Method: Freight carrier (truckline)
- Availability: In stock - ships same or next business day
- Packaging: Heavy-duty double-walled box 24 x 24 x 12 inches
- Weight: 68 lbs
