SKU: 16-81-2650

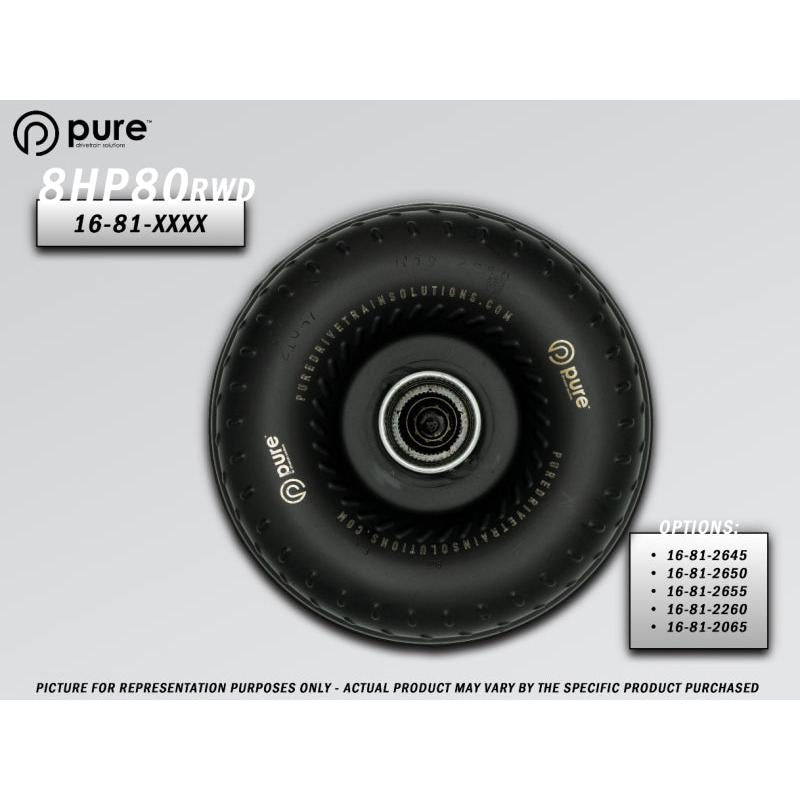

PDS 8HP80 High Performance Billet Race Torque Converter - 26/50 Stator - RWD 2015-2023 Dodge SRT Hellcat Challenger Charger
The PDS 8HP80 High Performance Billet Race Torque Converter with 26/50 Stator transforms RWD ZF 8HP80/90 transmissions in Dodge SRT Hellcat Challenger and Charger models from 2015-2023. It provides high stall speeds from 2600-5000 RPM for instant throttle response and massive torque multiplication during launches. Ideal for drag racing and high horsepower builds this converter handles over 1000 HP with precision engineering.
Key Features
- Billet Aluminum Front Cover: Delivers unmatched strength resists flexing and dissipates heat effectively in 1000+ HP setups
- 26/50 High Stall Stator: Produces 2600-5000 RPM stall for quicker ETs better low-end punch and optimized engine-transmission matching
- Multi-Disc Billet Lockup Clutch: Enables direct drive power transfer at high RPMs with smooth engagement and zero slip under load
- Furnace Brazed Impeller and Turbine: Welded fins withstand extreme fluid pressures and heat for long-term race durability
- Dynamically Balanced Assembly: Minimizes vibrations extends component life and ensures smooth operation at all speeds
Product Notes
- Designed for racing use pair with upgraded valve body and clutch packs for best results
- Use ATF approved for ZF 8HP transmissions change fluid after 500 miles of break-in
- Special order production verify transmission model before ordering
Installation Notes
- Professional installation recommended.
- Confirm 27-spline pump drive and 34-spline turbine spline compatibility
- Torque converter bolts to 60 ft-lbs use thread locker includes 8HP80 bolt pattern
This Part Fits
| Year | Make | Model | Submodel |
|---|---|---|---|
| 2015-2023 | Dodge | Challenger | SRT Hellcat |
| 2015-2023 | Dodge | Challenger | SRT Hellcat Redeye |
| 2015-2023 | Dodge | Charger | SRT Hellcat |
| 2015-2023 | Dodge | Charger | SRT Hellcat Redeye |
| 2018-2021 | Jeep | Grand Cherokee | Trackhawk |
| 2018-2023 | BMW | M5 | F90 Base |
Why Choose PDS?
- Proven in NHRA and street/strip racing with multiple world records
- Hand-built in USA with aerospace-grade materials and tolerances
- Custom stall tuning available for specific engine combos
Frequently Asked Questions
-
Q: Will this fit my 2019 Dodge Challenger SRT Hellcat Redeye?
A: Yes direct bolt-in replacement for ZF 8HP80/90 transmissions in 2015-2023 Hellcat models no modifications needed -
Q: What materials are used in construction?
A: Billet 6061-T6 aluminum cover furnace brazed steel elements and TIG-welded components for maximum strength -
Q: What warranty coverage is provided?
A: 12-month warranty against manufacturing defects when installed by certified shop with proper break-in
Shipping & Handling
- Method: Ground or Freight
- Availability: In stock - ships same or next business day
- Packaging: Double-wall cardboard box 28 x 28 x 14 inches
- Weight: 65 lbs
Pure Drivetrain Solutions (PDS)
Pure Drivetrain Solutions (PDS) – Performance Drivetrain Upgrades for Modern AutomaticsPure Drivetrain Solutions (PDS) engineers complete drivetrain upgrade systems for modern high-performance vehicles. Trusted by professional builders, performance shops, and serious enthusiasts, PDS components are purpose-built to handle elevated torque and horsepower demands — from daily-driven street builds to all-out forced-induction race cars.ZF 8HP & Ford 10R Performance TransmissionsPDS offers staged transmission solutions and critical upgrade components for the most popular modern automatic platforms, including the ZF 8HP and Ford 10R-series. Engineered to improve torque capacity, thermal management, and shift consistency without sacrificing street drivability. Increased clutch holding capacity for high-torque applications Improved fluid control and thermal management Enhanced durability under forced induction and high-RPM loads Consistent, repeatable shift performance on street and trac...
