SKU: 16-81-2655

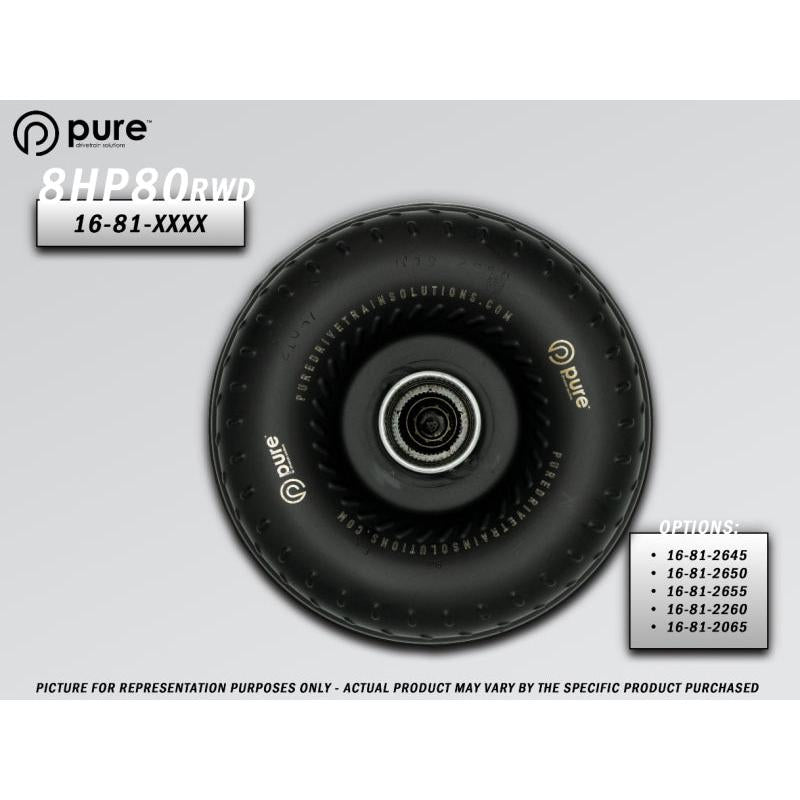

PDS 8HP80 High Performance Billet Race Torque Converter - 26/55 Stator - RWD 2012-2018 BMW M5 M6 X5M X6M
Upgrade your ZF 8HP80 transmission with this PDS high performance billet race torque converter designed for RWD BMW M vehicles. The 26/55 stator delivers high stall speeds for quicker launches in drag racing while maintaining street drivability. Built to handle over 1500 horsepower with reinforced components for repeated hard passes.
Key Features
- Billet Front Cover: 6061-T6 aluminum construction resists flex and pressure up to 300 psi for high boost applications
- 26/55 Multi-Angle Stator: Variable pitch design multiplies torque at launch and improves lockup efficiency across RPM range
- Furnace Brazed Impeller and Turbine: Welded fins prevent separation under extreme centrifugal force during high RPM shifts
- TIG Welded Input Shaft and Hub: Adds shear strength to transfer massive engine torque without spline failure
- Heavy Duty Needle Bearings: Oversized Torrington-style bearings reduce friction and support 500+ passes before rebuild
Product Notes
- No core charge required for purchase
- Intended for competition use only with race fuel recommended
- Securely packaged for safe transit measuring 24 x 24 x 12 inches
Installation Notes
- Professional installation recommended.
- Transmission must be removed to replace stock torque converter
- Compatible with OEM bellhousing and flexplate hardware
This Part Fits
| Year | Make | Model | Submodel |
|---|---|---|---|
| 2012-2016 | BMW | M5 | Base |
| 2012-2014 | BMW | M6 | Base Coupe |
| 2012-2014 | BMW | M6 | Base Convertible |
| 2012-2014 | BMW | M6 Gran Coupe | Base |
| 2015-2018 | BMW | X5 M | Base |
| 2015-2018 | BMW | X6 M | Base |
Why Choose PDS?
- Specializes in ZF 8-speed converters for 15+ years
- Hand-built with aerospace-grade materials for 1500+ HP reliability
- Engineered and dyno-tested for BMW M chassis drag applications
Frequently Asked Questions
-
Q: Does this fit 2012-2016 BMW M5 with S63 engine?
A: Yes it bolts directly to the ZF 8HP80 transmission in 2012-2016 M5 models using factory flexplate and starter -
Q: What materials are used in construction?
A: Billet 6061-T6 aluminum cover furnace brazed 4340 steel impeller and turbine with chromoly hubs -
Q: What is the warranty coverage?
A: 12-month warranty against manufacturing defects excludes track abuse or improper fluid use
Shipping & Handling
- Method: UPS Ground Freight
- Availability: Special order ships in 3-5 business days
- Packaging: Double-wall cardboard box 24 x 24 x 12 inches
- Weight: 72 lbs
