SKU: 16-84-2645

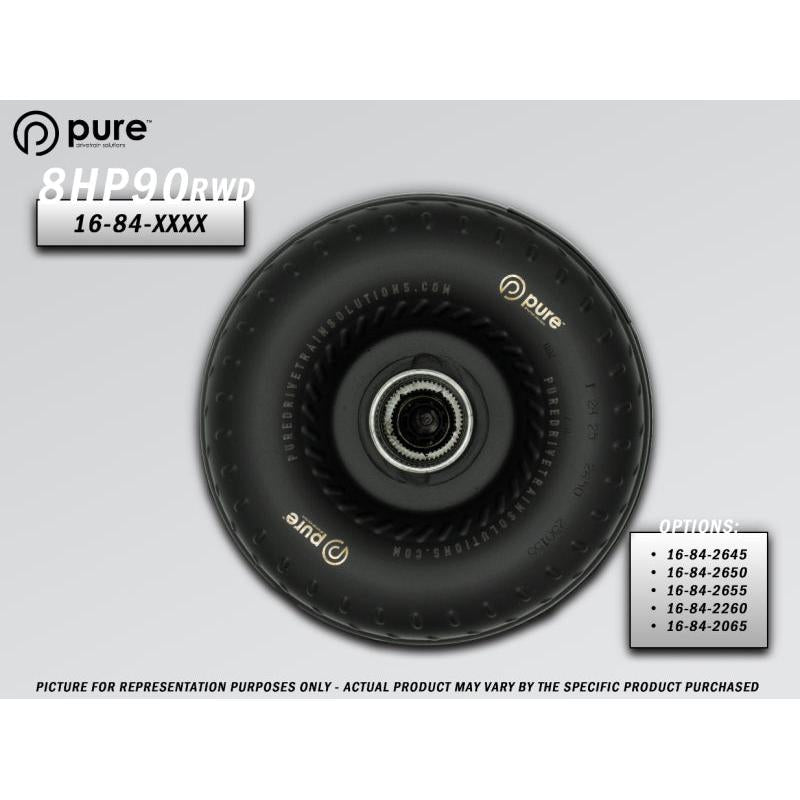

PDS 8HP90 High Performance Billet Race Torque Converter - 26/45 Stator - RWD Fits 2015-2023 Dodge Challenger SRT Hellcat, Charger SRT Hellcat & Trackhawk
The PDS 8HP90 High Performance Billet Race Torque Converter with 26/45 stator upgrades RWD ZF 8HP90 transmissions in Dodge Hellcat models and Jeep Trackhawk. Built for drag racing and high-horsepower builds, it handles over 2000 HP with stronger materials than stock. Drivers gain quicker launches, firmer lockup, and reliable shifts under extreme conditions.
Key Features
- Billet Aluminum Front Cover & Piston: Resists flex and ballooning at high RPM for consistent performance in 1500+ HP applications
- 26/45 Stator Design: Custom blade pitch increases stall speed to 4500 RPM for instant torque multiplication off the line
- Billet Steel Impeller & Turbine: Forged for maximum strength and heat dissipation during prolonged runs
- TIG-Welded & Furnace-Brazed Fins: Eliminates leaks and ensures fluid coupling efficiency for smoother power delivery
- MPR Multi-Phase Rubber Dampener: Absorbs vibrations for precise throttle response and driveline protection
Product Notes
- No core charge required for purchase
- Special order item with typical lead time of 5-10 business days from manufacturer
- Designed exclusively for racing use, not for street-driven vehicles
Installation Notes
- Professional installation recommended.
- Transmission must be removed for direct bolt-in replacement
- Compatible with OEM or aftermarket 8HP90 flexplate and pump. verify spline count
This Part Fits
| Year | Make | Model | Submodel |
|---|---|---|---|
| 2015-2023 | Dodge | Challenger | SRT Hellcat, SRT Hellcat Redeye, SRT Super Stock |
| 2015-2023 | Dodge | Charger | SRT Hellcat, SRT Hellcat Redeye |
| 2018-2021 | Jeep | Grand Cherokee | Trackhawk |
| 2011-2016 | BMW | M5 | Base (RWD) |
| 2012-2018 | BMW | M6 | Convertible, Coupe (RWD) |
Why Choose PDS?
- Proven in NHRA and NMCA drag racing with multiple world record holders
- Hand-built by specialists using aircraft-grade materials
- Dyno-tested and balanced to 2000+ RPM for zero-runout precision
Frequently Asked Questions
-
Q: Will this fit my 2020 Dodge Challenger SRT Hellcat Redeye?
A: Yes, it bolts directly into all 2015-2023 RWD Hellcat models with factory ZF 8HP90 transmissions -
Q: What materials are used in construction?
A: 6061-T6 billet aluminum cover and piston, 4340 billet steel impeller and turbine, with TIG-welded hubs -
Q: What is the warranty coverage?
A: One-year limited warranty against manufacturing defects when installed by certified shop
Shipping & Handling
- Method: UPS Ground or FedEx Ground
- Availability: Special order - ships in 5-10 business days
- Packaging: Heavy-duty double-wall cardboard box measuring 24 x 20 x 12 inches
- Weight: 68 lbs
