SKU: 16-84-2650

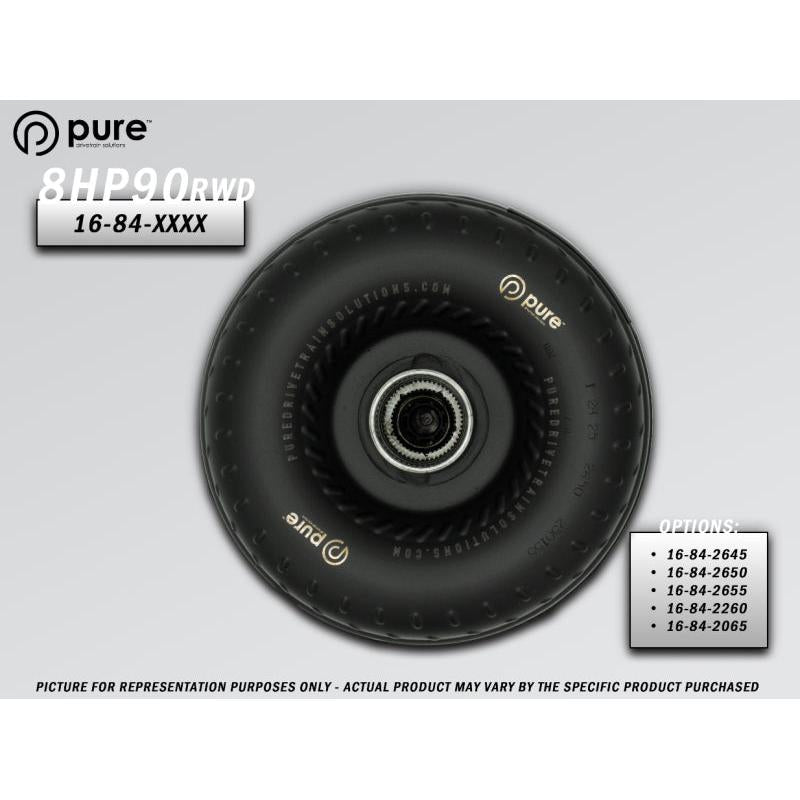

PDS 8HP90 High Performance Billet Race Torque Converter - 26/50 Stator - RWD for 2015-2023 Dodge Challenger SRT Hellcat, Charger SRT Hellcat, Demon, Redeye
This PDS billet race torque converter upgrades ZF 8HP90 transmissions in 2015+ RWD Dodge Hellcat models including Challenger, Charger, Demon and Redeye. The 26/50 stator provides 2600-5000 RPM stall speed for instant launches and handles over 1500HP in drag racing and high performance builds. Built with billet components it eliminates flex and slip under extreme torque.
Key Features
- Billet Front Cover: Machined from 6061-T6 aluminum reinforced with steel for maximum strength against ballooning at high boost levels
- Billet Piston: Precision CNC machined to lock fluid tightly and prevent bypass during aggressive shifts
- 26/50 Stator: Custom furnace brazed design delivers 2600-5000 RPM stall for quicker spool and reduced engine load off the line
- Heavy Duty Clutch Liners: Triple friction material withstands 1500+HP without wear or glazing in repeated runs
- RWD Specific Splines: 26 input and 50 turbine splines match OEM 8HP90 for direct bolt-in replacement
Product Notes
- Special order item requires confirmation before shipping
- Inspect transmission pump and flexplate before install to avoid damage
- Ships via ground freight due to size and weight
Installation Notes
- Professional installation recommended.
- Torque flexplate bolts to 65 ft-lbs in star pattern after cleaning surfaces
- Requires compatible billet input shaft upgrade for 1000+HP applications
This Part Fits
| Year | Make | Model | Submodel |
|---|---|---|---|
| 2015-2023 | Dodge | Challenger | SRT Hellcat, Super Stock, Redeye |
| 2015-2023 | Dodge | Charger | SRT Hellcat, Redeye |
| 2018-2021 | Jeep | Grand Cherokee | Trackhawk |
| 2018-2023 | BMW | M5 | F90 |
| 2020-2023 | BMW | M8 | Gran Coupe Competition |
Why Choose PDS?
- Proven in NHRA and NMRA drag racing with multiple world records
- Hand-built in USA with aerospace quality machining
- Engineered for direct replacement in stock 8HP90 cases
Frequently Asked Questions
-
Q: Does this fit 2015+ Dodge Hellcat with stock 8HP90 transmission?
A: Yes direct bolt-in for all RWD 2015-2023 Challenger, Charger Hellcat, Demon, Redeye and Trackhawk models with ZF 8HP90 -
Q: What material is the billet cover made from?
A: 6061-T6 billet aluminum front cover with internal steel ring for high pressure resistance up to 1500HP -
Q: What is the warranty and install requirements?
A: 1-year unlimited mileage warranty covers defects. Requires transmission fluid flush and valve body check during install
Shipping & Handling
- Method: Ground freight LTL
- Availability: In stock - ships same or next business day
- Packaging: Heavy duty double wall box 28 x 28 x 14 inches
- Weight: 65 lbs product / 75 lbs shipping
