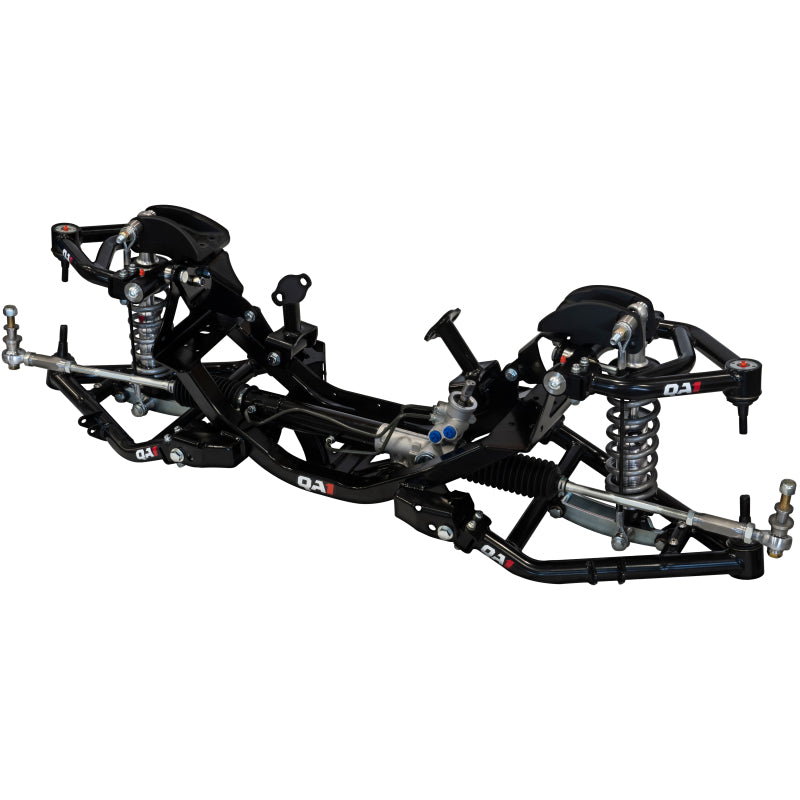

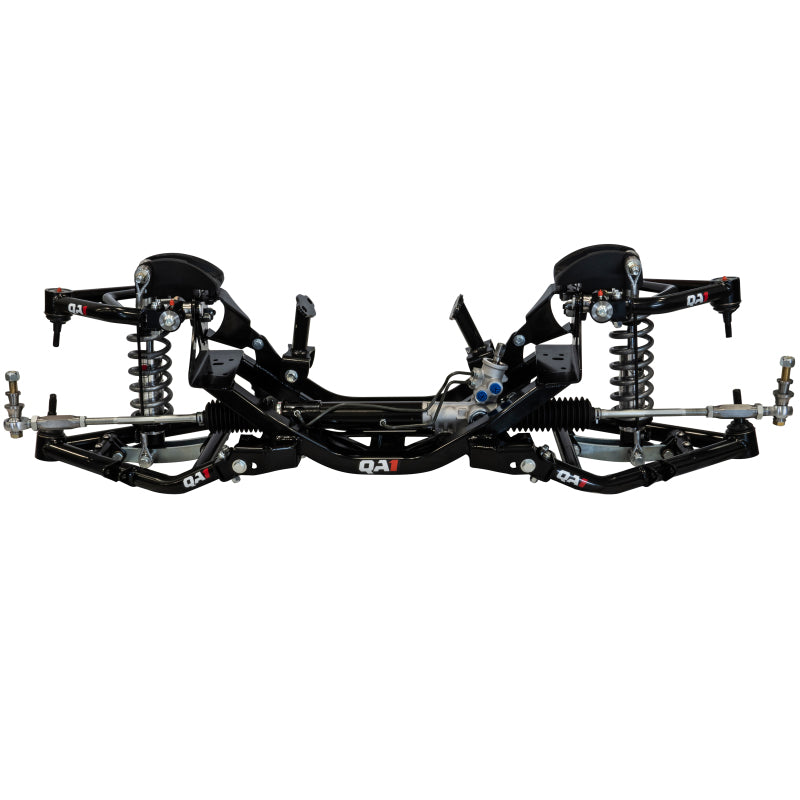

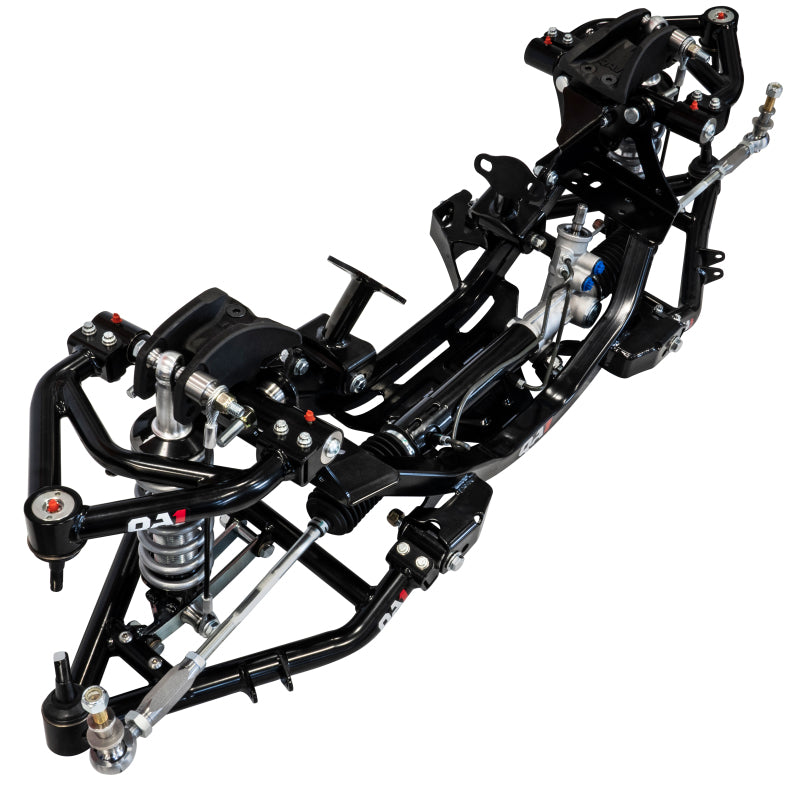

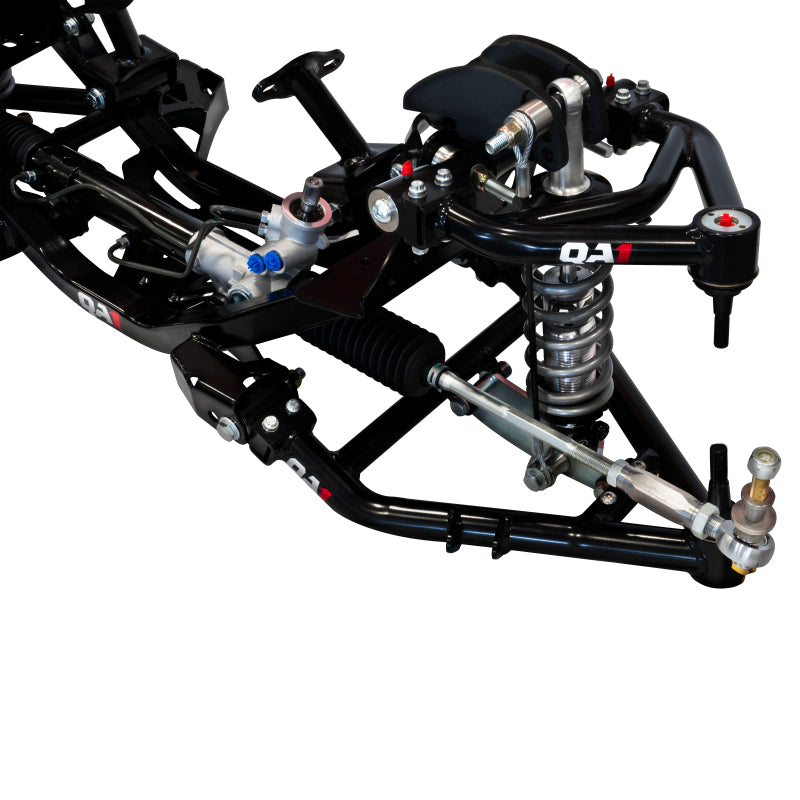

Build an integrated coilover front suspension for a classic C10
QA1 52622-S650 combines the crossmember, steering, control arms, coilovers, and installation hardware needed for a coordinated front suspension conversion. The system is designed for verified Chevrolet and GMC two wheel drive truck applications and uses 650 lb springs with single adjustable shocks.
Key Features
- QA1 52622-S650 provides an integrated front crossmember and coilover suspension package
- Single adjustable shocks let the driver tune damping for the vehicle and road conditions
- High travel 650 lb springs support a lowered front suspension setup
- Tubular steel control arms and a black powder coated finish provide a durable installation
- Power rack and pinion steering is incorporated into the crossmember system
- The design supports up to 8 inches of front suspension drop when the vehicle setup permits
Fitment
| Years | Make | Model | Drivetrain |
|---|---|---|---|
| 1963-1972 | Chevrolet | C10 Pickup | 2WD |
| 1963-1965 | GMC | 1000 Series | 2WD |
| 1966 | GMC | 1000 | 2WD |
| 1963-1965 | GMC | 1500 Series | 2WD |
| 1966 | GMC | 1500 | 2WD |
| 1967-1972 | GMC | C15 or C1500 Pickup | 2WD |
Specifications
| Detail | Value |
|---|---|
| Manufacturer part number | 52622-S650 |
| Installation position | Front |
| Shock adjustment | Single adjustable |
| Spring rate | 650 lb per inch |
| Maximum supported drop | Up to 8 inches |
| Steering | Power rack and pinion |
| Control arm construction | Powder coated tubular steel |
| Required spindles | 1973-1987 Chevrolet C10 spindles |
| Recommended minimum wheel diameter | 18 inches for optimized bump steer |
What's Included
- Front suspension crossmember
- Upper and lower tubular control arms
- Single adjustable coilover shocks
- High travel 650 lb springs
- Upper mounting brackets
- Power rack and pinion steering assembly
- Installation hardware
About QA1
QA1 develops performance suspension and steering systems for street and track vehicles. The 52622-S650 package brings matched front suspension components together for classic Chevrolet and GMC trucks.
FAQ
What is the 52622-S650?It is a front coilover crossmember system with tubular control arms, single adjustable shocks, springs, and power rack and pinion steering.
Is this system intended for two wheel drive trucks?Yes. The verified Chevrolet and GMC applications are two wheel drive models.
Does this system fit GMC trucks?Yes. Verified applications include the GMC 1000, 1500, C15, and C1500 model names listed in the fitment table.
Which spindles are required?The installation requires 1973-1987 Chevrolet C10 spindles.
What wheel diameter is recommended?A minimum 18 inch wheel is recommended to optimize bump steer geometry.
Is a steering shaft included?No. A compatible steering shaft must be selected separately for the vehicle.
Are engine mounts included?No. Engine mounts are sold separately and must match the selected engine configuration.
Will installation require vehicle modifications?Inner fender trimming is required. Header, oil pan, and hose clearance may also need to be addressed for the specific vehicle setup.
Installation Instructions
- Read the current QA1 instructions for 52622-S650 completely before disassembly and confirm that all required tools and supporting parts are available.
- Support the vehicle securely and remove the original front suspension and steering components according to the service procedure.
- Confirm that the required 1973-1987 Chevrolet C10 spindles and compatible wheel package are available.
- Test fit the crossmember and complete the required inner fender trimming while checking engine, header, oil pan, and hose clearance.
- Install the crossmember, control arms, coilovers, springs, steering rack, and supplied hardware in the specified sequence.
- Install a compatible steering shaft and separately selected engine mounts for the vehicle configuration.
- Torque all fasteners to the current QA1 specifications, verify clearance through the full steering and suspension travel, and perform a professional alignment before driving.
