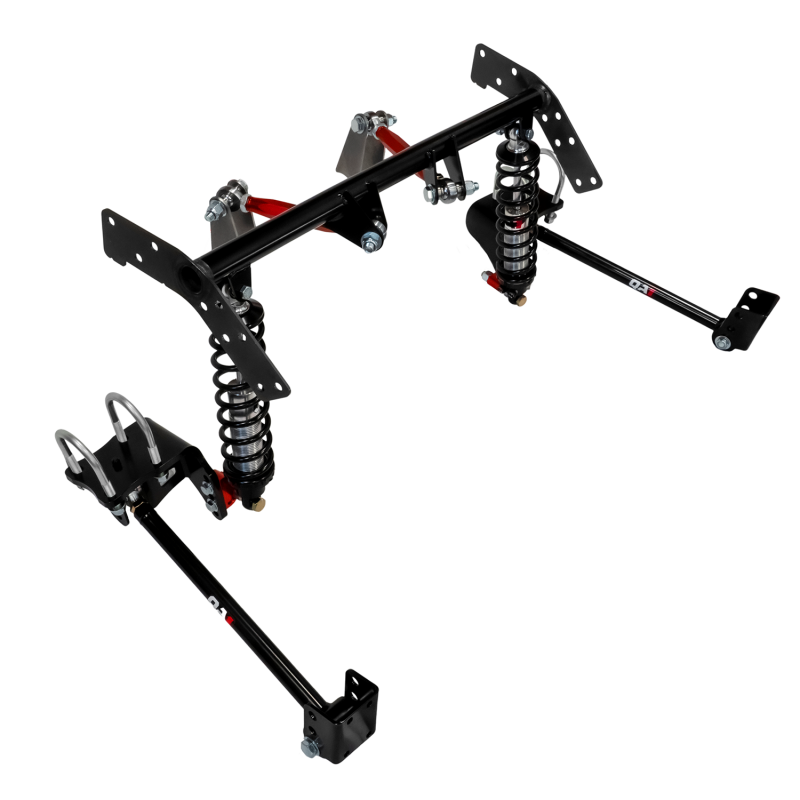

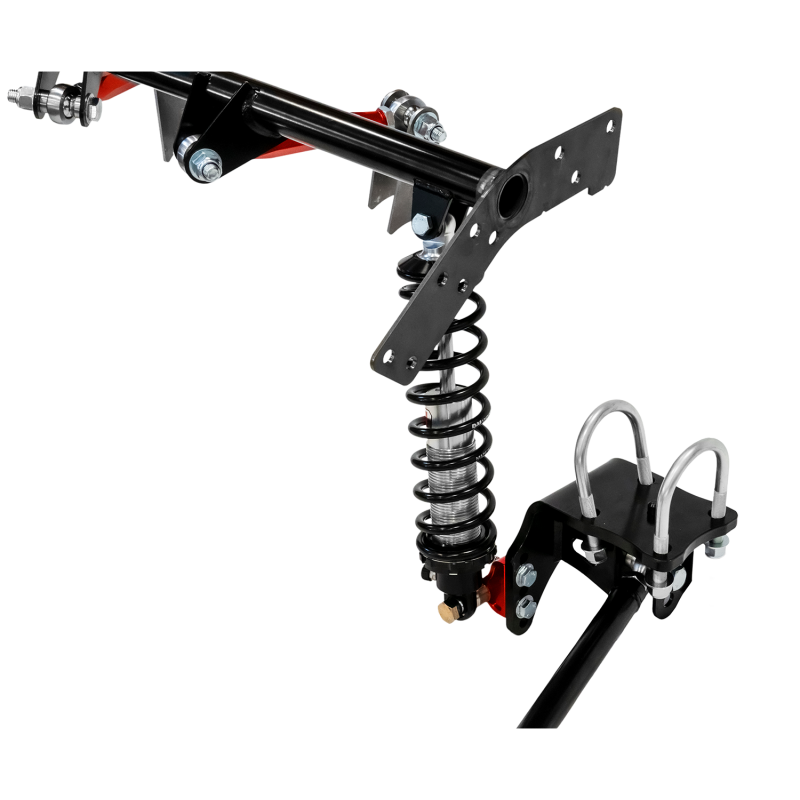

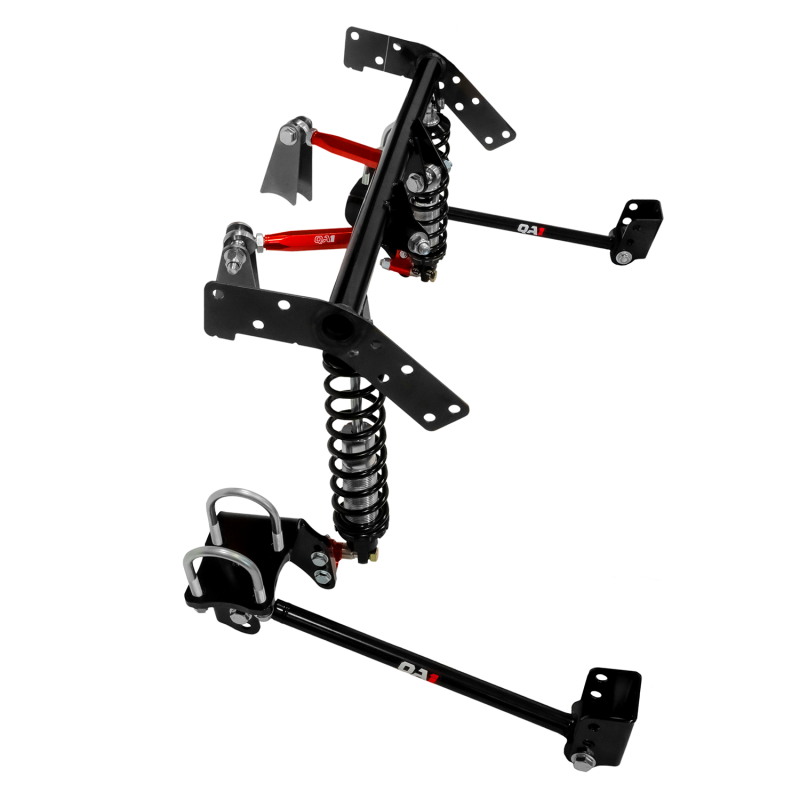

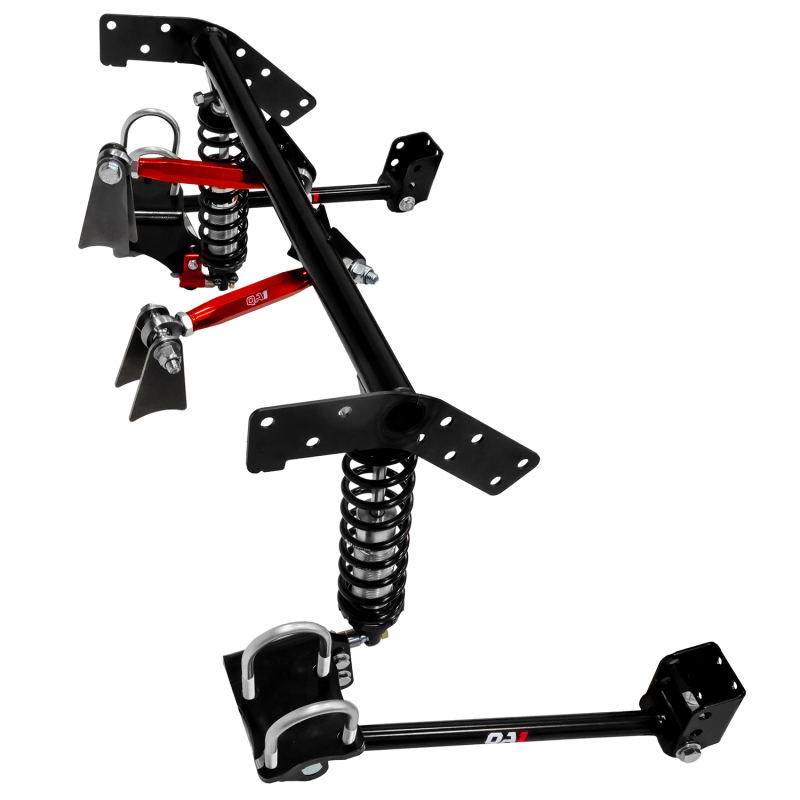

Convert a classic Mopar E-body from leaf springs to an adjustable triangulated four link.
QA1 part R155-175 is built for 1970-1974 Dodge Challenger and Plymouth Barracuda applications with compatible axle housings.
Key Features
- Triangulated four link conversion for Mopar E-body vehicles
- Single adjustable coil over shocks
- 175 lb/in springs
- Adjustable anti-squat at the lower trailing arm brackets
- Compatible with factory or inboard relocated leaf spring mounts
- Powder coated tubular construction made in the USA
Fitment
| Years | Make | Model | Axle Housing | Position |
|---|---|---|---|---|
| 1970-1974 | Dodge | Challenger | Chrysler 8-3/4 in or Ford 9 in | Rear |
| 1970-1974 | Plymouth | Barracuda | Chrysler 8-3/4 in or Ford 9 in | Rear |
Specifications
| Detail | Value |
|---|---|
| Manufacturer Part Number | R155-175 |
| Position | Rear |
| Suspension Type | Triangulated four link |
| Adjustment | Single adjustable |
| Spring Rate | 175 lb/in |
| Axle Housings | Chrysler 8-3/4 in and Ford 9 in |
| Installation | Cutting and welding required |
| Sway Bar | Optional and not included |
What's Included
- R155-175: Tubular crossmember
- Upper trailing arms
- Lower trailing arms
- Lower brackets with adjustable anti-squat
- Single adjustable shocks
- 175 lb/in springs
- Installation hardware
About QA1
QA1 develops adjustable suspension systems for classic muscle cars and performance vehicles.
FAQ
What is the R155-175?
It is the exact manufacturer part number for this rear four link suspension system.
Is this a bolt in kit?
No. Cutting and welding are required.
Which axle housings fit?
It fits Chrysler 8-3/4 inch and Ford 9 inch axle housings.
Does it fit a Dana 60?
No. Dana 60 applications use a different QA1 part number.
What spring rate is included?
The supplied springs are rated at 175 lb/in.
Are the shocks adjustable?
Yes. The included shocks are single adjustable.
Is a sway bar included?
No. The compatible sway bar is optional.
Can factory leaf spring mounts remain?
The system works with factory or inboard relocated leaf spring mounts.
Installation Instructions
- Before installing R155-175, remove the leaf spring suspension and prepare the frame rails and axle housing according to QA1 instructions.
- Weld the upper crossmember to the frame rails and weld the four link tabs to the axle housing using a 220 volt welder with proper penetration.
- Install the arms, shocks, and springs, then verify clearances and complete a professional alignment and fastener inspection.
