SKU: 14-1633

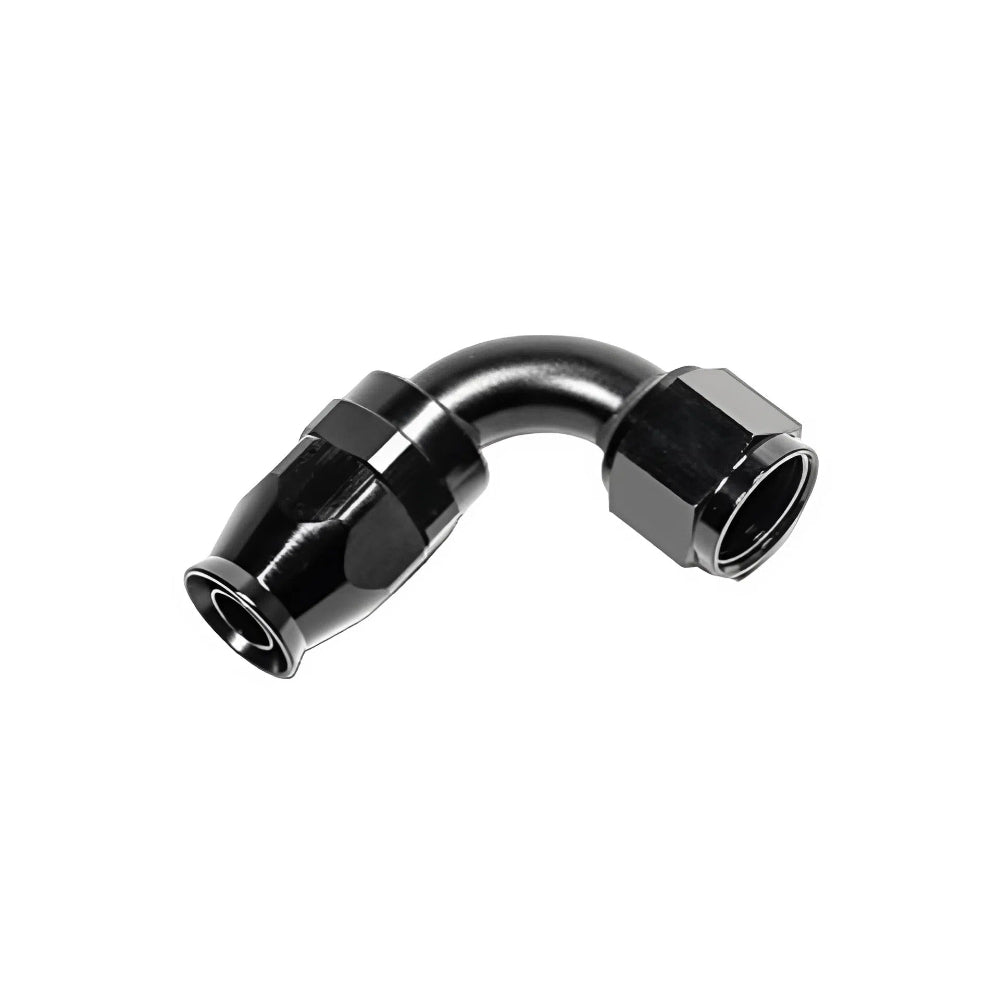

Radium Engineering 10AN Hose End 90 Degree PTFE Black
The Radium Engineering 10AN Hose End 90 Degree PTFE in black is engineered for precise routing in high-performance fuel, oil, and fluid systems. This fitting delivers consistent flow and pressure handling that outperforms standard rubber or nylon alternatives by minimizing permeation and resisting degradation under extreme conditions. Installers and enthusiasts choose this component for its direct compatibility with PTFE-lined hoses, ensuring leak-free connections that hold up in demanding automotive setups.
Key Features and Performance Benefits
- Material Construction: Crafted from type-II black anodized aluminum for corrosion resistance and lightweight durability, paired with a swiveling design exclusive to PTFE hoses.
- Pressure Rating: In-house tested to 1,200 PSI, with PTFE core capable of exceeding 2,500 PSI burst pressure—ideal for boosted or high-flow applications where failures in lesser fittings lead to downtime.
- Temperature Tolerance: Operates from -94°F to +480°F, maintaining integrity during heat-soaked engine bays or cold-start scenarios that compromise other hose ends.
- Fluid Compatibility: Chemically inert inner core handles fuel, oil, transmission fluid, power steering fluid, and coolant without swelling or breakdown, reducing vapor emissions to near zero compared to permeable rubber options.
- Anti-Static Design: Carbon-lined PTFE prevents electrostatic discharge, a critical safety factor in fuel systems absent in many competing products.
This 90-degree elbow configuration allows for compact bends in tight engine compartments, providing smoother routing than straight or shallower-angle fittings while preserving full 10AN flow capacity (0.51-inch inner diameter).
What's Included in Your Purchase
Each order of the Radium Engineering 10AN Hose End 90 Degree PTFE Black (14-1633) includes:
- One (1) black anodized aluminum 90-degree hose end fitting, swiveling type for PTFE hose assembly.
- Compatible only with Radium's black braided PTFE hose (such as 20-1210 kit) or equivalent 10AN PTFE-lined hose not interchangeable with rubber or nylon types.
- No additional hardware, tools, or instructions are provided; professional assembly and pressure testing recommended for optimal results.
Vehicle Fitment and Compatibility
As a universal 10AN fitting, the 14-1633 installs on any vehicle equipped with 10AN PTFE hose systems for fuel delivery, oil cooling, or auxiliary lines. Common applications include:
- Nissan Skyline GT-R (R33/R34 models, 1995-2002) in upgraded fuel systems
- Mazda MX-5 Miata (1989-2005) for aftermarket fuel pump hangers and lines
- General high-performance imports and domestics with 10AN AN fittings, such as Subaru WRX/STI, Honda Civic Type R, Ford Mustang GT, or Chevrolet Camaro SS, verify hose compatibility for your specific year, make, and model.
Specifications and Packaging Details
|
Specification |
Detail |
|
Part Number |
14-1633 |
|
AN Size |
10AN (0.51" ID / 0.70" OD) |
|
Angle |
90 Degrees |
|
Material |
Black Anodized Aluminum |
|
Hose Type |
PTFE-Lined Only |
|
Weight |
0.17 lbs |
|
Shipping Box Dimensions |
3.00" W x 1.50" H x 5.50" D |
Shipping calculated at checkout! Backed by Radium Engineering's commitment to precision components since 2010, the 14-1633 stands as the reliable pick for builders seeking dependable performance in every connection.
