-17%
Radium Engineering universal CNC machined coolant header tank 1240ml
Click to zoom in

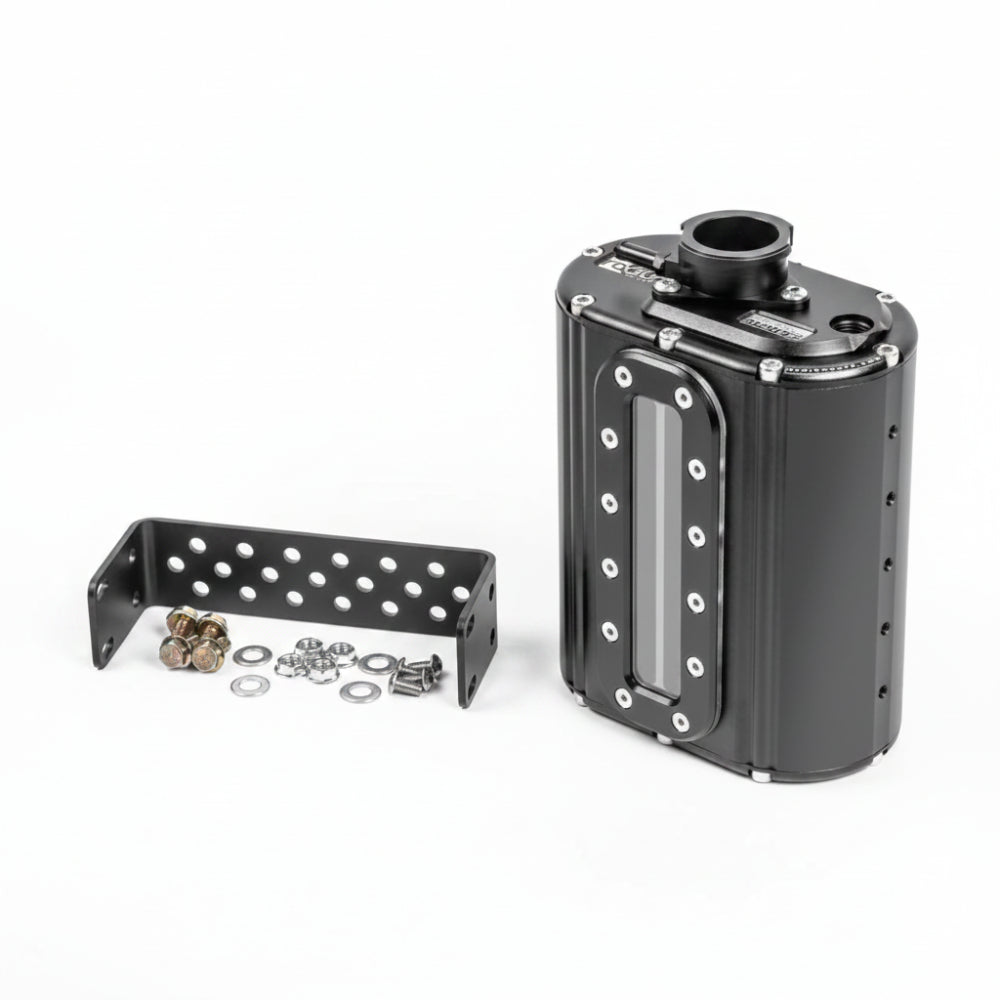

Radium Engineering Universal CNC Machined Coolant Header Tank, 1240ml

RAD20-2270
Coolant Reservoirs
3 Units In Stock - Ships Next Business Day
$ 309.95 $ 256.36
$ 256.36

Radium Engineering Universal CNC Machined Coolant Header Tank, 1240ml

This Radium Engineering coolant header tank is CNC machined in a 2-piece design with a fluid level viewing window, giving builders 1240ml of fluid capacity for custom cooling system layouts. A mounting bracket and hardware are included, and the tank accepts a pressure cap sold separately.

Key Features

  • CNC machined 2-piece construction
  • 1240ml fluid capacity
  • Fluid level viewing window
  • One 6AN ORB port and two 10AN ORB ports on the bottom
  • Mounting bracket and hardware included

Specifications

Detail Value
Manufacturer part number 20-2270
Fluid capacity 1240ml
Port configuration One 6AN ORB, two 10AN ORB
Construction CNC machined, 2-piece design
Pressure cap Sold separately

What's Included

  • 1 coolant header tank
  • Mounting bracket and hardware

About Radium Engineering

Radium Engineering designs and manufactures precision-machined fuel system, cooling, and forced-induction components for performance and motorsport applications.

FAQ

Does this tank include a pressure cap?

No, the pressure cap is sold separately.

What is the fluid capacity of this tank?

This tank holds 1240ml of fluid.

Can I see the fluid level without removing the cap?

Yes, the 2-piece design includes a fluid level viewing window.

Is mounting hardware included?

Yes, a mounting bracket and hardware are included.

What port sizes does this tank use?

This tank has one 6AN ORB port and two 10AN ORB ports on the bottom.

Is this tank vehicle specific?

No, this is a universal coolant header tank suitable for custom cooling system installations.

Is professional installation recommended?

Yes, cooling system installation should be performed by someone experienced with custom fabrication and fitting torque.

What material is this tank made from?

This tank is CNC machined for a precision fit and finish.

Installation Instructions

  1. Select a mounting location with adequate clearance and access to the fill point.
  2. Secure the tank using the included mounting bracket and hardware.
  3. Connect coolant lines to the 6AN and 10AN ORB ports as required by your cooling system layout.
  4. Fill the system, check for leaks, and bleed air from the cooling system before normal operation.
