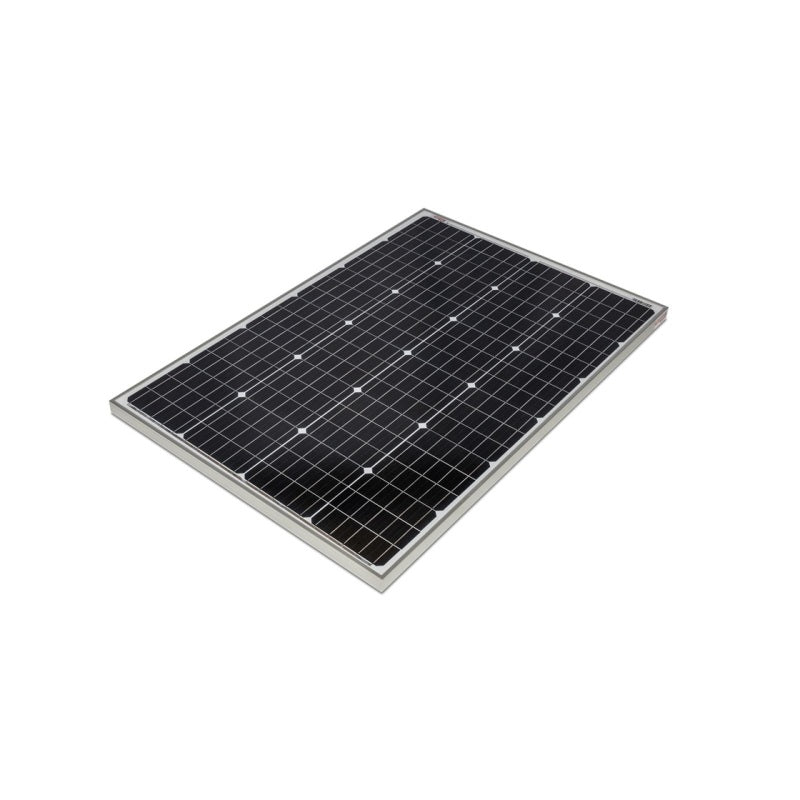

Add a fixed solar source to a suitable RV or vehicle installation with this 120W monocrystalline panel. Its tempered-glass face and anodized aluminum frame provide a rigid assembly for outdoor mounting.
Key Features
- A tempered glass coating and a sturdy aluminum frame ensure that our panels will withstand harsh road conditions and extreme weather conditions.
- Featuring an anodized aluminum frame and tempered glass coating they are well suited for outdoor use and employ MC4 connectors for easy installation.
Fitment
For compatible fixed solar installations. Verify mounting space and regulator input limits for the original SMSP1120 panel.
Specifications
| Part Number | SMSP1120 |
|---|---|
| Rated Power | 120W |
| Maximum Power Voltage / Current | 20V / 6A |
| Open Circuit Voltage | 22.3V |
| Short Circuit Current | 6.48A |
| Dimensions | 1005 x 670 x 35mm |
| Weight | 7.5kg |
| GTIN | 9338628006526 |
What's Included
One SMSP1120 solar panel with connection cable.
Brand Information
REDARC supplies vehicle solar-charging equipment.
Related Parts
Frequently Asked Questions
Is this a folding panel?
No. It is a rigid panel for fixed installation.
How much mounting space does it occupy?
The panel measures 1005 x 670mm and is 35mm thick. Allow additional space for the mounting arrangement.
Installation Instructions
Follow the REDARC fixed-panel manual for mounting and connection through a compatible solar regulator. Use a qualified installer.
