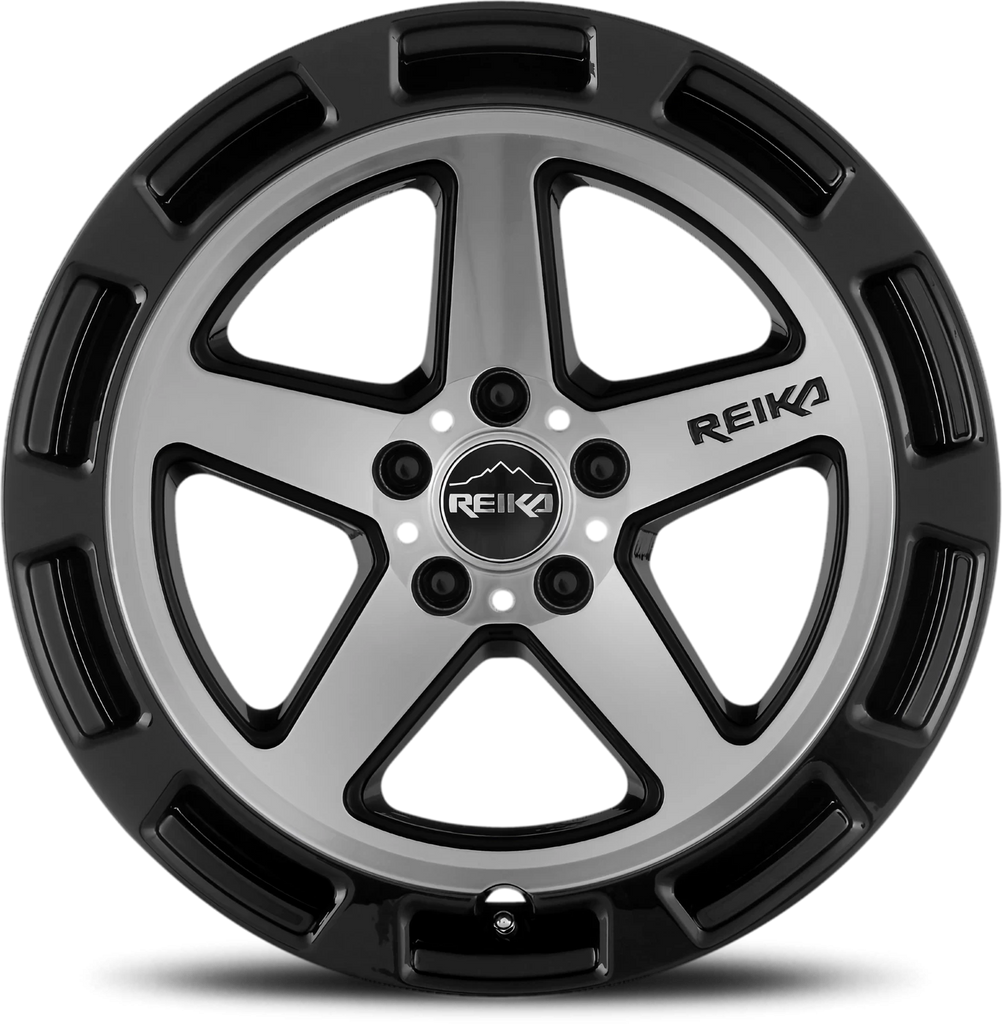

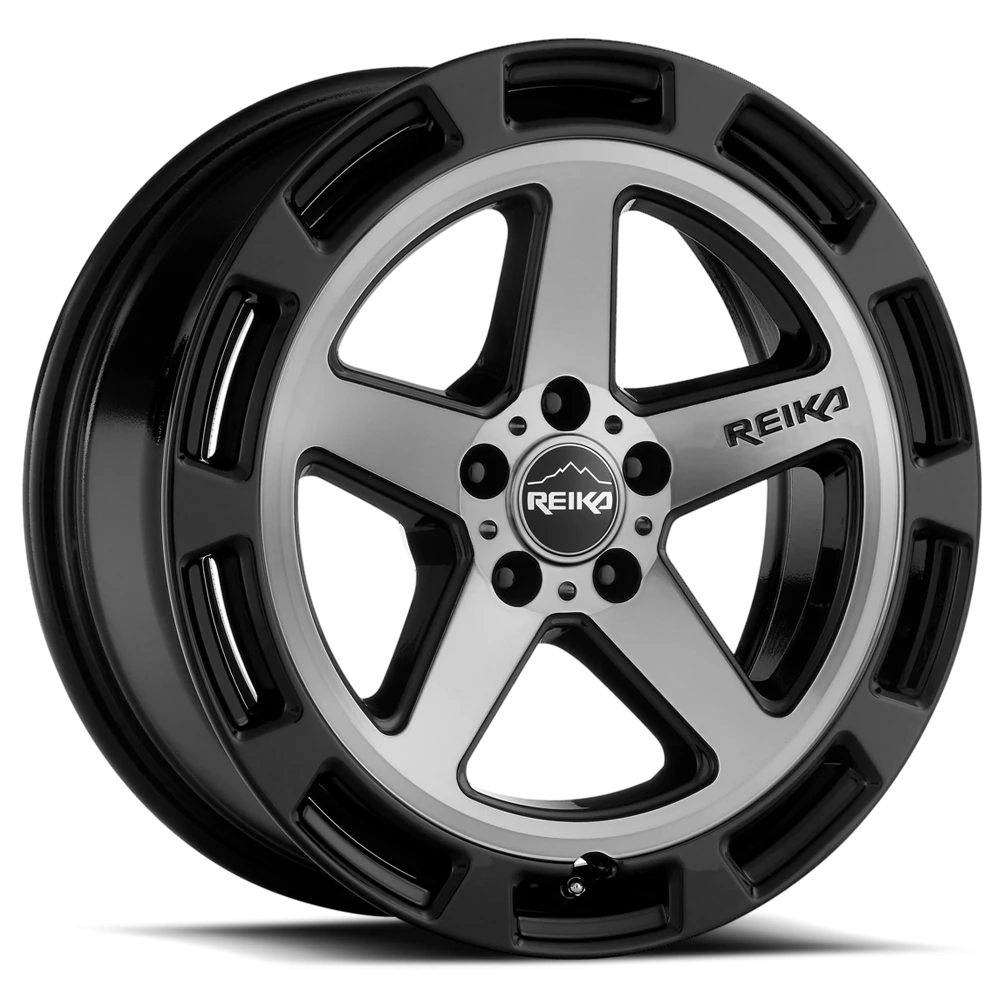

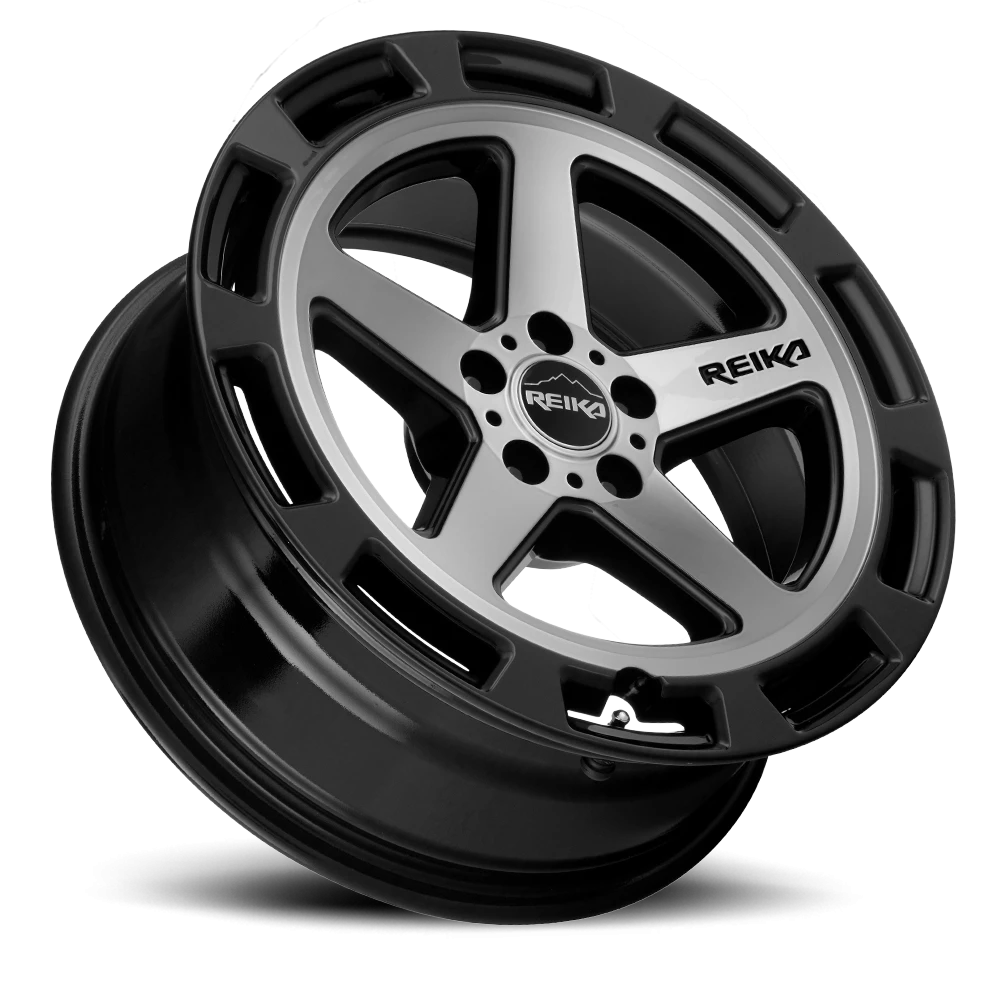

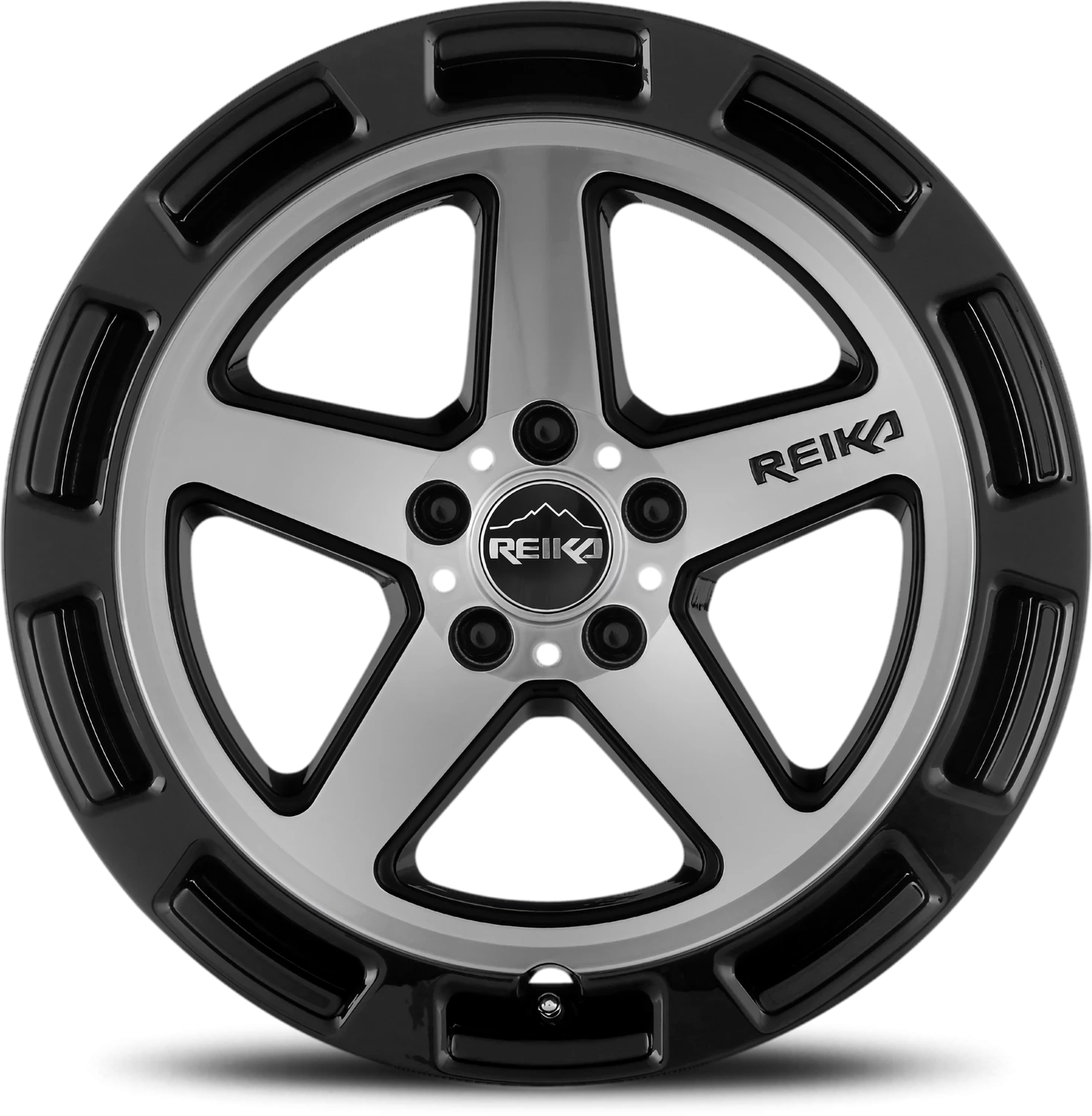

The Reika Teton R20 is an aftermarket wheel for a vehicle-specific wheel and tire setup. Its 5 spoke design is finished in gloss black machine face. Check the application details below for the clearance and load requirements that apply to your vehicle.
Key Features
- Flow Formed aluminum construction
- Gloss Black Machine Face finish with a 5 spoke design
- One-piece wheel compatible with OE TPMS sensors
Fitment
| Years | Make | Model |
|---|---|---|
| 2013-2015 | Subaru | XV Crosstrek |
| 2016-2023 | Subaru | Crosstrek |
| 2013-2022 | Subaru | XV |
| 1998-2018 | Subaru | Forester |
| 2000-2014 | Subaru | Outback |
These applications are a starting point. Confirm brake clearance, hub bore, bolt pattern, offset, load rating, tire clearance, and lug-seat requirements before mounting a tire.
Specifications
| Manufacturer | Reika |
|---|---|
| Manufacturer Part Number | R20770151007F |
| Style | R20 |
| Size | 17x7 |
| Bolt Pattern | 5x100 |
| Offset | +15mm |
| Hub Bore | 65.1mm |
| Finish | Gloss Black Machine Face |
| Construction | Flow Formed |
| Material | Aluminum |
| Structure | 1-Piece |
| Backspacing | 4.63 in |
| Load Rating | 2100 lb |
| Wheel Weight | 25.3 lb |
| TPMS Compatible | Yes |
| Center Cap Included | Yes |
What's Included
One Reika R20 wheel and one matching center cap. Lug nuts, tires, and TPMS sensors are not included.
About Reika
Reika develops flow-formed and specialty wheels for crossovers, trucks, SUVs, and vans, with each configuration identified by its exact dimensions and load rating.
Related Reika Wheels
- Shop all Reika wheels
- Reika Teton R20 BRZ 17x7 +15 5x100mm 65.1mm Bronze
- Reika Teton R20 SB 17x7 +15 5x100mm 65.1mm Satin Black
- Reika Teton R20 BRZ 15x7 +15 5x100mm 56.1mm Bronze
Frequently Asked Questions
Will Reika R20770151007F fit my vehicle?
Match the 17x7 size, 5x100 bolt pattern, 65.1mm hub bore, +15mm offset, load requirement, brake clearance, tire clearance, and lug-seat geometry. Test fit the bare wheel before mounting a tire.
Does this wheel include lug nuts or TPMS sensors?
No. This listing is for one wheel with a matching center cap. Compatible lug nuts, tires, and TPMS sensors are selected separately.
Can I reuse the factory tire-pressure sensors?
The wheel is listed as compatible with OE TPMS sensors, but sensor frequency, valve fit, service parts, and vehicle relearn procedures must still be confirmed.
