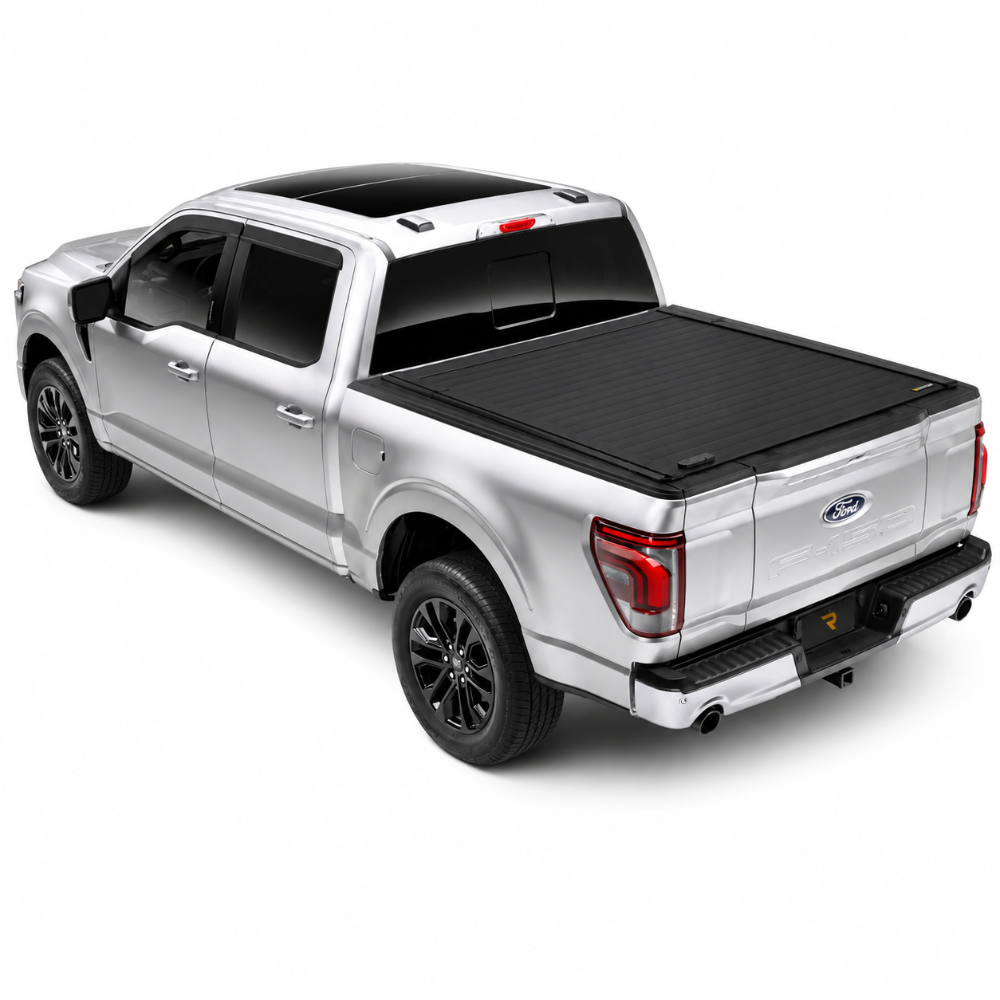

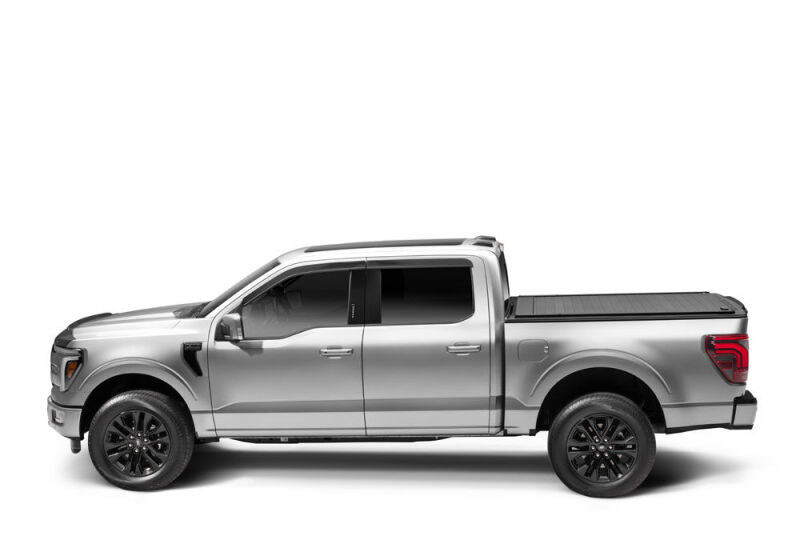

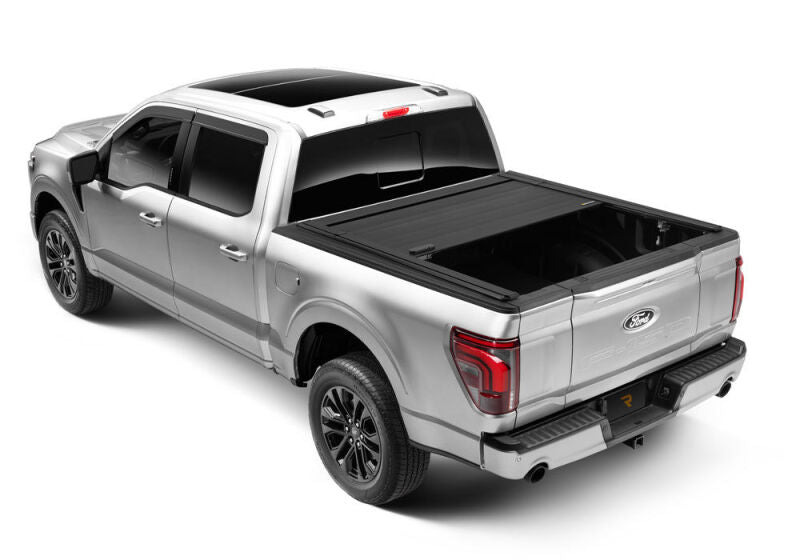

RealTruck 19-26 RAM 1500 5.7ft Bed (w/o MultiFunction Tailgate) RetraxPRO EZ-Off FRC-4000

Full Bed Access on Demand the First Retractable Tonneau With a Removable Canister

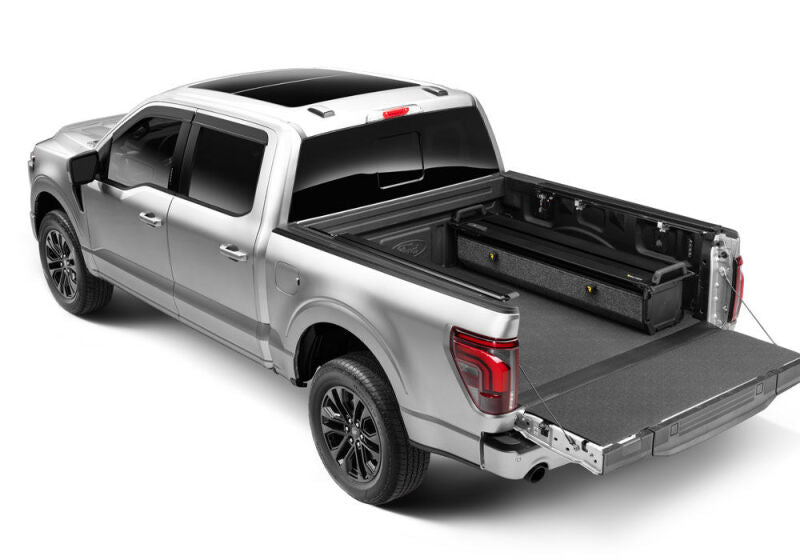

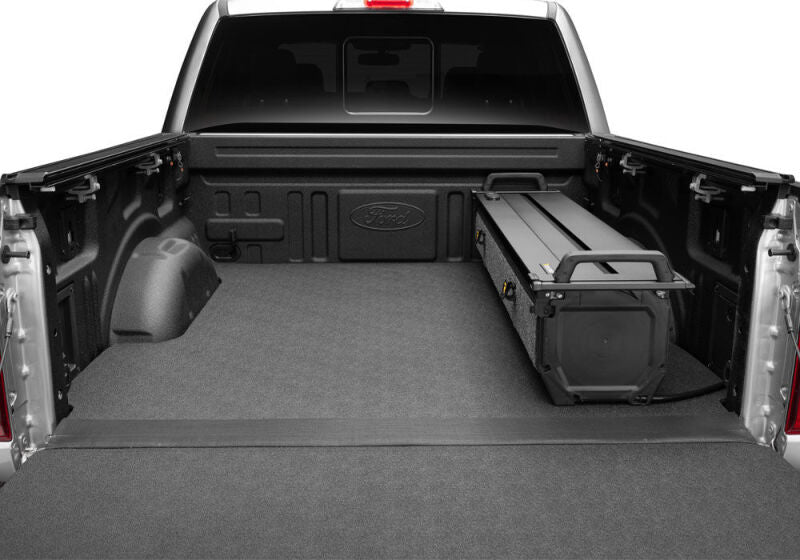

Every standard retractable tonneau cover solves one problem while creating another: you get weather protection and security, but you permanently sacrifice 12 inches of bed space to the canister. The Retrax FRC-4000 is the world's first retractable cover to eliminate that trade-off. The EZ-Off system lets two people remove the entire canister from the truck bed in under a minute using quick-click clasps and integrated lift handles, giving you 100% full bed access whenever you need it while keeping the rails in place for fast re-installation.

What Sets the FRC-4000 Apart

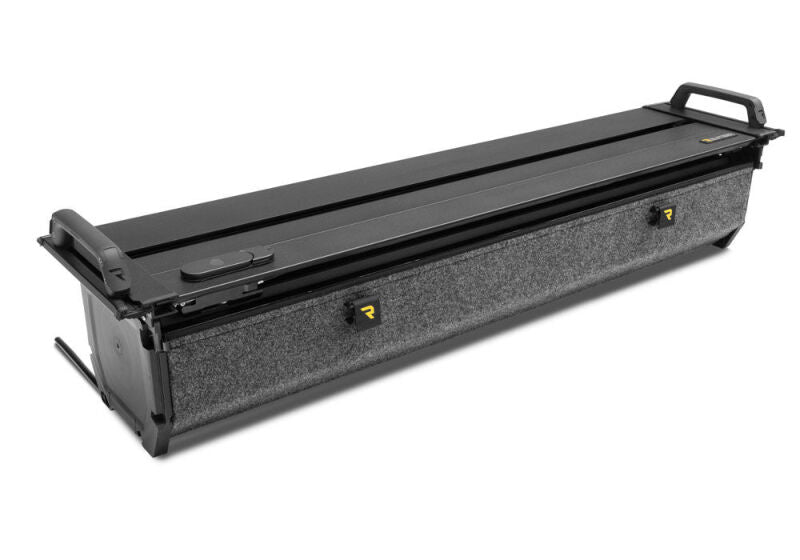

• EZ-Off quick-click canister removal full bed access without removing the rails

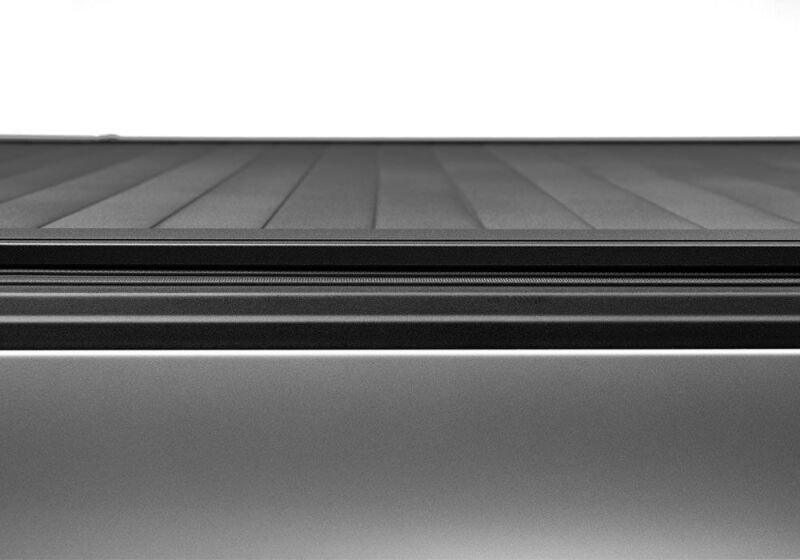

• Double-wall aluminum slat construction rated to support 500 lbs of evenly distributed load
• 21% more bed access than standard retractable covers when cover is fully open
• CoreTrax sealed stainless steel ball-bearing rollers maintenance free operation

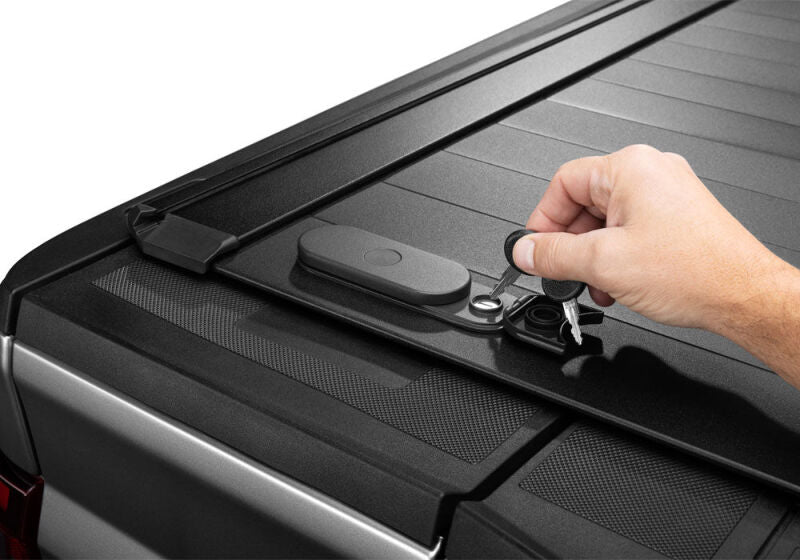

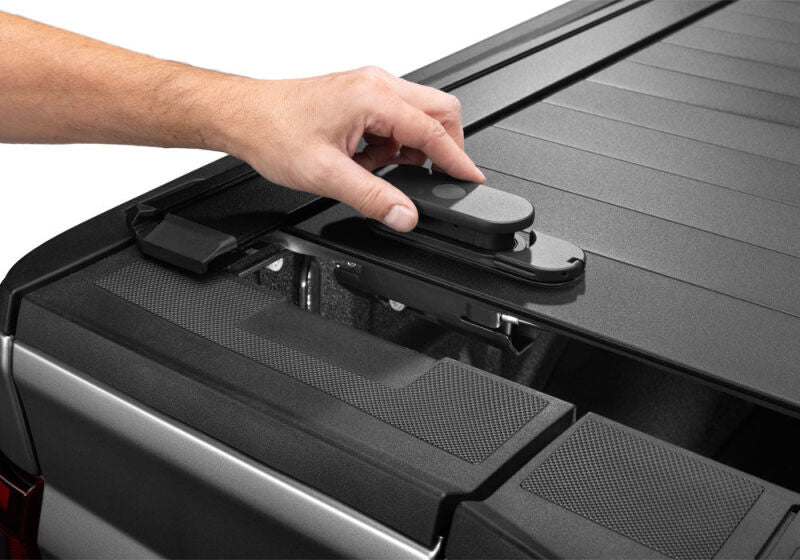

• TraxLatch keyed locking handle locks the cover in any position along the bed

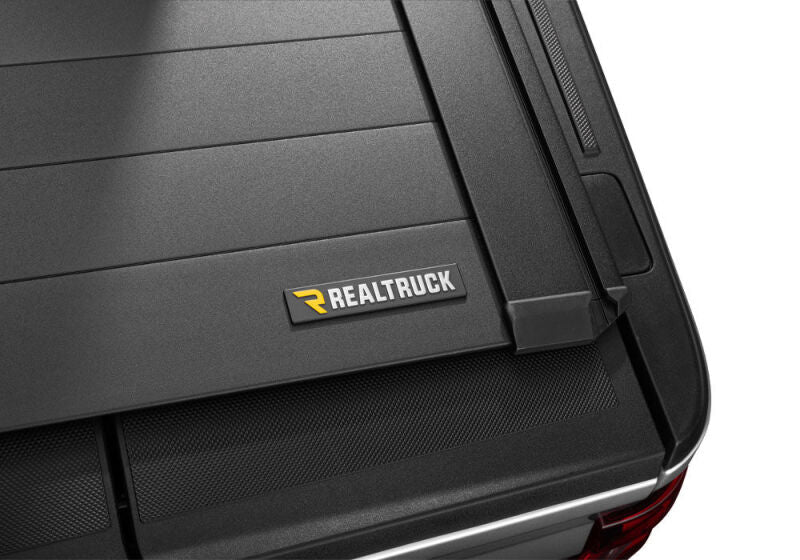

• Matte black powder-coat finish on all aluminum slats

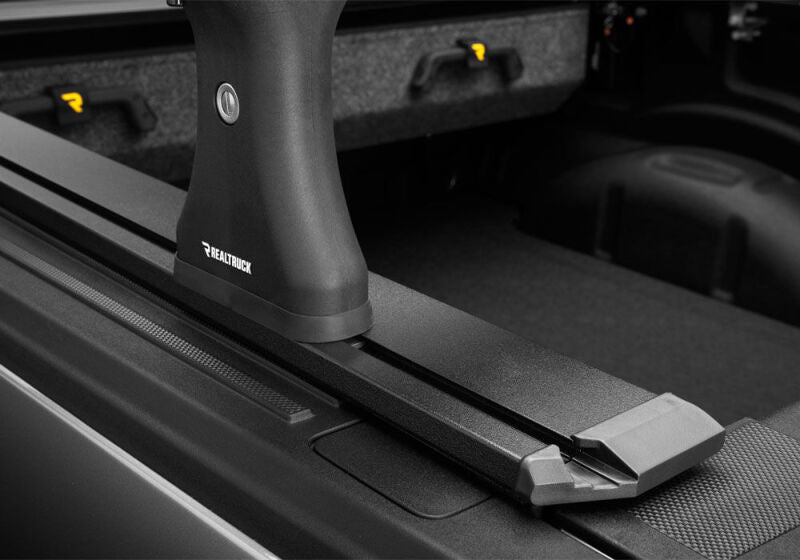

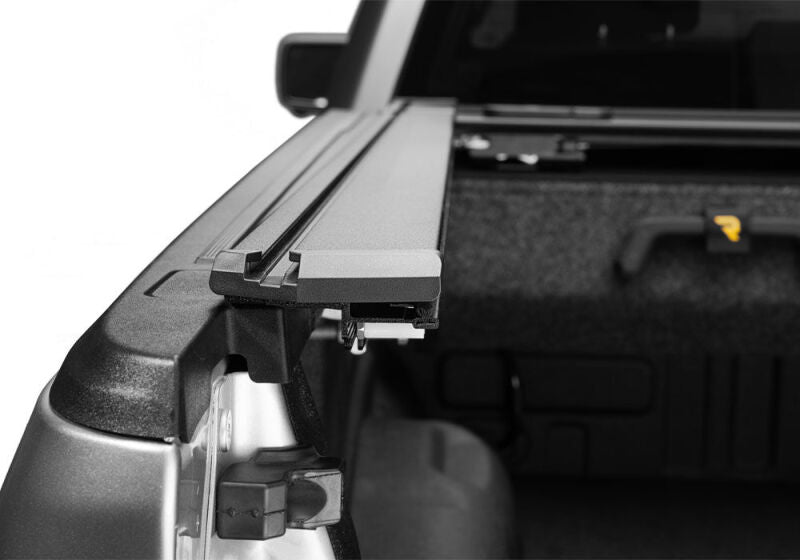

• Integrated T-Slot rails compatible with most bed rack and accessory systems
• Padded soft-impact storage case included for canister when removed
• Temperature rated from -40F to 180F

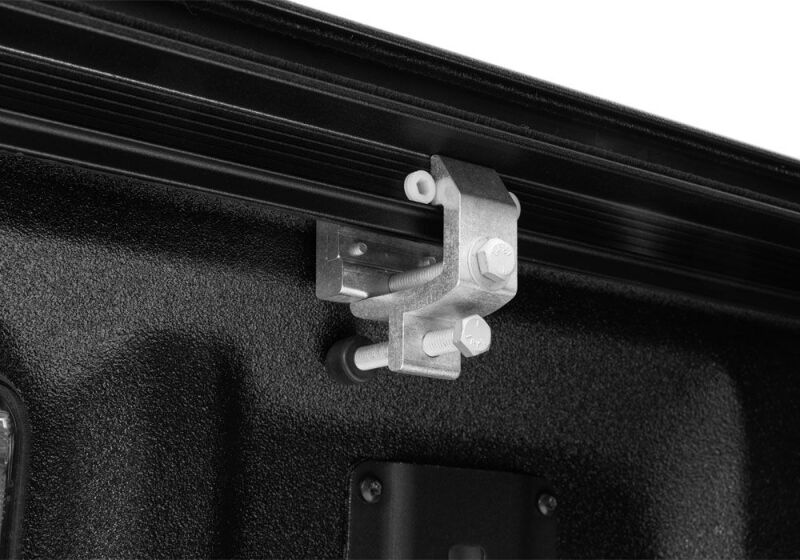

• Clamp-on, no-drill installation no bed modifications required
• Limited lifetime warranty

Product Specifications

What Is Included

• 1x Retrax FRC-4000 retractable cover with canister and slats
• 2x Side rail assemblies

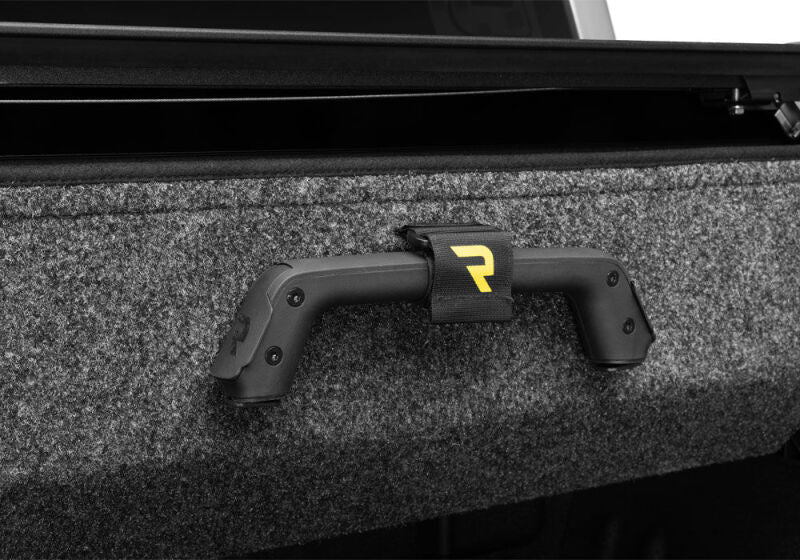

• Canister lift handles (2)
• Padded soft-impact canister storage case
• Drain tubes and couplers
• All mounting hardware and clamps
• TraxLatch locking handle with keys
• Installation instructions

Fitment

Verify bed length before ordering. This cover fits the 5.7ft (67.4in) bed only. Not compatible with the RAM 1500 MultiFunction Tailgate. For the 6.4ft bed, see FRC-4000 part number R-T-80245.

Frequently Asked Questions

Q: How long does it take to remove the FRC-4000 canister?

A: With two people, the entire canister can be removed in under one minute using the quick-click clasps and included lift handles. The rails stay in place so re-installation is equally fast.

Q: Do the side rails stay on the truck when the canister is removed?

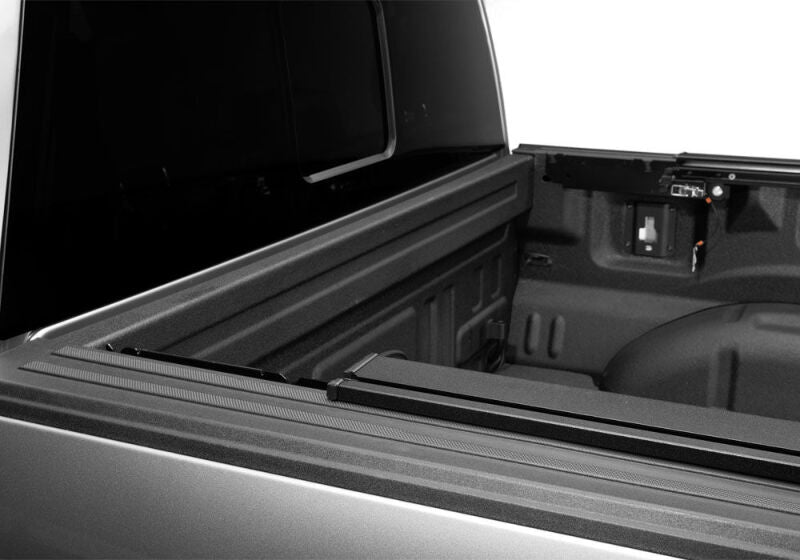

A: Yes. The FRC-4000 uses a split rail and latching system specifically designed so the rails remain clamped to the bed while the canister is removed. You get full bed access without touching the rails.

Q: How much weight can the FRC-4000 support?

A: The double-wall aluminum slats are rated to support 500 lbs of evenly distributed load. Do not concentrate load on a single slat.

Q: Does the FRC-4000 require drilling?

A: No. The FRC-4000 uses a clamp-on installation system. No drilling or bed modifications are required. All mounting hardware and clamps are included.

Q: Does the FRC-4000 work with bed racks and accessories?

A: Yes. The integrated T-Slot rails on the FRC-4000 are compatible with most T-slot bed rack and accessory systems, including many from RealTruck and other major brands.

Q: Will this fit my RAM 1500 with the MultiFunction Tailgate?

A: No. The FRC-4000 (R-T-80243) is specifically for RAM 1500 trucks without the MultiFunction Tailgate. A separate part number is required for MultiFunction Tailgate fitment.

Q: What is the warranty on the Retrax FRC-4000?

A: The FRC-4000 is covered by a limited lifetime warranty. Under the Magnuson-Moss Warranty Act, this warranty applies to manufacturing defects and cannot be voided by normal use of the truck for work or recreation.

Q: How does the FRC-4000 handle rain and water?

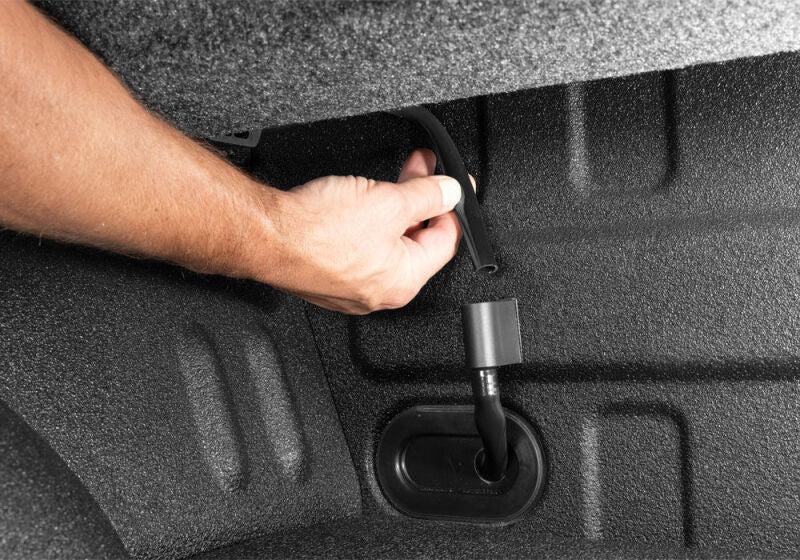

A: The FRC-4000 includes integrated drain tubes that route water that enters through the canister out of the truck bed. The cover is weather-resistant but not fully waterproof. For maximum water protection in heavy rain, close the cover fully.

Q: Can one person remove the canister?

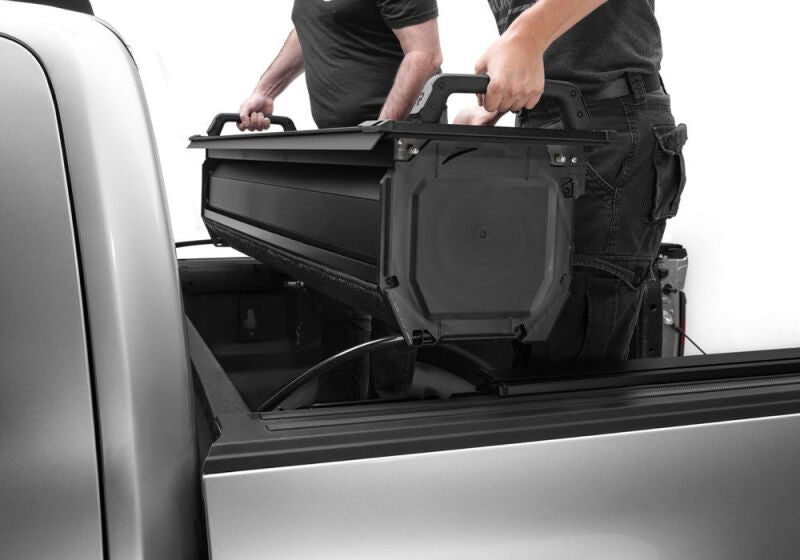

A: Retrax recommends two people for canister removal. The canister weighs approximately 100 lbs and is designed with lift handles on each side for a two-person lift.

Installation Overview

The FRC-4000 is a clamp-on, no-drill installation. Tools needed: ratchet with 9/16 and 7/16 sockets, tape measure, scissors. Two people recommended for canister placement.

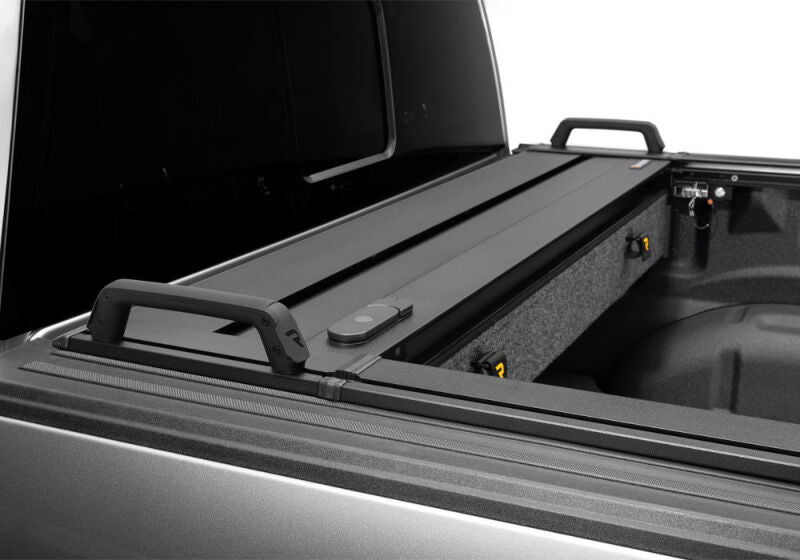

1. Attach canister liner and lift handles to the canister before bringing it to the truck.
2. Install drain tubes on each side of the canister.
3. Assemble driver-side and passenger-side rail assemblies on a workbench, installing the canister bracket latch and spacer onto each rail with nyllock nuts.
4. Set the driver-side rail in the truck bed using the included tailgate spacer tool (1/8 inch gap) to set correct front-to-back position. Secure with the provided T-nuts and bolts using a 9/16 socket.
5. Repeat for the passenger-side rail.
6. Measure inside T-slot spacing at front and rear to confirm rails are parallel. Add shims between rail and bracket if adjustment is needed.
7. With two people, lift the canister into the bed and lower it onto the rail brackets. Slide toward the tailgate to engage the latching pins on both sides.

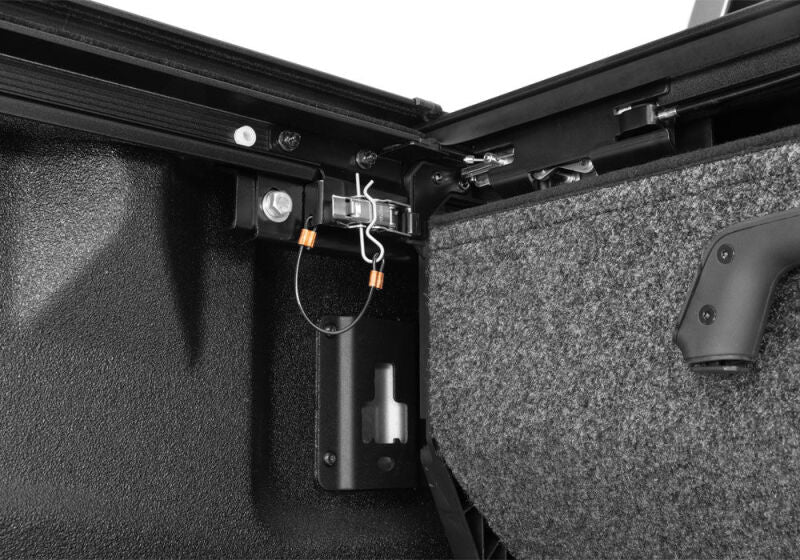

8. Secure the draw latches on each side and install the cotter pins.
9. Connect drain tube couplers to the bed wall using adhesive promoter and provided Velcro.
10. Remove lift handles before driving. Test cover operation and lock function.
11. Recheck clamp bolt torque after the first week of use.
