Ridetech Bolt-On 4-Link Suspension System for 2007-2018 Chevy Silverado and GMC Sierra 1500

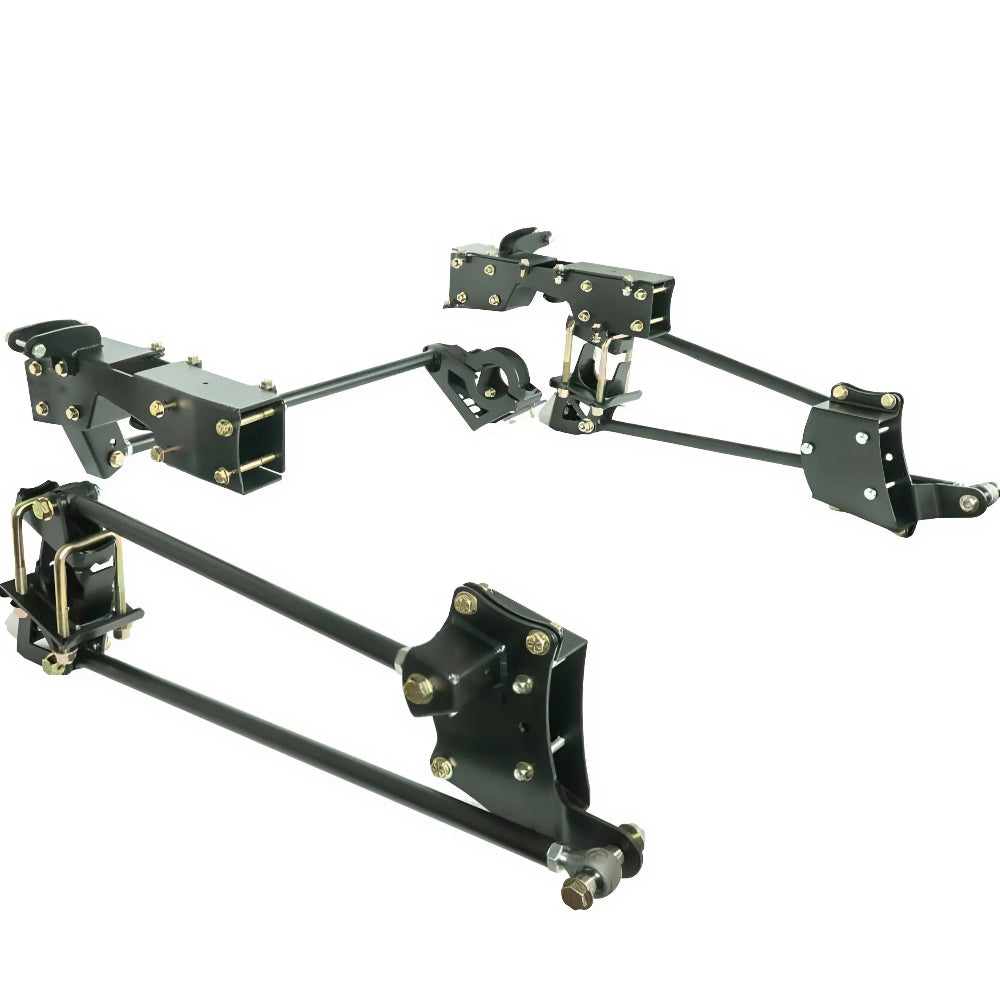

The Ridetech Bolt-On 4-Link Suspension System, MPN 11707199, replaces the factory rear leaf springs on 2007-2018 Silverado and Sierra 1500 trucks with a 4-link setup for improved traction, reduced body roll, and a lower stance. The kit uses 1.25 inch diameter steel upper and lower link bars, an adjustable panhard bar to center the rear axle, and patent-pending R-Joint rod ends to reduce noise and binding compared to conventional rod ends. Ride height drops approximately 6 inches at static height, with up to 9 inches of drop available when used with fully deflated Shockwaves.
Key Features
- 1.25 inch diameter steel upper and lower link bars with a black powder-coated finish
- Adjustable panhard bar to center the rear axle and reduce body roll

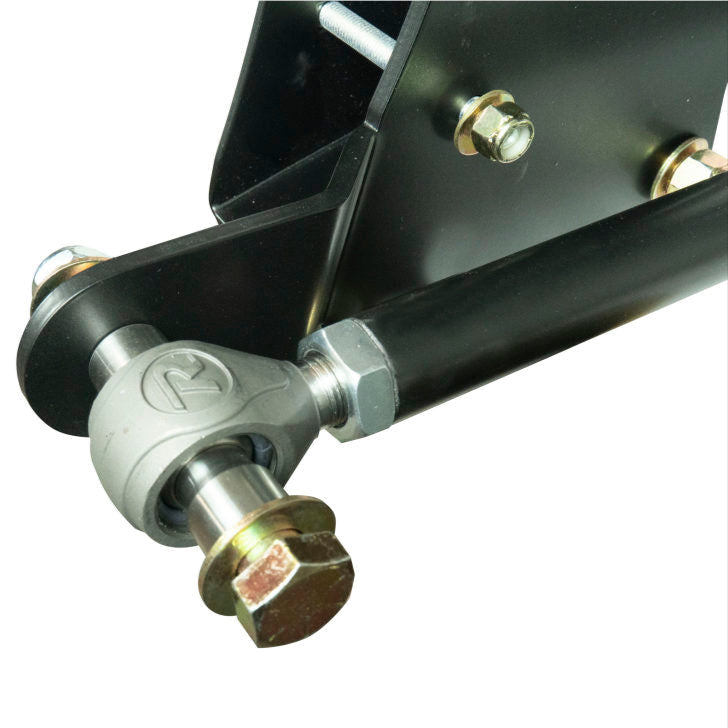

- Patent-pending R-Joint rod ends to reduce noise and binding
- C-notch kit reinforces the frame rails at the new suspension mounts
- Bolt-on installation, no welding required
- Compatible with Ridetech coilovers or Shockwave air suspension, sold separately
- Approximately 6 inch drop at ride height, up to 9 inches with Shockwaves fully deflated
Fitment
| Year | Make | Model |
|---|---|---|
| 2007-2019 | Chevrolet | Silverado 1500 |
| 2007-2019 | GMC | Sierra 1500 |
MPN 11707199 fits 2WD and 4WD Silverado and Sierra 1500 trucks in all cab and bed configurations, including the 2019 Legacy and Classic models.
Specifications
| Detail | Value |
|---|---|
| MPN | 11707199 |
| SKU | RID11707199 |
| UPC | 840123514394 |
| Link Bar Diameter | 1.25 in steel tubing |
| Drop Height | Approximately 6 in at ride height, up to 9 in with Shockwaves deflated |
| Finish | Black powder coat |
| Drivetrain Compatibility | 2WD and 4WD |
| Weight | Approximately 75 lbs |
| Warranty | 1 year, non-transferable, on the 4-link kit |
What's Included
- Upper and lower link bars
- Adjustable panhard bar

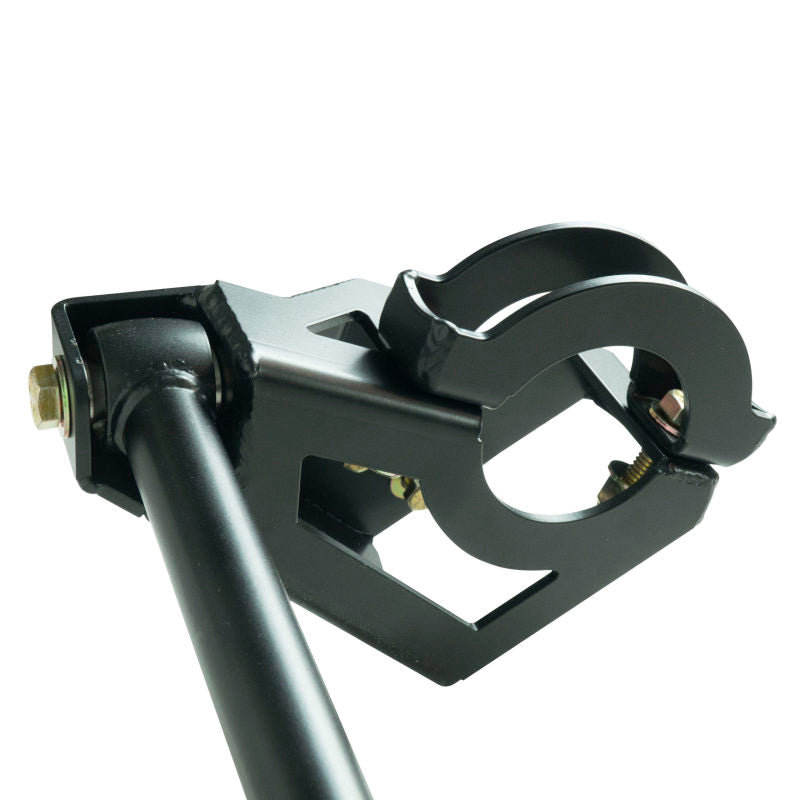

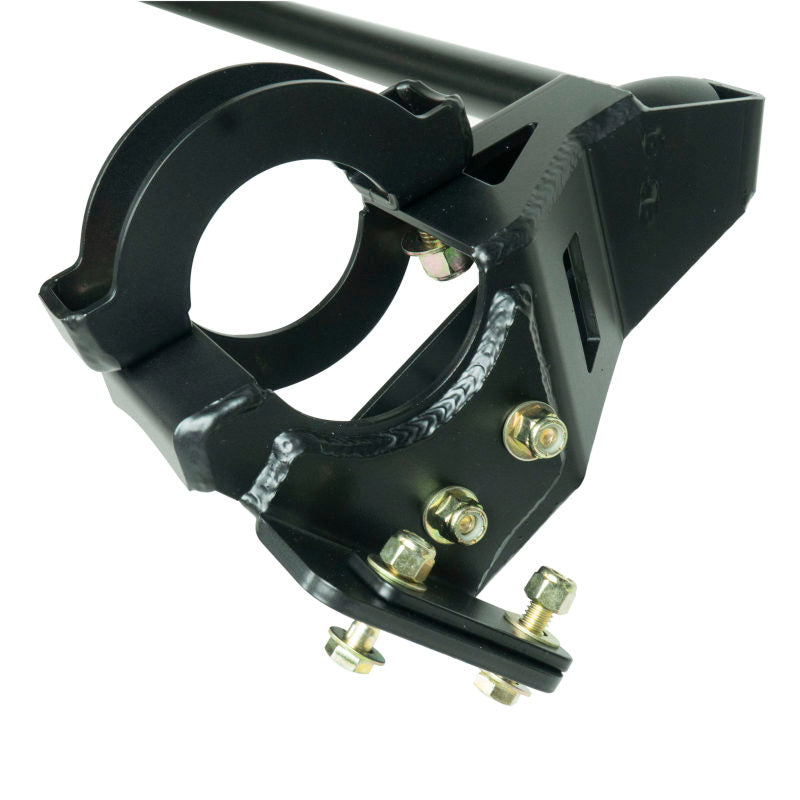

- Mounting brackets
- C-notch kit
- R-Joint rod ends
- Hardware kit
Coilovers or Shockwave air suspension are required to complete the system and are sold separately from MPN 11707199.
About Ridetech
Ridetech engineers bolt-on 4-link and coilover systems to replace factory leaf spring suspension on classic and modern trucks, pairing each 4-link kit like MPN 11707199 with Ridetech coilover or Shockwave air suspension for a complete rear suspension upgrade.
Related Parts
Frequently Asked Questions
Does this kit include coilovers or shocks?
No. Coilovers or Shockwave air suspension are required to complete the system and are sold separately.
Does installation require welding?
No. The system bolts on using the included C-notch kit and hardware, though minimal drilling may be needed depending on the frame.
How much does this kit lower the truck?
Ride height drops approximately 6 inches at static height, with up to 9 inches of drop available when paired with fully deflated Shockwaves.
Does this kit work with 4WD trucks?
Yes. This kit fits both 2WD and 4WD Silverado and Sierra 1500 trucks.

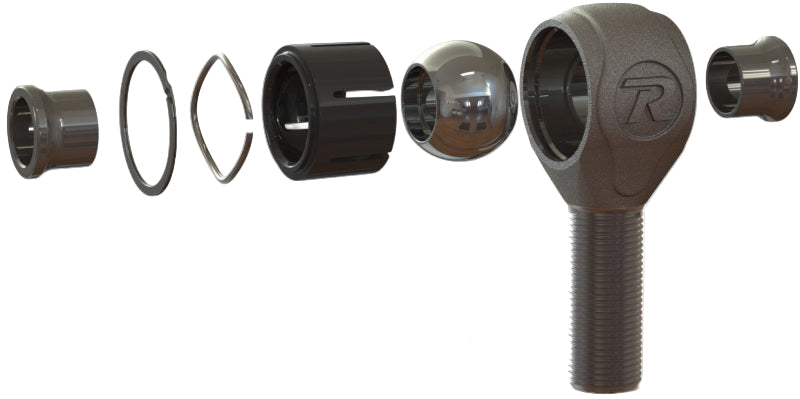

What do the R-Joint rod ends do?
The patent-pending R-Joint rod ends reduce noise and binding compared to conventional rod ends, for a quieter and more responsive ride.
What is the panhard bar for?
The adjustable panhard bar centers the rear axle under the truck, reducing body roll and keeping wheel-to-fender clearance even on both sides.
Is professional installation required?
Professional installation is recommended for correct fitment and alignment, though the kit is designed as a bolt-on system.
What warranty applies to this kit?
The 4-link kit carries a 1 year non-transferable warranty. Ridetech shocks purchased separately carry Ridetech's 1,000,001 Mile Warranty.
