Ridetech 14-18 Silverado 1500 Front Upper StrongArms For OE Stamped or Alu. Arms

Fix Ball Joint Angle and Unlock Camber Adjustment on Your Lowered 2014-2018 Silverado or Sierra

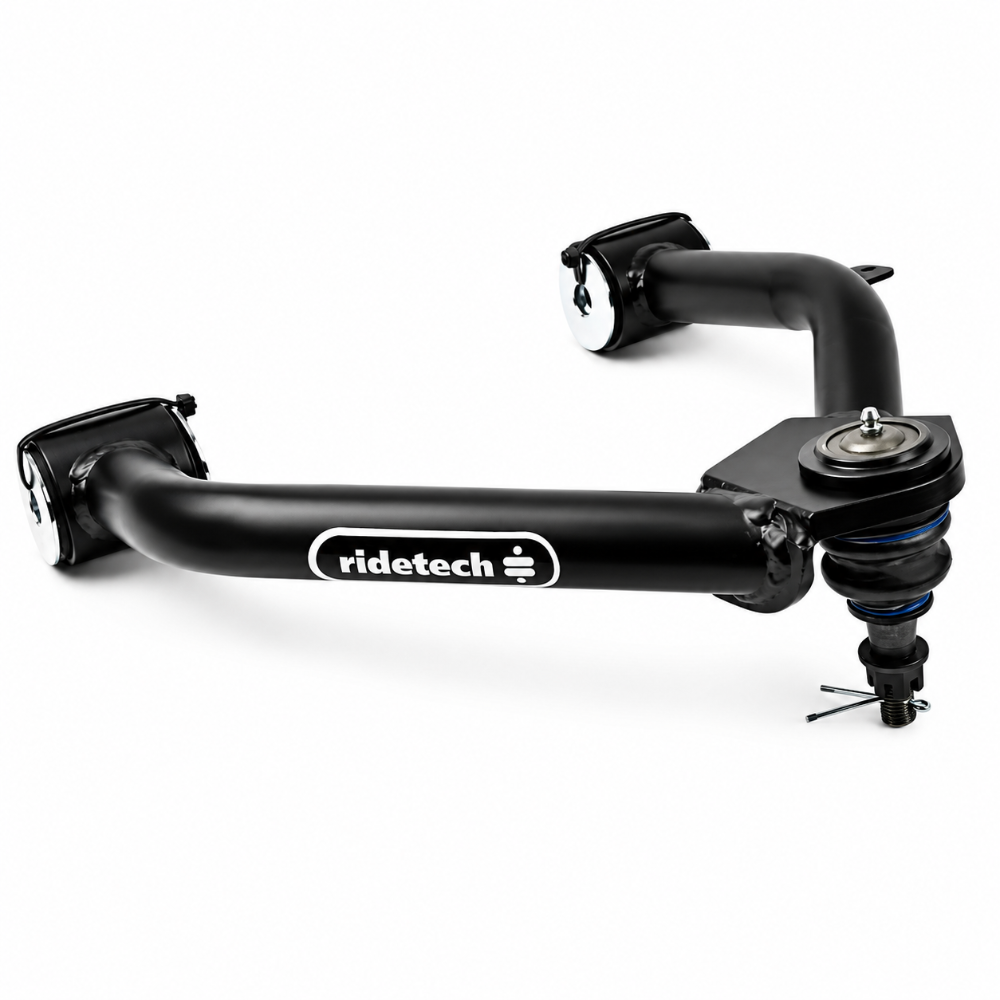

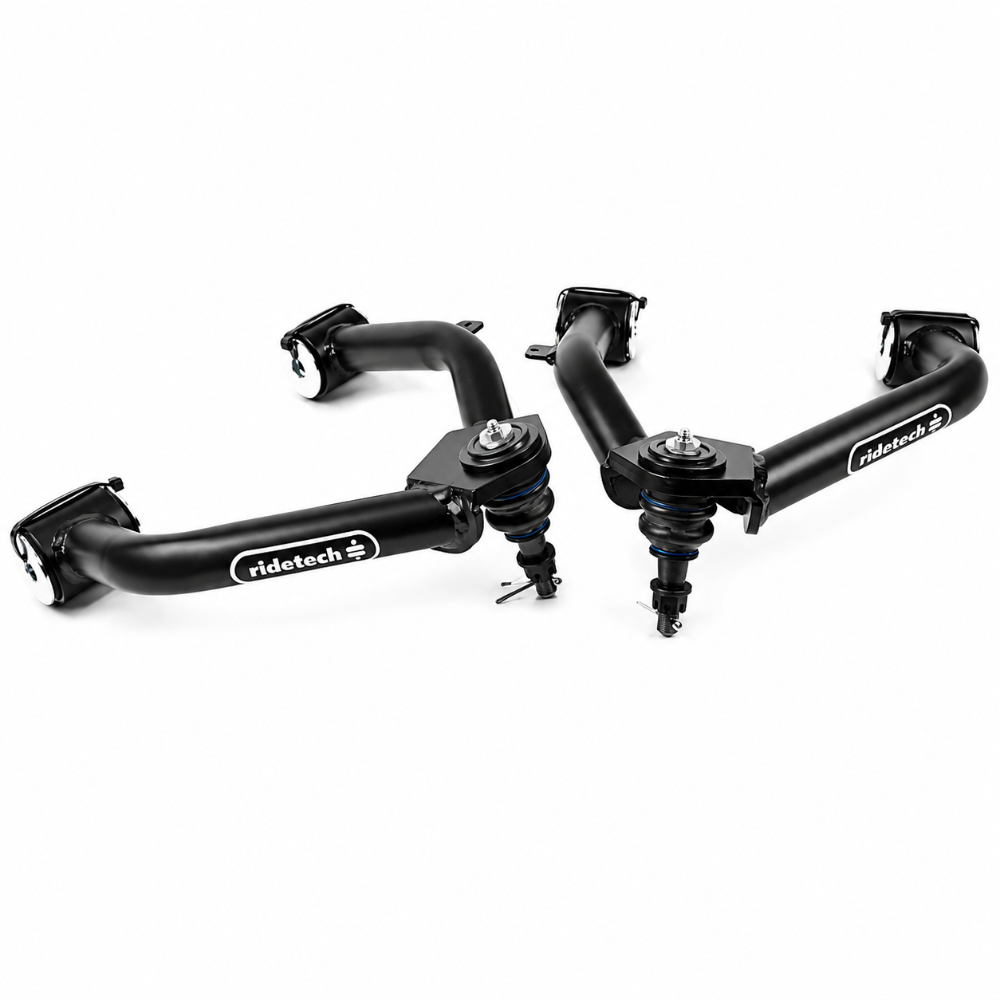

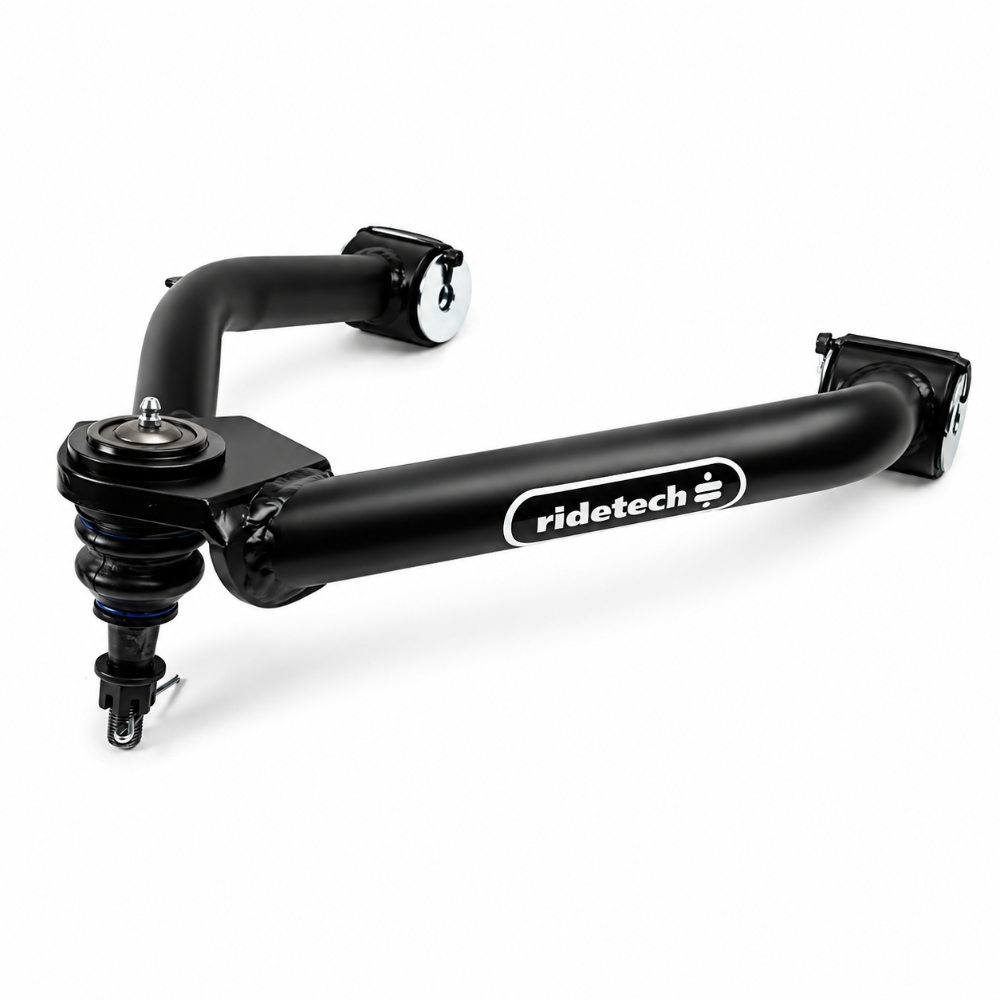

The Ridetech 11713699 Front Upper StrongArms are tubular upper control arms engineered for 2014-2018 Chevrolet Silverado 1500 and GMC Sierra 1500 2WD and 4WD trucks that use the factory stamped steel or cast aluminum OE control arms. When lowering a Silverado or Sierra 4 inches or more using drop spindles, the factory upper control arms create incorrect ball joint geometry and severely limit camber adjustment. The Ridetech 11713699 corrects that geometry with a precision-bent tubing design, giving you the camber range needed to achieve proper alignment on a lowered truck without compromise. Every arm is developed by Ridetech on an actual running, driving vehicle at their Jasper, Indiana facility to confirm fitment and geometry before release. The 11713699 comes fully assembled with ball joints and Delrin bushings, powder coated satin black, and ready to install.

Key Features

• Ridetech 11713699 tubular upper control arms correct ball joint angle for trucks lowered 4 inches or more with drop spindles
• Significantly expanded camber adjustment range versus factory stamped steel or aluminum arms
• Injection-molded Delrin bushings impregnated with Teflon for reduced deflection and no-lube service life
• Precision CNC tubing bending for accurate, repeatable geometry on every set
• Contoured perimeter maximizes wheel clearance and turning radius for lowered applications
• Completely assembled with press-in ball joints and bushings — bolt-on installation, no fabrication required
• Powder coated in satin black for corrosion resistance and clean appearance
• Developed and manufactured by Ridetech in Jasper, Indiana on actual test vehicles
• Fits 2014-2018 Chevrolet Silverado 1500 and GMC Sierra 1500 2WD and 4WD (with OE stamped steel or aluminum arms only)

Fitment

Specifications

What's Included

• 2x Ridetech 11713699 front upper tubular control arms (driver and passenger side)
• Press-in ball joints (pre-installed)
• Delrin bushings with Teflon impregnation (pre-installed)
• All necessary mounting hardware

Frequently Asked Questions

Yes. The Ridetech 11713699 is a direct replacement for the factory upper control arms on 2014-2018 Chevrolet Silverado 1500 and GMC Sierra 1500 trucks equipped with the OE stamped steel or cast aluminum upper control arms. They bolt directly to the factory mounting locations with no welding or fabrication required.

The 11713699 fits 2014-2018 Silverado and Sierra 1500 trucks that came from the factory with stamped steel or cast aluminum upper control arms. The 11703699 is designed for trucks with OE cast steel control arms. Some 2014-2016 model year trucks have cast steel arms. Check your factory arm material before ordering to ensure you order the correct part number.

Ridetech designed the 11713699 to provide a significantly wider camber adjustment range than factory arms, particularly when the truck is lowered 4 inches or more using drop spindles. The exact degree of adjustment depends on your specific suspension configuration. A professional alignment is required after installation to confirm and set final alignment specifications.

No. The Ridetech 11713699 StrongArms are designed for use with a drop spindle lowering application and do not require Ridetech coilovers. They can be used with other lowering methods that use drop spindles on the 2014-2018 Silverado and Sierra 1500 platform.

Trucks equipped with factory magnetic ride control suspension may require additional components or shock simulators when modifying the suspension. Check with Ridetech directly if your Silverado or Sierra 1500 has MRC before ordering.

No. The Delrin bushings used in the 11713699 are injection-molded and impregnated with Teflon. This combination eliminates the need for lubrication and significantly reduces deflection and stiction that are common with polyurethane or rubber bushing designs.

The 11713699 uses OEM-style bolt-on mounting hardware and comes fully assembled. The installation process is similar to a conventional upper control arm swap, requiring a floor jack, jack stands, and standard hand tools. A professional four-wheel alignment is required after installation and is not a DIY step.

The 11713699 uses Teflon-impregnated Delrin bushings that provide reduced deflection and stiction versus polyurethane, resulting in a suspension that remains responsive without sacrificing ride compliance for daily driving. The satin black powder coat finish is suited for both show and daily-use applications.

Installation Instructions

1. Safely raise the front of the truck and support it on jack stands at the frame. Do not support by the suspension.
2. Remove the front wheel and tire assembly to access the upper control arm.
3. Compress the front coilover or spring to relieve tension on the upper control arm. Use a spring compressor or support the lower control arm with a floor jack.
4. Disconnect the factory upper ball joint from the steering knuckle by removing the castle nut and using a ball joint separator. Take note of any shim washers in the control arm mounts.
5. Remove the factory upper control arm mounting bolts at the frame. Note the position of any alignment shims and photograph before removal.
6. Remove the OEM upper control arm from the vehicle.
7. Position the Ridetech 11713699 StrongArm in place. Reinstall alignment shims in the same positions as the factory configuration if present.
8. Hand-tighten the upper control arm mounting bolts to the frame. Do not final-torque until the vehicle is at ride height.
9. Connect the new ball joint to the steering knuckle. Torque the castle nut to OEM specification and install a new cotter pin.
10. Reinstall the wheel and tire. Lower the vehicle to ride height before final-torquing all control arm bolts to OEM specification.
11. Repeat on the opposite side.
12. Schedule a professional four-wheel alignment immediately after installation. Camber and caster adjustments will be required.
