Ridetech 11534898 Rear steel leaf spring — leaf and shims only
Click to zoom in

Ridetech 1963-1982 Corvette Steel Leaf Spring Kit

Ridetech
RID11534898
840123519887
Leaf Springs & Accessories
19 Units In Stock - Ships Next Business Day
$ 325.00
$ 325.00

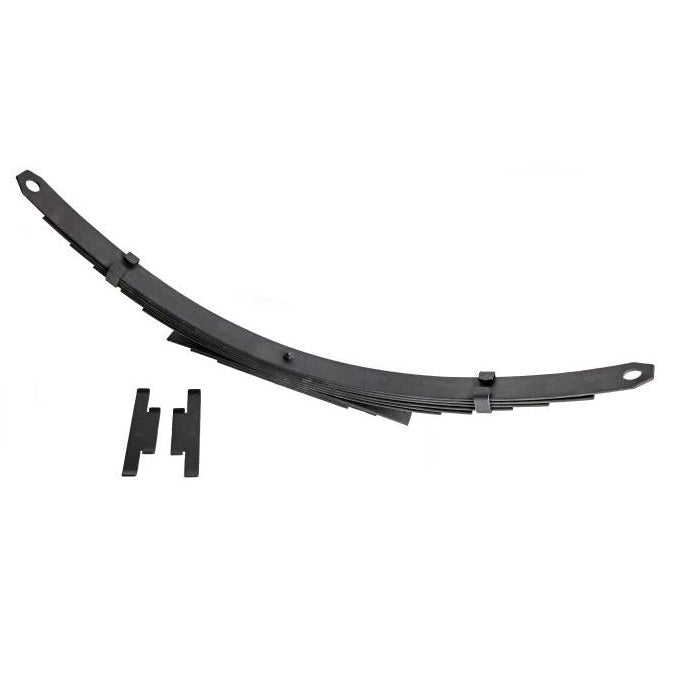

Ridetech Rear Steel Leaf Spring for 1963-1982 Corvette C2/C3, Leaf and Shims Only

The Ridetech Rear Steel Leaf Spring, MPN 11534898, is a replacement transverse leaf spring for a 1963-1982 Chevrolet Corvette C2 or C3, rated at 175 lb/in initial rate and 225 lb/in once the overload leaves engage. The spring uses 9 total leaves, 6 full length and 3 overload, and fits both 2.25 inch wide (1963-1978) and 2.5 inch wide (1978-1979) leaf applications using the included shims. The spring has an epoxy/graphite primer with a black topcoat. This part number is the leaf and shims only option. The complete kit with bushings and hardware is a separate SKU, part 11534899.

Key Features

  • Rear steel leaf spring, leaf and shims only, part 11534898
  • 175 lb/in initial rate, 225 lb/in with overload engaged
  • 9 total leaves, 6 full length and 3 overload
  • Fits 2.25 in (63-78) and 2.5 in (78-79) wide leaf applications via included shims
  • Epoxy/graphite primer with black topcoat
  • Ships as leaf spring 11534898, leaf and shims only

Fitment

Vehicle Application Position
1963-1982 Chevrolet Corvette (C2/C3) Rear

Specifications

Detail Value
MPN 11534898
Retailer SKU RID11534898
Spring Rate 175 lb/in initial, 225 lb/in with overload
Leaf Count 9 total, 6 full length, 3 overload
Width Fitment 2.25 in (63-78) and 2.5 in (78-79) via shims
Finish Epoxy/graphite primer, black topcoat

What's Included

  • 1 rear steel leaf spring
  • Width-fitment shims

About Ridetech

Ridetech engineers air suspension, coilovers, and chassis components in the USA and tests every system on real vehicles. Spring 11534898 is part of Ridetech's C2/C3 Corvette leaf spring lineup.

Related Parts

FAQ

Does this include mounting bushings and hardware?

No. This part number is the leaf and shims only option. The complete kit with bushings and hardware is a separate SKU, part 11534899.

What is the spring rate?

The spring rate is 175 lb/in initial and 225 lb/in once the overload leaves engage.

How many leaves does this spring have?

The spring has 9 total leaves, 6 full length and 3 overload.

Does this fit both 2.25 inch and 2.5 inch wide applications?

Yes. Included shims allow the spring to fit 2.25 inch (1963-1978) and 2.5 inch (1978-1979) wide leaf applications.

What finish does this spring have?

The spring has an epoxy/graphite primer with a black topcoat.

Does this fit a C2 Corvette?

Yes. This spring fits both C2 and C3 Corvettes from 1963 to 1982.

Is this a front or rear spring?

This is a rear transverse leaf spring.

Will I need new mounting bolts to install this spring?

Yes. The Ridetech leaf spring bolt and bushing kit is recommended and sold separately.

Installation Instructions

  1. Raise the rear of the vehicle and support the frame on jack stands
  2. Support the rear axle assembly
  3. Remove the factory leaf spring and mounting hardware
  4. Install the shims to match your leaf-spring width application
  5. Install the new leaf spring using the leaf spring bolt and bushing kit
  6. Torque all fasteners to the manufacturer's specification
  7. Lower the vehicle and check ride height before driving
