Fine Tune a Custom Coilover Suspension Setup

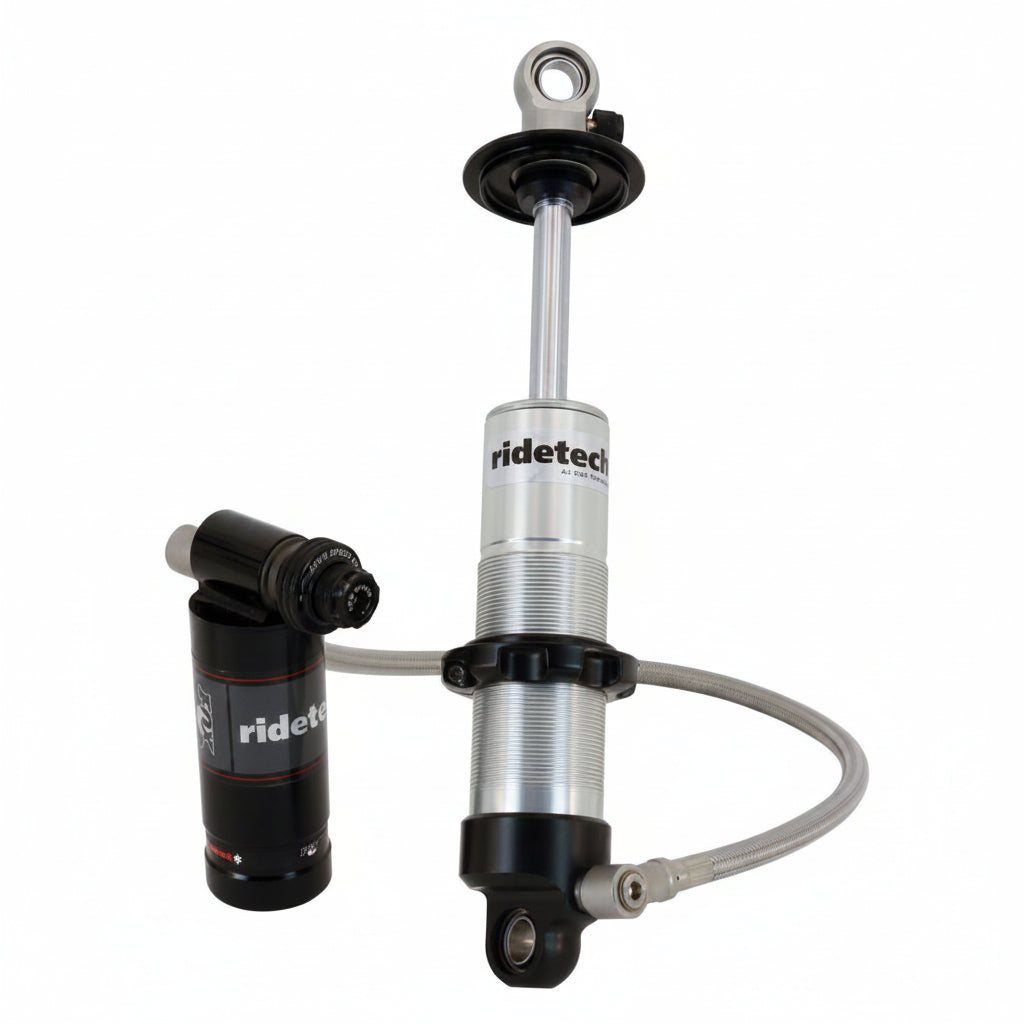

Ridetech 24359901 is a universal TQ Series coilover shock for custom suspension builds that require 5.2 inches of travel, eyelet mounting at both ends, and triple adjustable damping.
Key Features
- Triple adjustable damping provides rebound, high speed compression, and low speed compression tuning

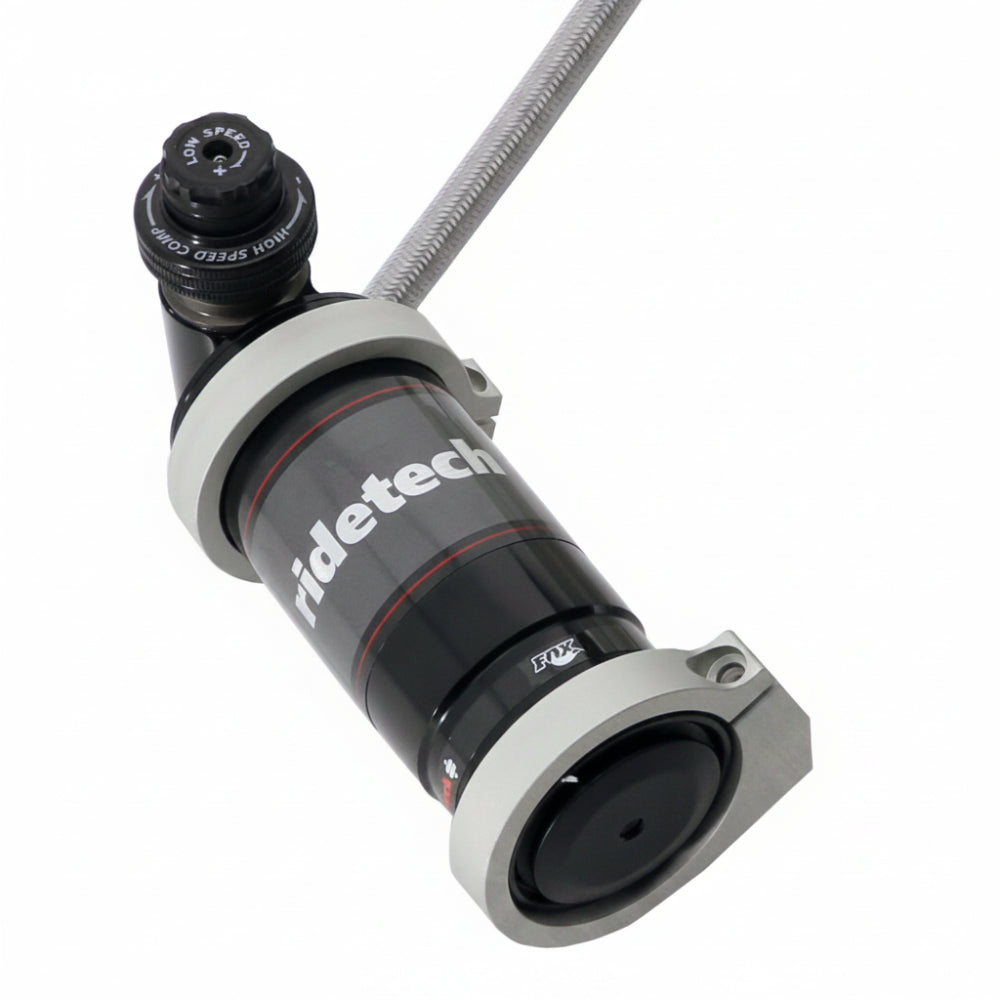

- Remote reservoir provides convenient access to the compression adjusters
- Eyelet mounting at both ends suits compatible custom suspension brackets
- Designed for a 2.5 inch inside diameter coil spring
Fitment
| Application | Compatibility Requirements |
|---|---|
| Universal application | Custom suspension setup using 1.7 inch eye mounts, eyelets at both ends, and the dimensions shown below |
Specifications
| Detail | Value |
|---|---|
| Brand | Ridetech |
| Series | TQ |
| Manufacturer part number | 24359901 |
| Adjustment | Triple adjustable |
| Shock travel | 5.2 in |
| Mounting | Eyelet upper and lower |
| Eye mount width | 1.7 in |
| Compressed length | 11.25 in |
| Extended length | 16.4 in |
| Ride height range | 13.75 to 14.5 in |
| Coil spring inside diameter | 2.5 in |
| Recommended TQ spring length | 10 in |
| Quantity | One shock |
What's Included
- One TQ Series triple adjustable coilover shock with remote reservoir
- Spring mounts
- Delrin spring washers
- One half inch and five eighths inch bearing spacers
About Ridetech
Ridetech develops adjustable suspension systems and components for custom, performance, and restoration vehicles. Its TQ Series gives builders separate damping controls for tuning ride quality and handling.
FAQ
What is the 24359901?It is one universal TQ Series coilover shock with 5.2 inches of travel, eyelet mounting, and a remote reservoir for triple adjustable damping.
Does this shock fit a specific vehicle?No vehicle specific fitment is assigned. Confirm the mounting style, compressed length, extended length, travel, and available clearance for the intended custom suspension setup.
Is a coil spring included?No coil spring is included. Use a compatible 2.5 inch inside diameter spring, with a 10 inch spring length recommended for this TQ configuration.
Which damping adjustments are available?The controls provide rebound, high speed compression, and low speed compression adjustment.
What mounting style does the shock use?The shock uses a 1.7 inch eye mount with eyelets at both the upper and lower mounting points.
What is the recommended installed ride height?The published ride height range is 13.75 to 14.5 inches, corresponding to approximately 50 to 60 percent of available travel.
Which bearing spacers are included?The package includes one half inch and five eighths inch bearing spacers for compatible mounting hardware.
How many shocks are included?The package contains one shock. Order the quantity required for the intended suspension layout.
Installation Instructions
- Compare the mounting style and all published dimensions with the intended suspension geometry before installation.
- Safely support the vehicle or chassis and remove the existing suspension component according to the applicable service instructions.
- Cycle the suspension to confirm adequate clearance at full compression and extension without binding.
- Install the eyelets with suitable hardware and the included bearing spacers that match the mounting points.
- Install a compatible 2.5 inch inside diameter coil spring and set preload and ride height for the suspension design.
- Secure the remote reservoir and hose away from heat, moving parts, and abrasion.
- Torque all fasteners to the specifications supplied by the chassis and hardware manufacturers.
- Begin with conservative damping settings, test at low speed, and recheck clearance and fastener torque.
