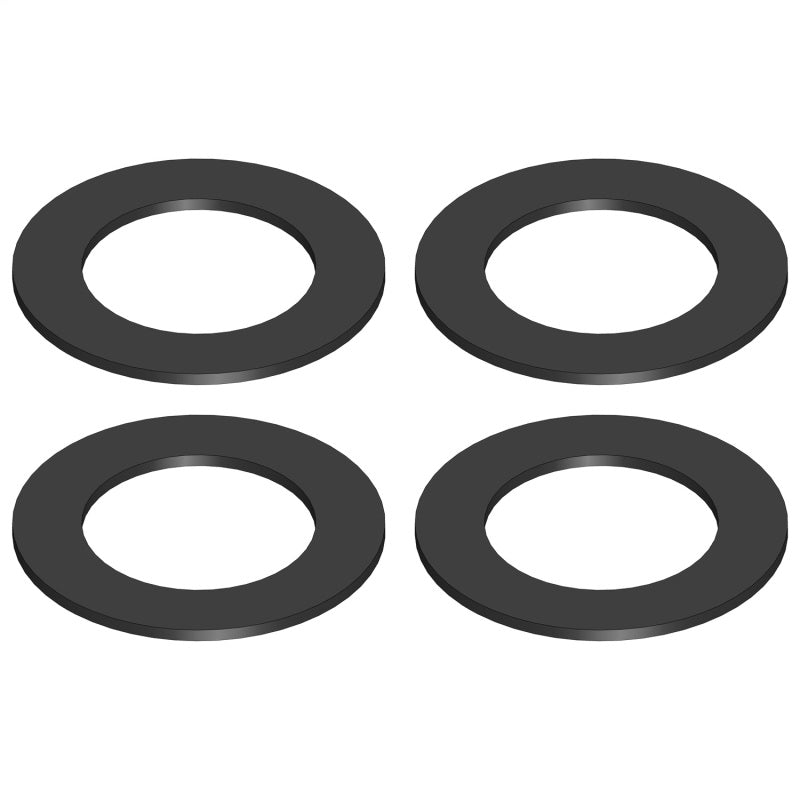

RockJock Antirock Sway Bar Bushing Shim (25 Spline Bar) primary product photo

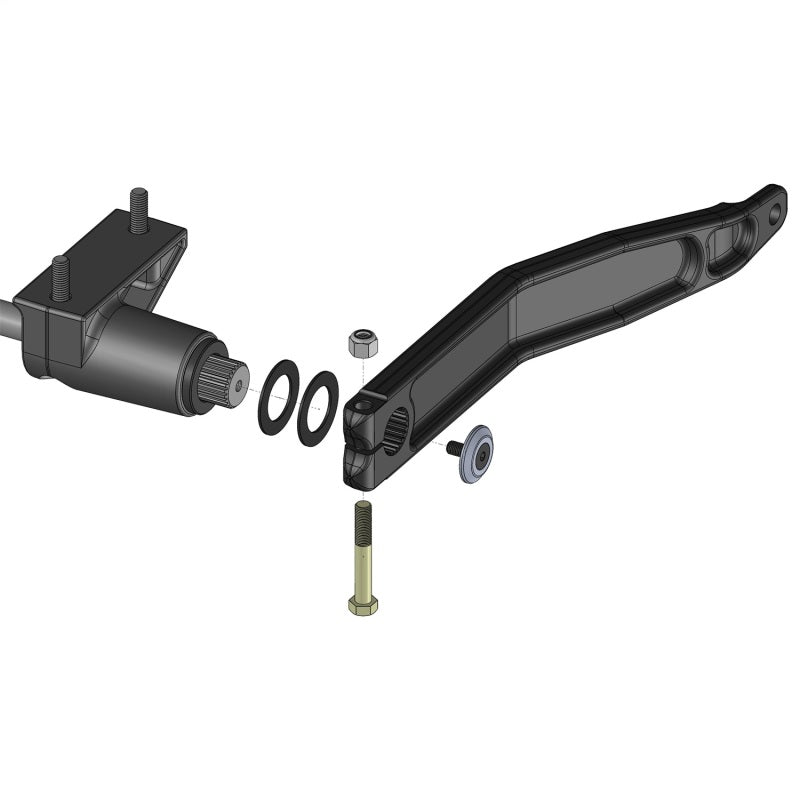

RockJock Antirock Sway Bar Bushing Shim (25 Spline Bar) unmounted component detail view
Click to zoom in

RockJock Antirock Sway Bar Bushing Shim (25 Spline Bar)

RockJock
ROKCE-9901D-SP4
810038158815
Sway Bars
20+ Units In Stock - Ships Next Business Day
$ 12.00
$ 12.00

Fine Tune Antirock Arm Fit With a Bushing Shim

RockJock's CE-9901D-SP4 is a bushing shim sized for the 25 spline Antirock sway bar family, used to fine tune bushing fit and arm positioning inside the mounting tube on Antirock sway bar installations.

Key Features

  • Sized for RockJock's 25 spline Antirock sway bar system
  • Used to fine tune bushing and arm fit inside the mounting tube
  • Compact hardware component for Antirock kit service and adjustment

Fitment

Year Make Model
Universal Jeep/Custom 25 Spline Antirock Sway Bar Systems

Specifications

Detail Value
Manufacturer part number CE-9901D-SP4
Application 25 spline Antirock sway bar bushing and arm fit adjustment

What's Included

  • 1 bushing shim

About RockJock 4x4

RockJock 4x4, made by Currie Enterprises, engineers Jeep-specific control arms, Johnny Joint rod ends, Antirock sway bar systems, and Currectlync steering components for TJ, LJ, XJ, JK, JL, and JT platforms. RockJock parts are built from forged and DOM steel for off-road durability and are designed to bolt into factory mounting points.

FAQ

What is this shim used for?

It is used to fine tune the fit of the bushing and arm on 25 spline Antirock sway bar systems.

Does this shim fit all Antirock bar diameters?

It is sized for the 25 spline bar family used across RockJock's Antirock kits.

Is this a wear item that needs periodic replacement?

It is primarily a fitment adjustment shim rather than a routine wear item.

Can this shim be used with aftermarket Antirock-style kits?

It is designed for RockJock's 25 spline Antirock system and fitment on other brands is not confirmed.

Does installing this shim require removing the sway bar?

Some disassembly of the bar, bushing, or arm area is typically needed to install a fit shim.

Is this shim sold individually?

Yes, it is available as an individual component.

What symptom would indicate this shim is needed?

Excess play or misalignment between the bushing and bar or arm on an Antirock installation.

Does this shim come with installation instructions?

RockJock's Antirock instruction manuals cover bushing and arm fitment procedures for the full system.

Installation Instructions

  1. Remove the Antirock arm or bushing assembly needing adjustment.
  2. Position the shim at the fit location identified as loose or misaligned.
  3. Reassemble the bushing, shim, and arm or bar components.
  4. Verify smooth bar rotation and correct arm positioning.
  5. Torque all related hardware to specification.
