Correct Trac Bar Geometry After Installing High Steer Knuckles

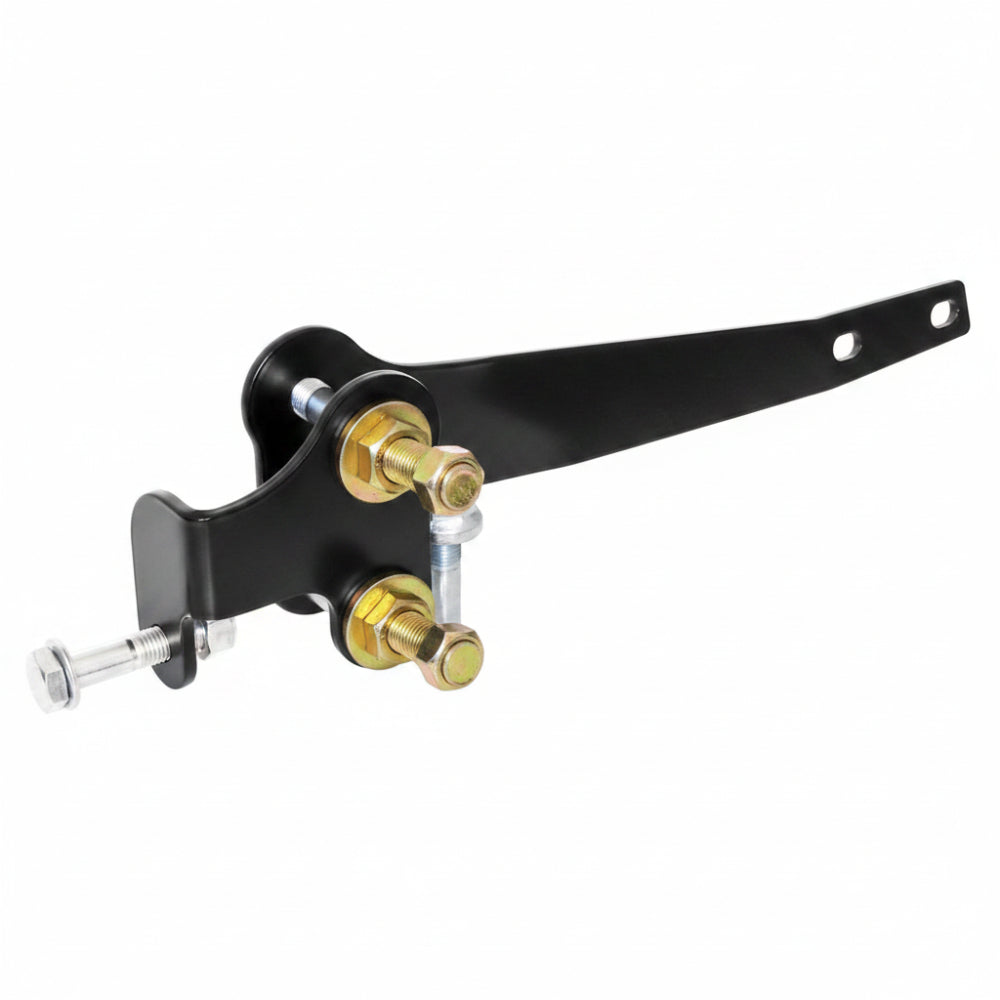

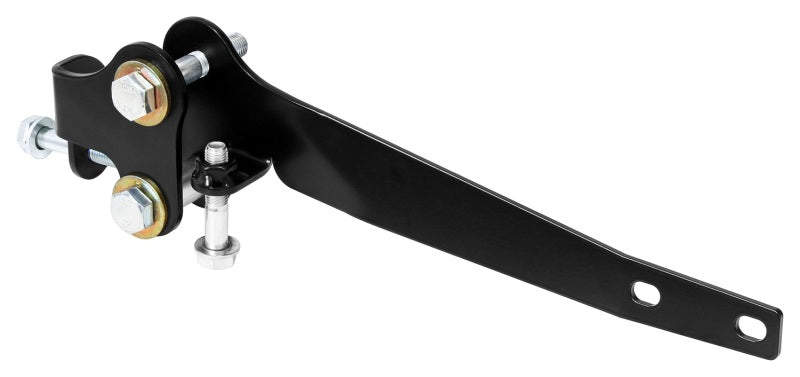

RockJock's RJ-441110-101 axle bracket is designed for use with RockJock's High Steer Knuckles on JL Wrangler, JL Unlimited, and JT Gladiator vehicles. High steer knuckles raise the tie rod and drag link significantly, and this bracket relocates the trac bar mounting point on the axle upward by 2 in. to prevent bump steer after the knuckle upgrade.
Key Features
- Bolts onto the factory axle housing, no welding required
- Raises the trac bar mounting point 2 in. to correct geometry
- Designed specifically to pair with RockJock High Steer Knuckles
- Prevents bump steer introduced by the steering geometry change
- Direct fit for JL, JL Unlimited, and JT Gladiator axles
Fitment
| Year | Make | Model |
|---|---|---|
| 2018-2026 | Jeep | Wrangler (JL) |
| 2018-2026 | Jeep | Wrangler Unlimited (JL) |
| 2020-2026 | Jeep | Gladiator (JT) |
Specifications
| Detail | Value |
|---|---|
| Manufacturer part number | RJ-441110-101 |
| Trac bar mount relocation | Raised 2 in. from stock location |
| Installation | Bolt-on to factory axle housing |
| Intended use | Paired with RockJock High Steer Knuckle kits |
| Vehicles | JL Wrangler, JL Unlimited, JT Gladiator |
What's Included

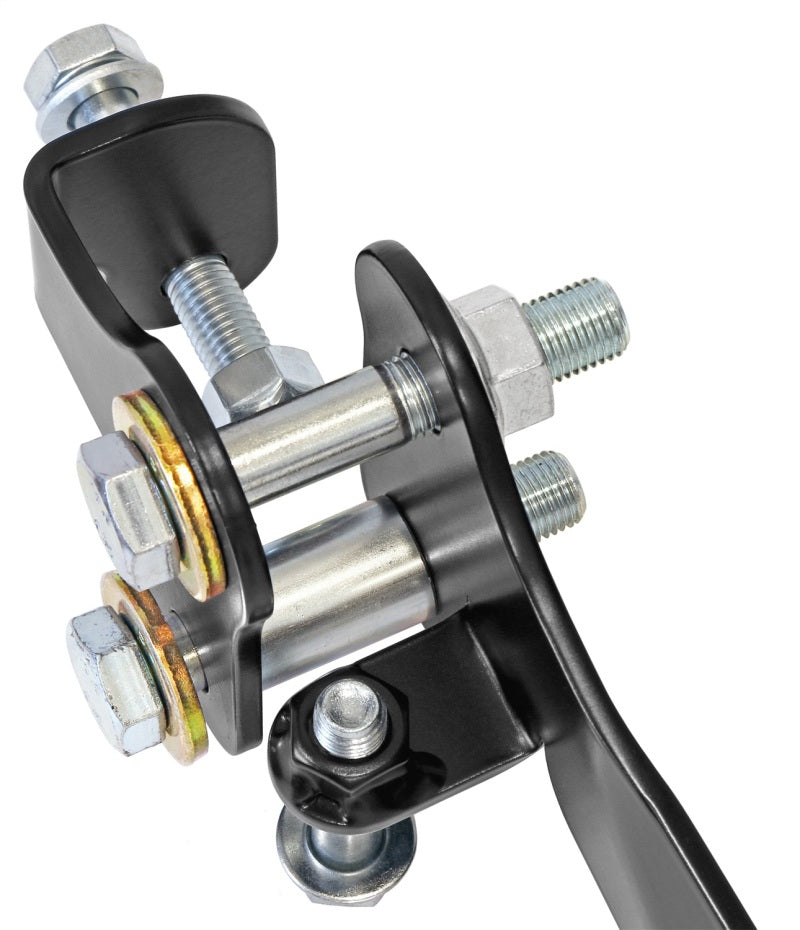

- 1 trac bar and steering stabilizer relocation bracket kit with mounting hardware
About RockJock 4x4
RockJock 4x4, made by Currie Enterprises, engineers Jeep-specific control arms, Johnny Joint rod ends, Antirock sway bar systems, and Currectlync steering components for TJ, LJ, XJ, JK, JL, and JT platforms. RockJock parts are built from forged and DOM steel for off-road durability and are designed to bolt into factory mounting points.
FAQ
Why is this bracket needed with High Steer Knuckles?High steer knuckles raise the tie rod and drag link significantly, and without geometry correction the trac bar can introduce bump steer.
Does this bracket require welding?No, it bolts onto the factory axle housing.
How much does this bracket raise the trac bar mount?2 in. from the stock mounting location.
What vehicles is this bracket designed for?JL Wrangler, JL Unlimited, and JT Gladiator models.
Can this bracket be used without RockJock High Steer Knuckles?It is designed specifically to correct the geometry change caused by High Steer Knuckles and is intended to be used with them.
Does this bracket also relocate the steering stabilizer?Yes, it is a combination trac bar and steering stabilizer shock relocation bracket.
Is this a left or right side specific bracket?It is designed for the axle-side trac bar mounting point, consult RockJock's install guide for exact orientation.
What hardware is included?All mounting hardware required to bolt the bracket to the factory axle housing is included.
Installation Instructions
- Support the vehicle and remove the factory trac bar and steering stabilizer shock from the axle.
- Bolt the RockJock relocation bracket onto the factory axle housing mounting points.
- Torque the bracket mounting hardware to the specified value.
- Reinstall the trac bar into the new, raised mounting point on the bracket.
- Reinstall the steering stabilizer shock into its relocated mount and verify clearance through full steering travel.
