Rebuild four compatible 2-inch standard Johnny Joints instead of replacing the complete assemblies with the RockJock CE-9112RK-BDL-4P four-pack. The kit supplies urethane bushing halves, two washer thicknesses, and snap rings for standard-width 1.45-inch joint bodies.
This RockJock universal service kit is restricted by joint dimensions, not vehicle make or model. MPN CE-9112RK-BDL-4P must be used only with a standard-width 2-inch Johnny Joint body, then serviced with non-synthetic hi-moly grease applied by a hand-pump gun.
Key Features
- Rebuilds four standard-width 2-inch Johnny Joints
- Urethane bushing halves with grease channel
- For 1.45-inch-wide standard joint bodies
- Includes retaining washers and snap rings
- Supports standard-body articulation of 30 degrees or more
Specifications
| Detail | Value |
|---|---|
| Brand | RockJock |
| MPN | CE-9112RK-BDL-4P |
| Product type | Johnny Joint rebuild kit four-pack |
| Joint body compatibility | Standard-width 2-inch Johnny Joint, 1.45-inch wide body |
| Bushing material | Urethane |
| Bushing outside diameter | 1.625-inch |
| Side retaining washers | 0.112-inch and 0.122-inch thickness |
| Articulation | 30 degrees or more for standard body |

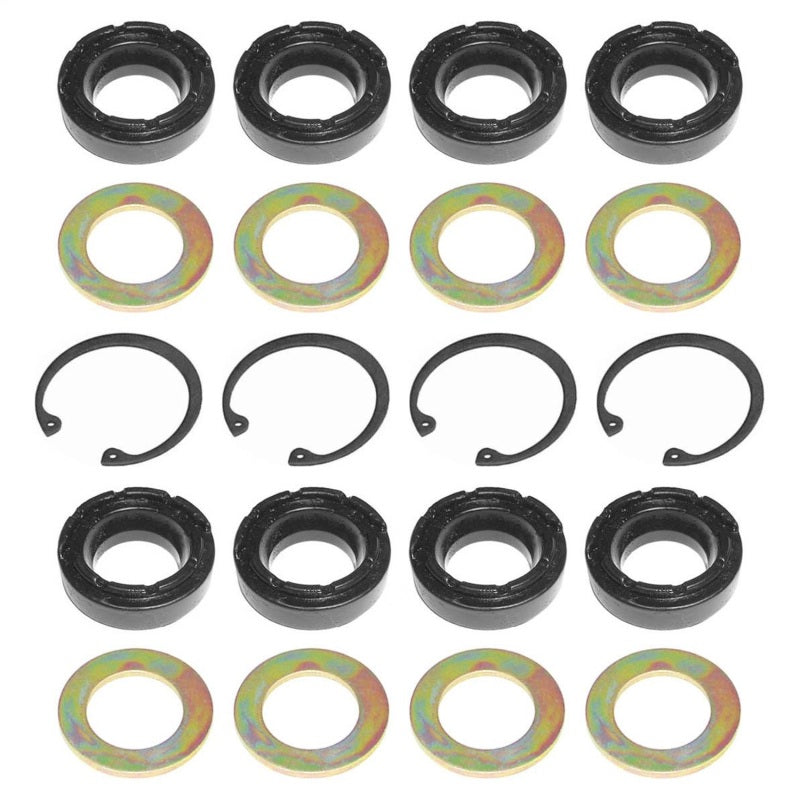

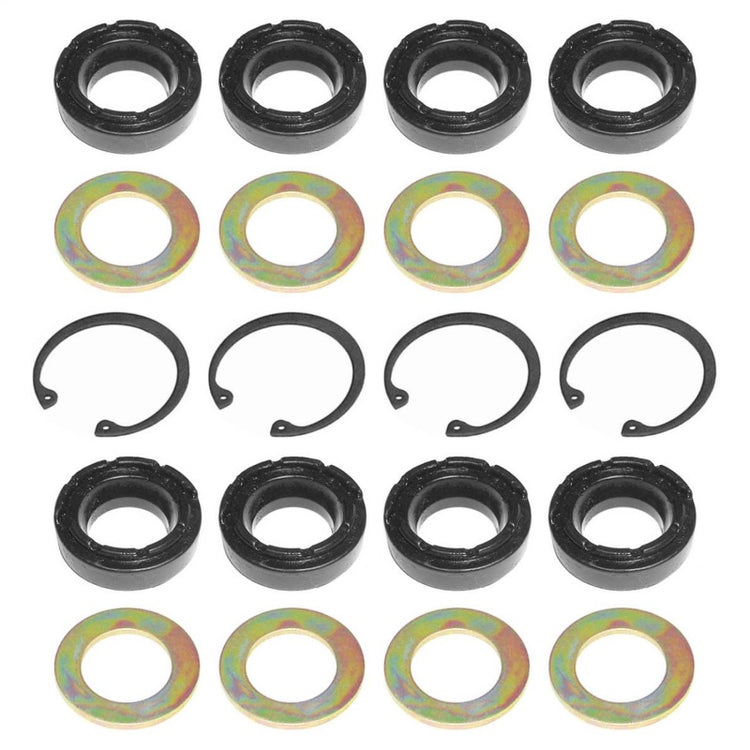

What's Included
- Eight urethane Johnny Joint bushings
- Four 0.112-inch side retaining washers
- Four 0.122-inch side retaining washers
- Four snap rings
Universal Application
This RockJock rebuild kit services only standard-width 2-inch Johnny Joint bodies with a 1.45-inch body width. Confirm the existing joint dimensions before ordering.
Application Notes
- Universal service part for standard-width 2-inch Johnny Joint bodies only. Confirm body width before ordering.
- Use non-synthetic hi-moly grease and a hand-pump grease gun. Do not use pneumatic or electric grease guns, and do not over-grease.
Frequently Asked Questions
How many joints can this kit rebuild?This package contains four complete rebuild kits.
Which Johnny Joint body does it fit?It fits a standard-width 2-inch Johnny Joint body that is 1.45 inches wide.

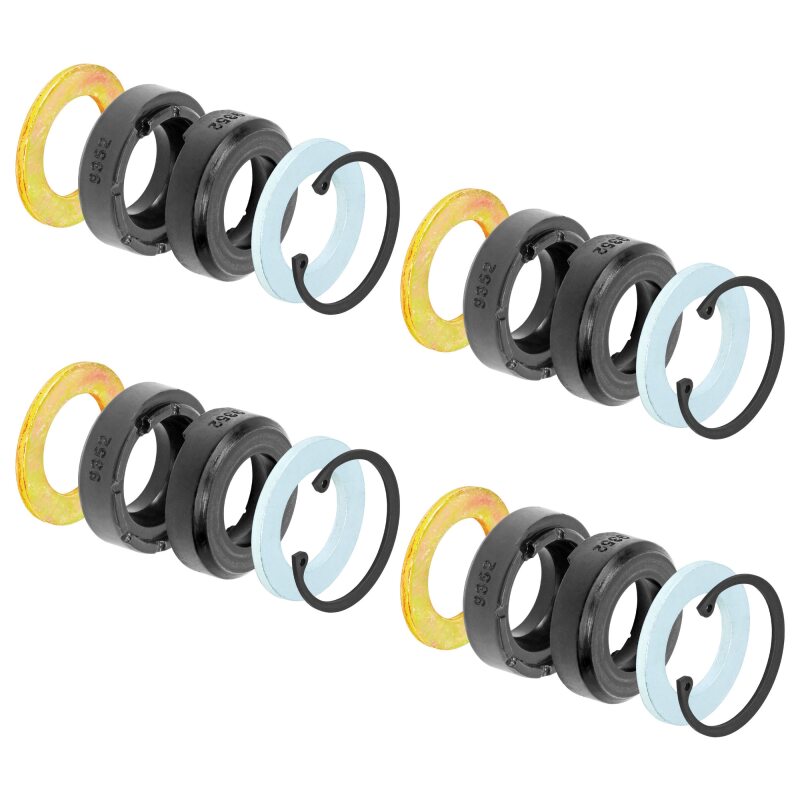

What is included for each rebuild?Each rebuild uses two urethane bushing halves, two retaining washers, and one snap ring.
What grease should be used?RockJock specifies non-synthetic hi-moly grease applied with a hand-pump grease gun.
Installation Notes
Disassemble and rebuild only a compatible standard-width 2-inch Johnny Joint body. Install the bushing halves, correct washers, and snap ring in the intended order. Grease with non-synthetic hi-moly grease using a hand-pump gun only.
